Specifications

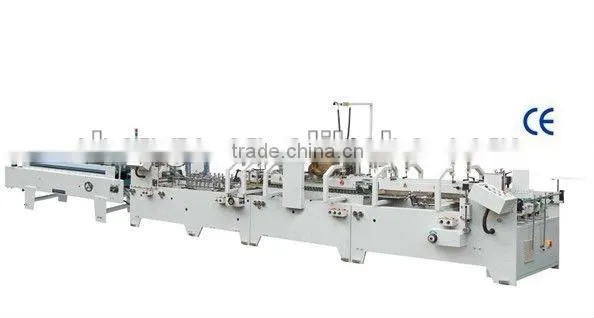

folder and gluerName:GFG Pre-folder & Lock bottom Automatic Folder Gluer
folder and gluer
GFG modal Paste box machine belongs to the equipment with four-folded/edged-bottom The machine is able to 2-folding, 4-folding with bottom gluing. In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree or 150 degree. The second fold and the fourth fold can be molded in 180 degree; the special design is also available. Use of imported electrical appliances, and accessories for export Before and after the single inverter separate operation. Speed, reasonable structure, convenient and flexible operating characteristics It is suitable for the paste process,such as the edged-medicine box,wine box,cosmetic box CD box and French fries box etc .As well as pasting the paper box without edged-bottom.
Major technical index
GFG-800
Type of boxex | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
No-edged bottom box | 700mm | 70mm | 620mm | 110mm | 8mm | 70mm | 51mm |
Edgde Bottom box | 700mm | 160mm | 480mm | 180mm | 9mm | 90mm | 85mm |
GFG-1200
Type of boxex | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
No-edged bottom box | 700mm | 70mm | 840mm | 110mm | 8mm | 70mm | 51mm |
Edgde Bottom box | 700mm | 160mm | 800mm | 180mm | 9mm | 90mm | 85mm |
GFG-1300
Type of boxex | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
No-edged bottom box | 700mm | 70mm | 940mm | 110mm | 8mm | 70mm | 51mm |
Edgde Bottom box | 700mm | 160mm | 900mm | 180mm | 9mm | 90mm | 85mm |
Characteristics
Max linear velocity | 0~250m/min |
Suitable paper quality | 220~800g/m2 Cardpaper and E wave corrugated paper. |
Paste box basic form | One-side edge pastes, two-side edge pastes, base pastes Both sides are folded, both sides are pre-folded.in Order to convenient to paste |
Way of folding in reverse | One and three edge fold 90o ,two and four fold 180o |
Feeding way | Automatically and continuously feeding |
Adhesive | Solute type |
Needed power | 7.5KW 380V |
Overall Size | 9500x1100(1300)(1400)x1350mm |
folder and gluer
