SFG-E Automatic Pizza Box Making Machine

SFG-E Automatic Pizza Box Making Machine photo-1
SFG-E Automatic Pizza Box Making Machine photo-2
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, Folder Gluer
Processing Type:
Other, Folder Gluer
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO /SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, Folder Gluer
Processing Type Other, Folder Gluer
Place of Origin Zhejiang, China
Brand Name CHANGS
Model Number SFG-E
Voltage 380V
Power(W) 7.5KW
Dimension(L*W*H) 10300mmX1000(1300)mmX1350mm
Weight 2500kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

SFG-E automatic pizza box making machine SFG-E automatic pizza box making machine

Product description:

SFG-E series is a new cost-effective and high-speed automatic crash lock-bottom prefold folder gluer, and belongs to the four-folding lock bottom equipment. With attractive appearance,it allows paper boxes to be easily filled and opened. An individual frequency converter is arranged at the front and rear of the folder gluer for more easy delivery of paper. Therefore, it is really a more cost-effective and practical model, being specially used for corrugated boxes, such as wine bottle boxes. It features trumpet-free mouths, strong adhesive properties, and crevasse- and crack-free characteristics,etc. It can process at least 15,000 corrugated boxes hourly. It can also be used for gluing various hotel supplies boxes,medicine boxes, cosmetic boxes, and other lock-bottom and non-lock-bottom paper boxes.

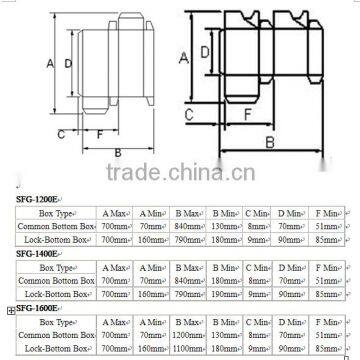

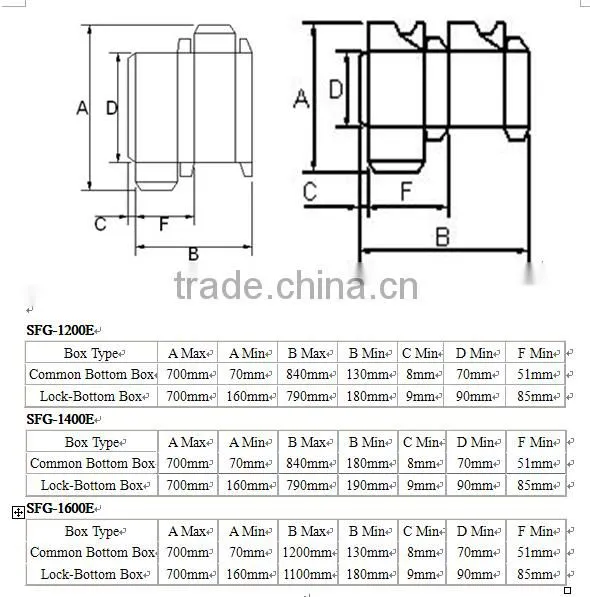

Main technical parameters:



SFG-E automatic pizza box making machine            SFG-E automatic pizza box making machine

                   Common box sample                                        Lock-bottom box sample



SFG-1200E

Type of corrugated box A max. A min B max B min C min D min F min
Common box 700mm 70mm 840mm 130mm 8mm 70mm 51mm
Lock-bottom box 700mm 160mm 790mm 180mm 9mm 90mm 85mm



SFG -1400E

Type of corrugated box A max A min B max B min C min D min F min
Common box 700mm 70mm 840mm 180mm 8mm 70mm 51mm
Lock-bottom box 700mm 160mm 790mm 190mm 9mm 90mm 85mm



SFG -1600E

Type of corrugated box A max A min B max B min C min D min F min
Common box 700mm 70mm 1200mm 130mm 8mm 70mm 51mm
Lock-bottom box 700mm 160mm 1100mm 180mm 9mm 90mm 85mm



Technical features

Line velocity    Continuously adjustable at 0 - 220m/min
Applicable paper 220 - 800g/m² paperboard, E type corrugated paper and F type corrugated paper
Basic form of corrugated box The first and third lines of the corrugated box are pre-folded, polished and glued for molding.
Paper feeding way Automatic and continuous paper feeding
Use of adhesive Solute type
Required power supply AC380,7.5KW
Weight 2500kg
Size 10300mmX1000(1300)mm×1350mm
Counting range 0~999999 Pcs(Automatic counting)
