Application:

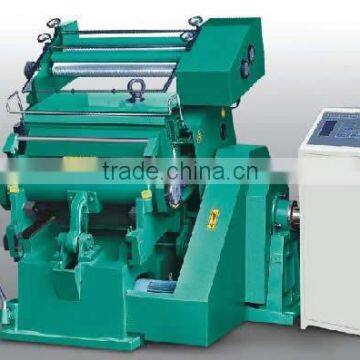

TMYB Serial computerized Hot stamping and Die cutting Machines are new generation products with high precision and marked effect. They are used for hot stamping all kinds of colored aluminum foil and embossing upon pictures, advertisement samples, trade mark, covers of books, season greeting cards, packaging cartons, and high grade decoration and printing materials,etc.The suitable materials are including paper,cardboard,plastics and leather,etc.,So that they are ideal equipments for printing. Packaging and plastics fields.
Features:
* High strength due to one piece casting by using top-ranking material for machine body.
* Single plate electromagnetic clutch is sensitive and reliable.
* Computer controlled is stable.
* Operation position is reasonably arranged,moving-bed can be opened to its optimum.
* Skipping is accurate,so as to save foils.
* With three functions of continuous creasing and cutting,openingd well operation and closing dwell operation and a large dwell adjusting range.
*Safety system is reliable.
* Central lubrication system guarantees fine lubrication and reduce friction.
Model | TYMB1100 | TYMB1040 | TYMB750 | TYMB930 |
Max.Platen area available | 1100*800(mm) | 1040*720(mm) | 750*520(mm) | 930*670(mm) |
Max.Stamping area available | 1100*800(mm) | 1040*720(mm) | 750*520(mm) | 930*670(mm) |
Range of skip order | Built-in Processing With Computer | Built-in Processing With Computer | Built-in Processing With Computer | Built-in Processing With Computer |
Working pressure | 120(T) | 120(T) | 60(T) | 100(T) |
Foil-delivered length | 800(mm) | 720(mm) | 520(mm) | 670(mm) |
Foil-delivered group | 3(groups) | 3(groups) | 2(groups) | 3(groups) |
Working speed | 1200(strokes/h) | 1200(strokes/h) | 1500(strokes/h) | 1320(strokes/h) |
Main motor power | 5.5(kw) | 5.5(kw) | 2.2(kw) | 4(kw) |
Total power | 17.5(kw) | 15.5(kw) | 10(kw) | 12(kw) |
Net weight | 4700(kg) | 4400(kg) | 2500(kg) | 3500(kg) |
Dimension (L*W*H) | 1950*1950*1850(mm) | 1900*1800*1800(mm) | 1360*1640*1600(mm) | 1760*1670*1700(mm) |
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
