Specifications
PVC granulating production line1.easy to operate
2,high production capacity
3,efficiency
100-120kg/h PVC granules production line with competitive price
Principle and applications:
1. Increasing the operation variables and realizing the process because of two-stage machine
2. High effective and production capacity
3. Good at process heat-sensitive material and devolatilization operation, Such as PVC, XLPE
4. Zero halogen cable, shield material, carbon black etc.
5,The plastic granule is even ,dense and of nice appearance.Assessorial equipment adopts mould surface for granule cutting ,gathers material by wind and use vibration seperate cooling .Its characteristics include high-degree automation ,excellent production efficience ,etc.
Main technical parameter
Type | SJSZ51 | SJSZ65 | SJSZ80 | SJSZ92 |
Diameter of screw(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
Pellet(mm) | 3-4 | 3-4 | 3-4 | 3-4 |
Power of main motor(kw) | 22 | 37 | 55 | 110 |
Output(kg/h) | 100-120 | 220-280 | 320-450 | 650-800 |

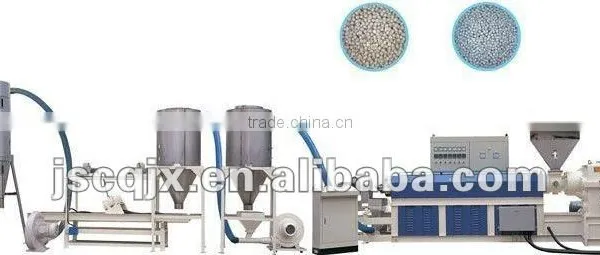

1. This PVC granulation production line is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC,PE raw materials with wood powder or other additives.
2. The pellets produced by this machine is evenly, solid, elegance.
3. The pelletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This pelletizing downstream equipment has the features of high automation and high production efficiency.
4. The screw and barrel, made of 38CrMoAlA , are made through smithing, tempering, double aging, nitriding treatment. Differences from others: screw edge is tempered after rough finish with good harden ability, and double aging reduce efficiently stress. Meanwhile, through accurate processing, phases of the screw edges have small error. The barrel and screw have high universal property. The structure of screw is different to different materials.
