2013 Hot Recycled PET Granules Machinery

2013 Hot Recycled PET Granules Machinery photo-1
US$ 30,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Recycling Granulator
Capacity:
100-500kg/h
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Recycling Granulator
Capacity 100-500kg/h
Place of Origin Jiangsu, China
Brand Name BE
Model Number granulater machinery
Material PET
Screw Design Double
Voltage 380V-600V
Power 150KW
Dimension(L*W*H) 30MX5MX3M
Weight 8000KG
Certification CE ISO
Warranty 12MONTHS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

recycled pet granules
1.Capacity:100kg/hr-500kg/hr
2.Parrel twin screw extruding pelletizing
petitive price

recycled PET Granules Machinery



PET flakes granulation production line



Features of Plastic Recycling PET Granules Price:



This series of extruders are specially designed for PET bottles, flakes, PVC, Plastic sheets and other crushed materials, with good performance, high output, less power consumption cost per kilogram, and easy to operate.







Application of Plastic Recycling PET Granules Price:



PET flakes granulation production line is applied in PET waste flakes pelletizing field. Through extrusion, cutting and dry process, the waste bottle will become to be pellets.  The pellets are widely used in plastic industry, like sheet, and profile production. From feeding system to final products, we can design and work out a complete system to satisfy all of your production requirements.



We will provide you with a pelletizing system in good quality and price as per your requirements.







Technical parameters of Plastic Recycling PET Granules Price:



Screw diameter

(mm)

L/D

Capacity

(kg/h)

Main motor power

(kw)

Agglomerator power

(kw)

Line length

(m)

51/105

16-63

80-120

18.5

50

22

65/132

75-160

200-250

37

100

22

65/132

110-250

200-250

37

120

30

80/156

160-315

300-400

55

200

30

80/156

200-450

300-400

55

220

36

92/188

315-630

400-800

90

350

42







  Production show:

2013 hot recycled PET Granules Machinery

2013 hot recycled PET Granules Machinery2013 hot recycled PET Granules Machinery2013 hot recycled PET Granules Machinery2013 hot recycled PET Granules Machinery



2013 hot recycled PET Granules Machinery2013 hot recycled PET Granules Machinery

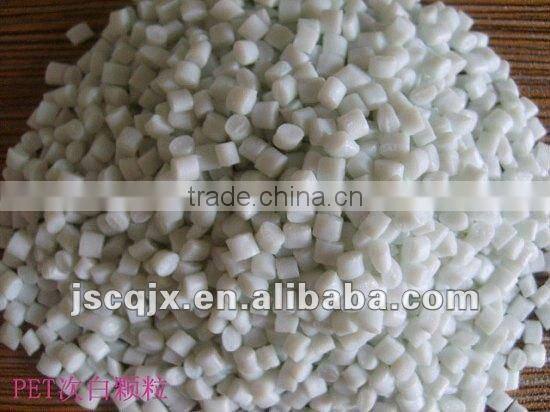

recycled pet granules

 2013 hot recycled PET Granules Machinery
