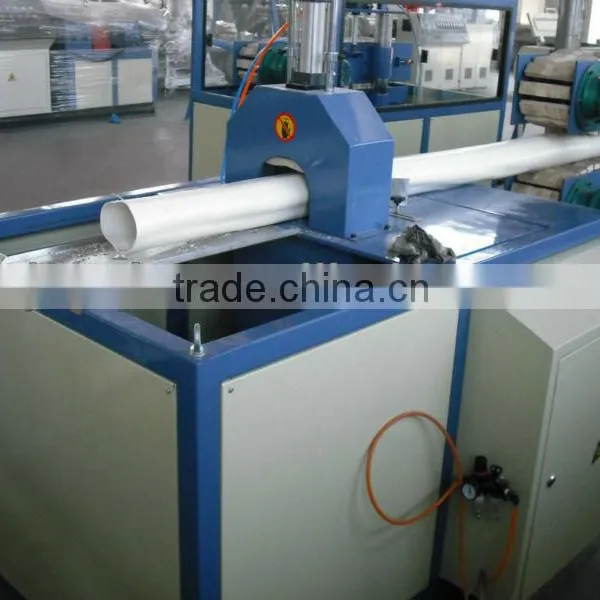

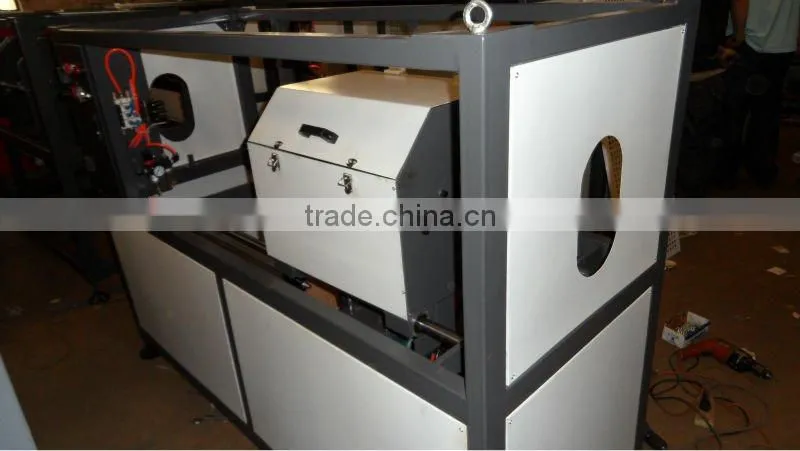

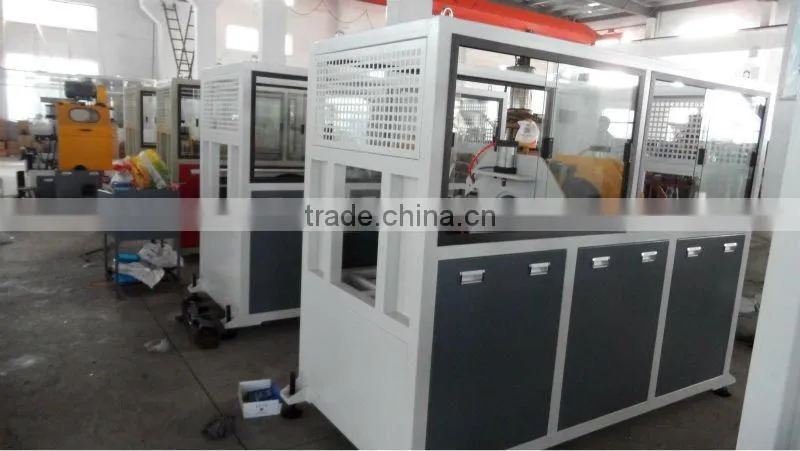

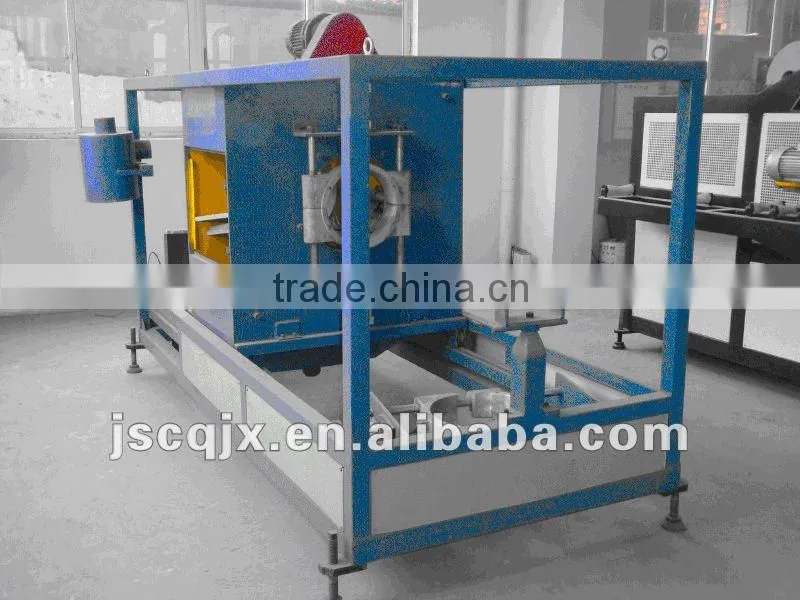

Automatic Plastic Pipes Cutting Machine

Automatic Plastic Pipes Cutting Machine thumbnail-1
Automatic Plastic Pipes Cutting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Plasma Cutting Machine
Application:
pipe,Upvc,tubular
Contact Supplier Request Quote Chat Now
Zhangjiagang City B
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Plasma Cutting Machine
Application pipe,Upvc,tubular
Place of Origin Jiangsu, China
Brand Name CQ
Model Number cutting machine
Rated Power 7.5kw
Saw Blade Diameter according pipe diameter
Dimensions 1500x1000x1600mm
Voltage 220v-600v
Power(W) 7.5kw
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

plastic automatic cutting machine
1.advanced design
2,easy operation
3,high efficience
4,low energy consumption

Plastic Pipes Cutting Machine

SpecificationsMain Techical Standards of WQG chipless Cutter:



Model WQG75 WQG110 WQG160
Motor power 1.1kw 1.5kw 1.5kw
Voltage 380V/50Hz 380V/50Hz 380V/50Hz
Cutting blade 55mm 75mm 85mm
Cutting length 600mm 700mm 700mm
Cutting demension 20-75 32-110 50-160
Apperance 1700X1000X1400 2200X1000X1400 2500X1100X1600



 Main Techical Standards of QG Cutter:



Model QG80 QG110 QG160
Saw diameter: mm 350 350 400
Max. cutting diameter: mm 80 110 160
Rotary speed of saw: mm 2800 2800 2240
Moter power: KW 1.1 1.1 1.5
Longitudinal moving distance: mm 400 400 400
Appearance size: mm 1100X850X1600 1120X920X1650 1420X1030X800
Weight: kg 500 600 700



  Main Techical Standards of Rotary Cutter:



Model HQG250 HQG400
Main motor power: KW 0.55 0.75
Saw motor power: KW 1.5 2.2
Advancement motor: KW 1.1 1.5
Saw diameter: mm 150 250
Max. cutting diameter: mm 250 315-400
Appearance size: mm 2700X1300X1700 3200X1850X2100
Weight: kg 900 1800



 Automatic Plastic Pipes Cutting Machine

 Automatic Plastic Pipes Cutting MachineAutomatic Plastic Pipes Cutting MachineAutomatic Plastic Pipes Cutting MachineAutomatic Plastic Pipes Cutting Machine

Feature:
1)It is mainly used in cutting plastic products,plastic pipes like PVC/UPVC pipes, HDPE/PP/PPR pipes,plastic profile,such as window profile, cable trunk,WPC goods and so on
2)The cutting of the products, cut sections smoothing products,thus saving products, raw materials, but also conducive to products with the corresponding pipes connector.
2)The cutting of the products at the line can be carried out simutaneously at any time,you can cut  at any time of sampling a section of pipe when not on the production line
3)Cutting the process smooth.and you can adjust the speed of the cutter according to your needs.
4)High automation, high cutting quantity and appearance is beautiful









Automatic Plastic Pipes Cutting MachineAutomatic Plastic Pipes Cutting MachineAutomatic Plastic Pipes Cutting Machine
