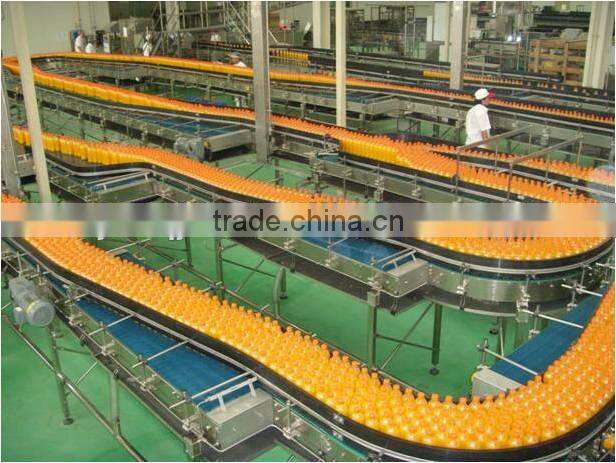

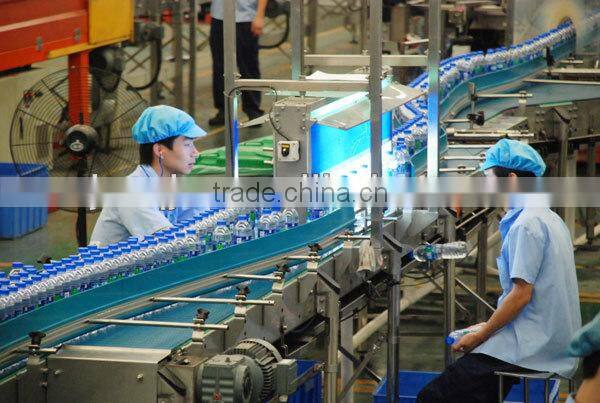

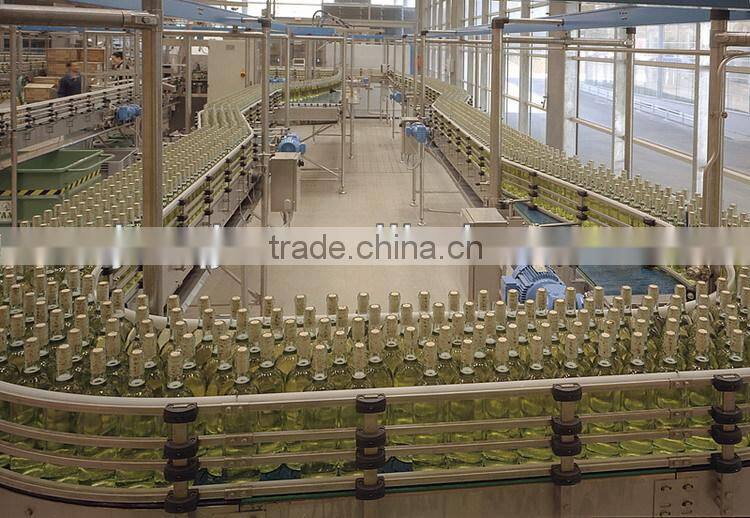

Bottle Conveyor Belt for Production

US$ 1,000 - 1,000 MOQ: 1 Meter

Key Specifications

Condition:

New

Type:

Other

Material:

Stainless Steel

Zhangjiagang City B

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other

Material Stainless Steel

Material Feature Fire Resistant

Structure Belt Conveyor

Load Capacity 9000b/H-3000b/h

Place of Origin Jiangsu, China

Brand Name BE

Model Number SSJ

Voltage 380v

Power(W) According customer requirment

Dimension(L*W*H) According customer requirment

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Bottling conveyor belt
1.Material:SUS304 stainless steel
2 Bottle conveyor
3.Suit for many kinds of bottles

Bottling conveyor belt

1)Side board:304 stainless steel Thickness 2.5mm,Height≥160mm.

2)Motor:SEW

3) Belt:Reggina belt

4)Bearing:SU 304 Cover,NSK bearings

5)Transducer:Schneider

6)PLC:Schneider

7)Approaching switch:Omron

8)Electrical cabinet:Carbon steel spray

Electrical part requirement

NO	Technical requirement
2.1	PLC full automatic control
2.2	Adopts helical turbine reduction motor, all motors are variable frequency speed motor IP55, insulation level: F
2.3	Electric closet uses spray carbon steel material and meets IP54 function. The material is suitable for sealing completely. The main line should enter in from the below of the electric closet. 3 phase + midline + landlines. Above the ground 150 mm.
2.4	All the motors adopt 2.5 mm four core cable, using gray blue line 0.5 mm
2.5	All wires go into the motor through trunking which is made of 1.2 mm 304 stainless steel
2.6	The installation of trunking is higher than conveying chain below
2.7	Wire qualification slots, through 20 mm stainless steel tube connects motor sensor, connect the sensor joint rapid joint, can not directly bound docking. Transmission line or switch fuse must be of the waterproof connector
2.8	All the electrical components to have marking, the line number
2.9	No single part in changing the pressure set separate start stop reset switch.
2.10	The whole line in personnel accessible area (the operator) to arrange a sudden stop switch, alarm lamp. Electricity installation party on 3 association-like signal lamp, and high alarm (85 dB above), must achieve fault alarm
2.11	The cupboard door should paste English marked electricity safety tips logo.
