Whole sale price PET bottle blow moulding machine/uint
- 1 Set / Sets per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | No | Place of Origin | Jiangsu, China | |
| Brand Name | CQ | Model Number | HY-II PET bottle blow moulding machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

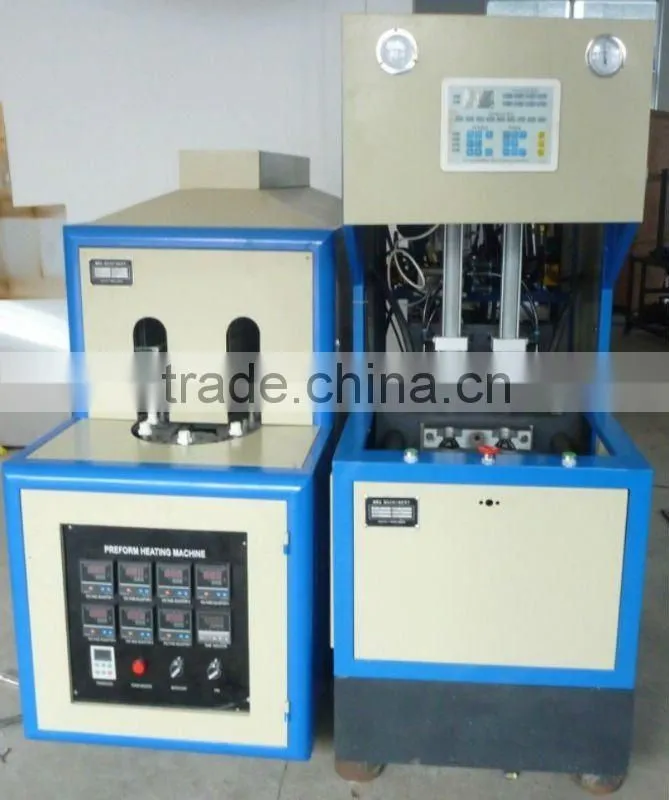

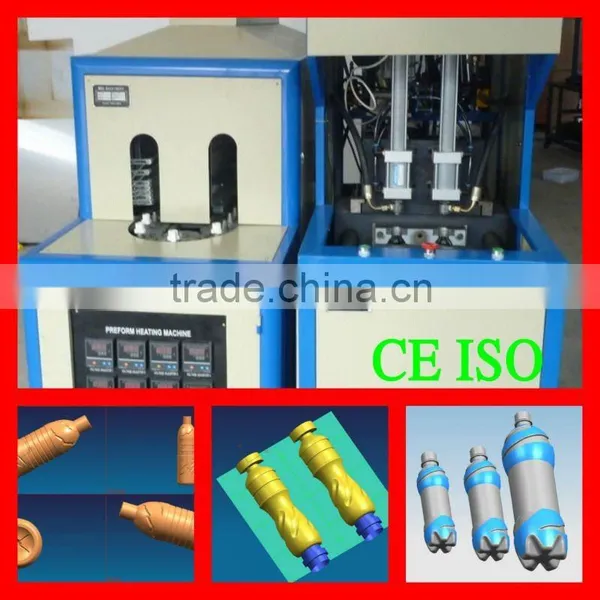

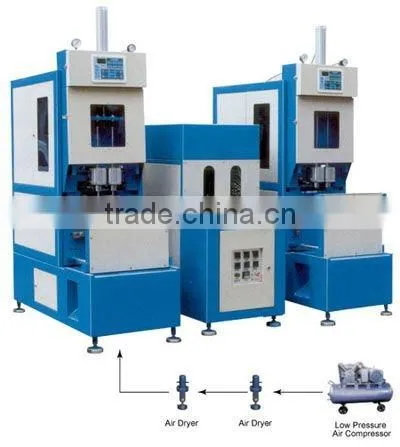

PET BOTTLE blow moulding machine
capacity:1600BPH
bottle volume:100-2000ml
control:semi-auto
bottle material:pet pp pe
Specification:
Name | Item | Unit | Details |
Blowing machine | Dimension | mm | 1600*600*1610mm |
Weight | kg | 500 | |
Bottle volume (max) | ml | 2000 | |
Bottle volume (min) | ml | 50 | |
Bottle Neck Diameter (max) | mm | 40 | |
Bottle Neck Diameter (min) | mm | 18 | |
Body Diameter (max) | mm | 125 | |
Body Height( max) | mm | 420 | |
Number of Cavities | mold | 2 | |
Production output | pcs/h | 1600-1800BPH | |
Clamping force | T | 5.7(56KN) | |
Space between Tie-bars | mm | 120-220 | |
Mold stroke | mm | 160 | |
Stretching stroke (max) | mm | 420 | |
Working pressure | Mpa | 0.8-1.0Mpa | |
Voltage/Power | V/KW | 220V/1KW | |
Weight | Kg | 500 | |
Pre-heater
| Dimension | mm | 1870*630*1450mm |
Weight | kg | 260 | |
Voltage/Power | V/KW | 380V/14KW |
