Home > Packaging & Printing > Packing Machinery > Filling Machine > Carbonated Drink Glass Bottle Filling Line(2000BPH)
US$ 20,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CQ
Model Number:
DCGF carbonated drink filling line
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Turnkey Complete PET Bottle Soft Water LineUS$ 20,000 - 150,000MOQ: 1 Set -
DCGF18-18-6 Automatic Bottling MachineUS$ 8,000 - 30,000MOQ: 1 Set
-
Monoblock Soda Water Filling MachineUS$ 8,000 - 30,000MOQ: 1 Set
-
DCGF-2000 Series Carbonated Water Filling MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
DCGF18-18-6 Carbonated Drink Complete LineUS$ 20,000 - 60,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
CQ
Model Number
DCGF carbonated drink filling line
Specifications
Carbonated Drink Glass Bottle Filling Line(2000BPH)bottle:300-1500ml
capacity:2000-20000BPH
PLC:Mitsubishi /motor:SIMENS
CE

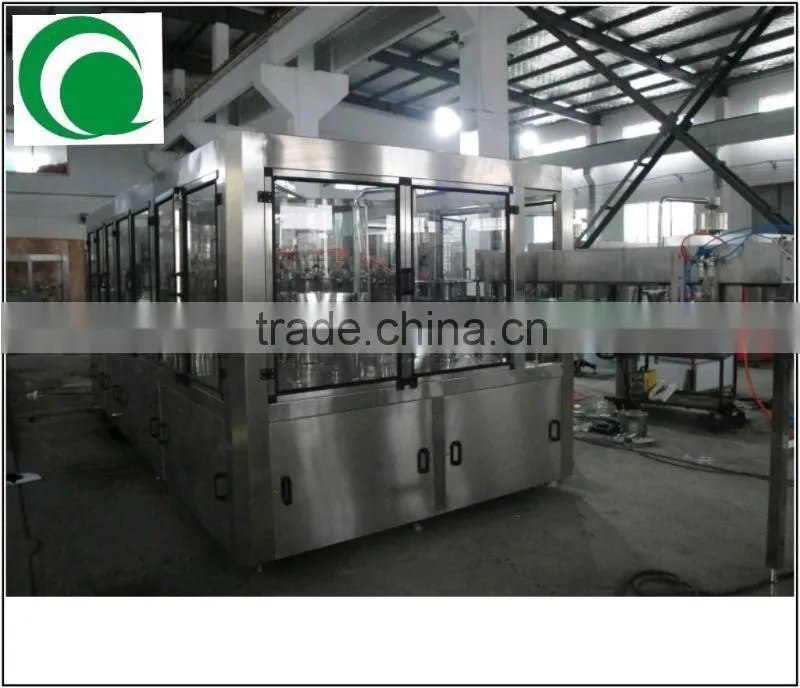

Carbonated Drink Glass Bottle Filling Line(2000BPH)
This series of machine intergrates washing, filling and capping in one unit and can be used for juice, tea and
milk production. With only a few of parts changed, it can be used for teaa and fruit juice filling. It adopts PLC control
and inverter are used in this machine.
Model | DCGF14-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-8 | DCGF40-40-10 |
Washing heads | 14 | 18 | 24 | 32 | 40 |
Filling heads | 12 | 18 | 24 | 32 | 40 |
Capping heads | 5 | 6 | 8 | 8 | 10 |
Capacity(b/h)500ml | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 |
Power motor(kw) | 4.68 | 5.18 | 6.58 | 8.18 | 9.2 |
carbonated drink filling line some pictures

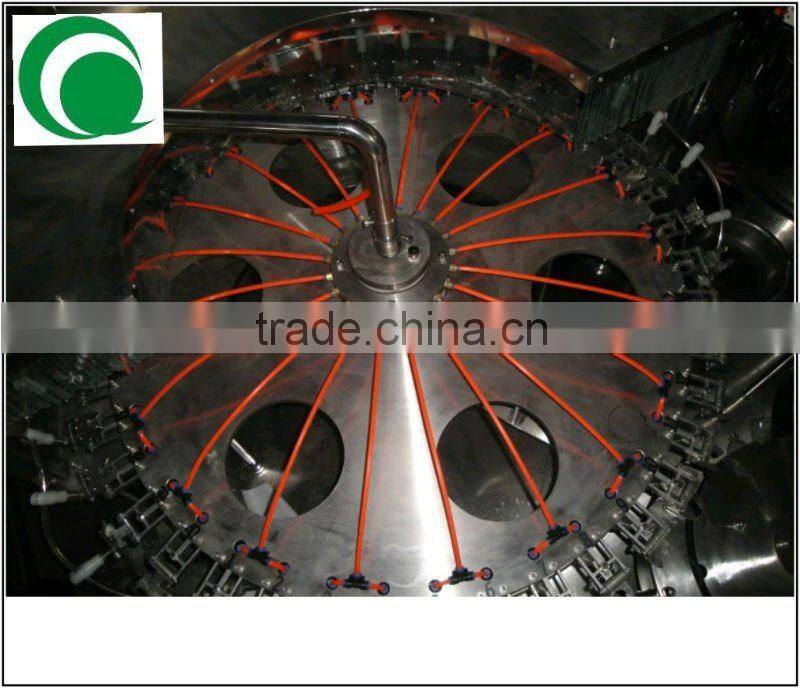

washing parts

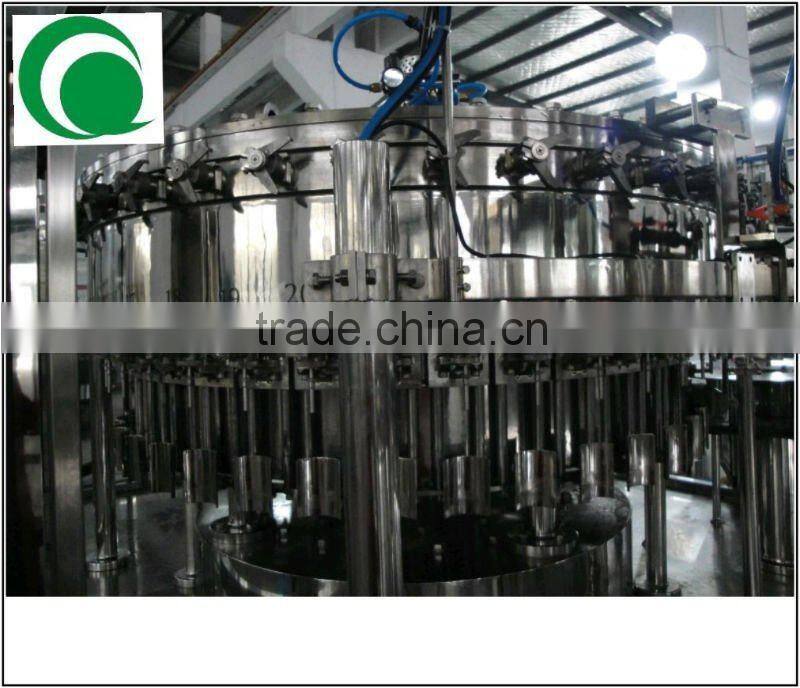

filling parts

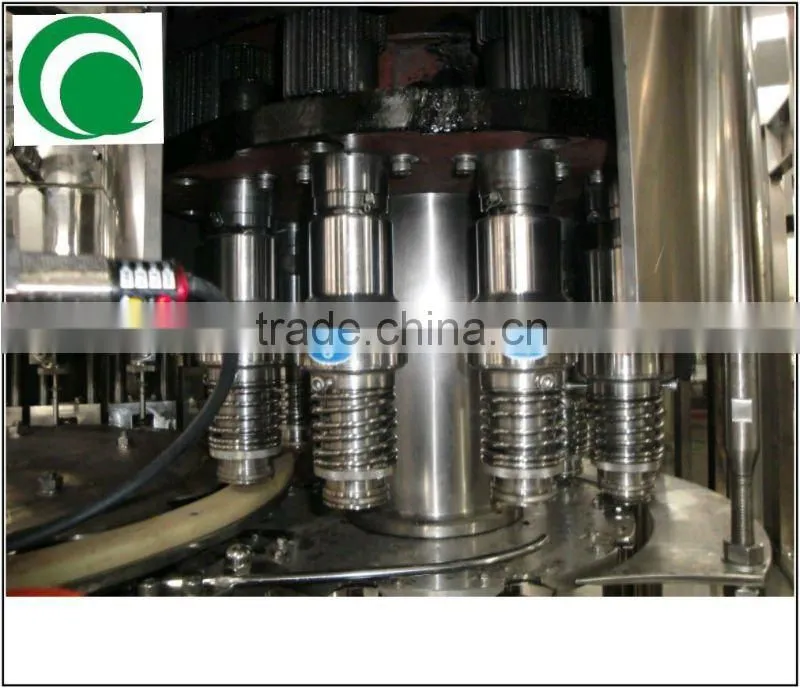

capper
carbonated drink filling line used to produce PET bottled carbonic beverages (soda) production, such as Coca-Cola, Fenda, Sprite and gas-bearing mineral water.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP loop and control procedures, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.
7. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
8. The machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP loop and control procedures, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.
7. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
8. The machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
IF YOU HAVE ANY QUESTIONS ABOUT THE carbonated drink filling line PLEASE CALL THE NUMBER BY YOU FEEL FREE 0086-512-58668982
