Home > Packaging & Printing > Packing Machinery > Filling Machine > Turnkey Complete PET Bottle Soft Water Line
US$ 20,000 - 150,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BE
Model Number:
DCGF14-12-5
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DCGF18-18-6 Automatic Bottling MachineUS$ 8,000 - 30,000MOQ: 1 Set -
Monoblock Soda Water Filling MachineUS$ 8,000 - 30,000MOQ: 1 Set
-
DCGF-2000 Series Carbonated Water Filling MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
DCGF18-18-6 Carbonated Drink Complete LineUS$ 20,000 - 60,000MOQ: 1 Set
-
2000BPH Automatic Bottling Soda Water LineUS$ 8,000 - 30,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BE
Model Number
DCGF14-12-5
Certification
CE ISO
Specifications
Sparkling Carbonated Water Filling Machine/Line1.model:DCGF14-12-5
3.CE ISO
4.Used for Soft drink water
5.material:ss304
Full Automatic Carbonated Water Filling Line / Complete Line
Products Introduction:
Drinking Water Production Line-user:

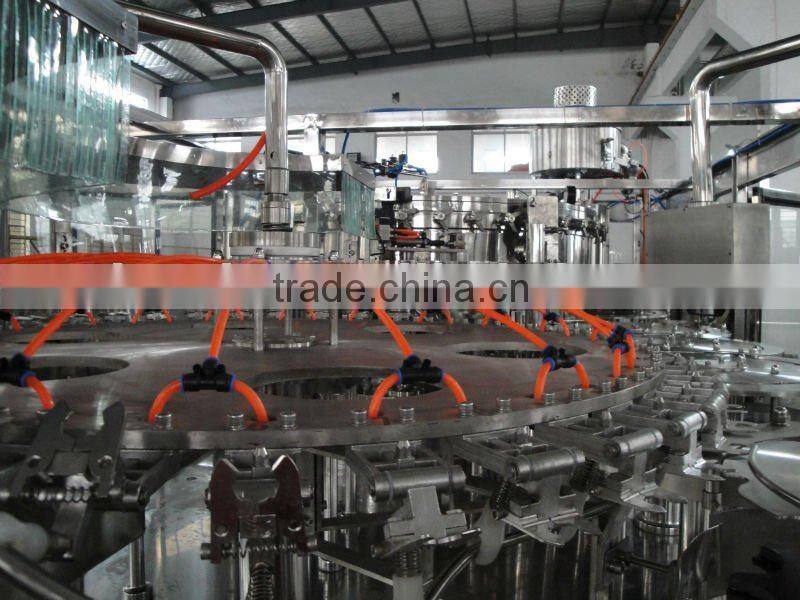

This DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Drinking Water Production Line-user:
This DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

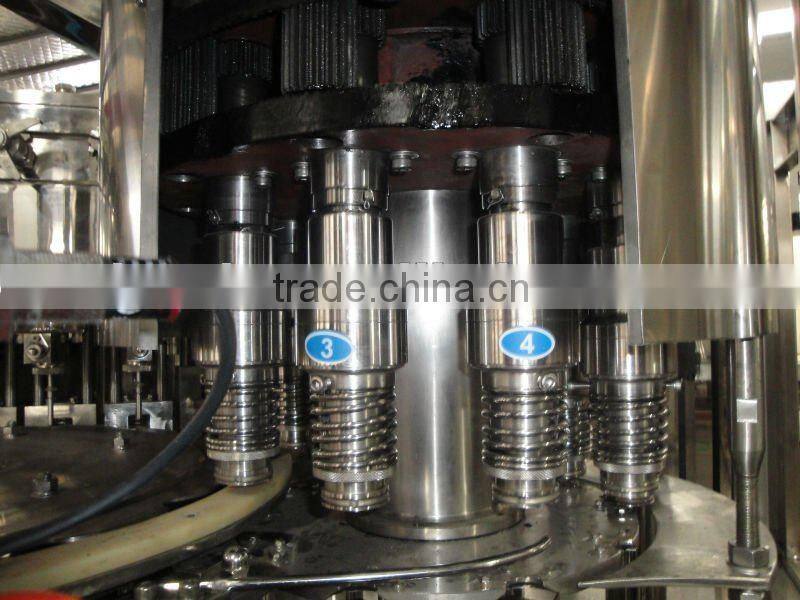

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
flow chart:
PET bottle production line : PET preform(Injection moulding machine) --Bottle blowing machine
Filling line :Water treatment system--Washing,filling,capping machine--Light checker--Sleeve labeling machine--Code sprayer--PE film Packing machine-Pallet stretch wrapper --stock
Technical parameters:
Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (KW) | Overall dimension (mm) |
CFG14-12-5 | 14 | 12 | 5 | 2000-4000 | 1.5KW | 2100x1400x2500 |
CFG18-18-6 | 18 | 18 | 6 | 5000-7000 | 2.2KW | 2460x1720x2650 |
CFG24-24-8 | 24 | 24 | 8 | 8000-12000 | 3KW | 3100x2100x2650 |
CFG32-32-10 | 32 | 32 | 10 | 12000-15000 | 4KW | 3500x2500x2650 |
CFG40-40-10 | 40 | 40 | 10 | 16000-20000 | 7.5KW | 4600x1800x2650 |
CFG48-48-12 | 48 | 48 | 12 | 20000-24000 | 9.5KW | 5200x4500x3400 |
CFG60-60-15 | 60 | 60 | 15 | 25000-30000 | 12KW | 6500x4500x3400 |
