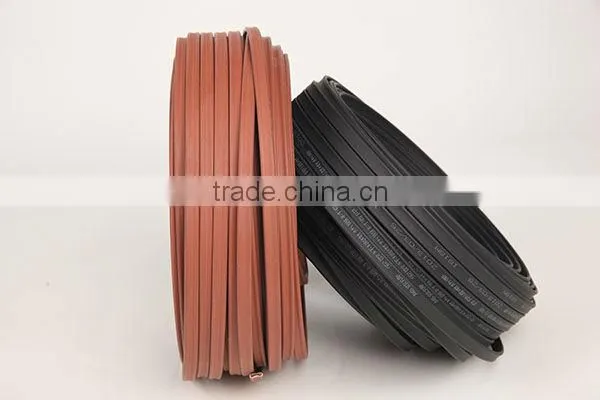

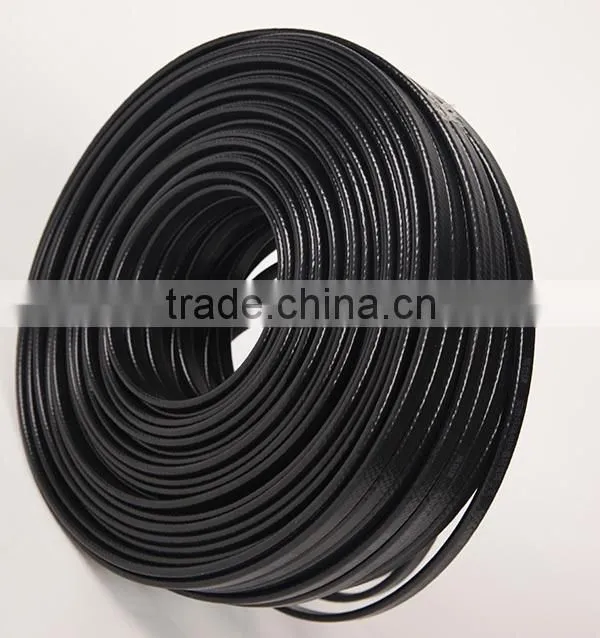

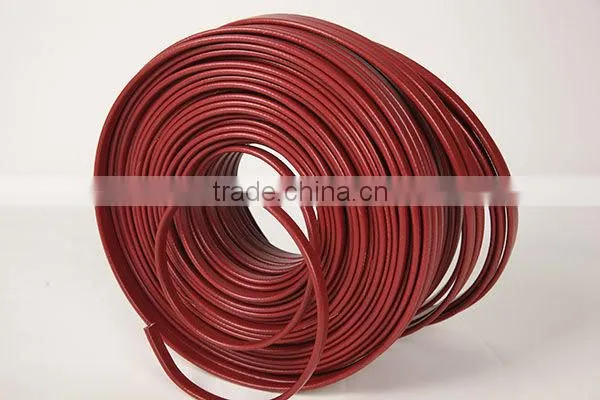

Heat resistant self regulating pipe insulation, roof snow melting silicone heating cable
-----------------------------------Product Detail---------------------------------

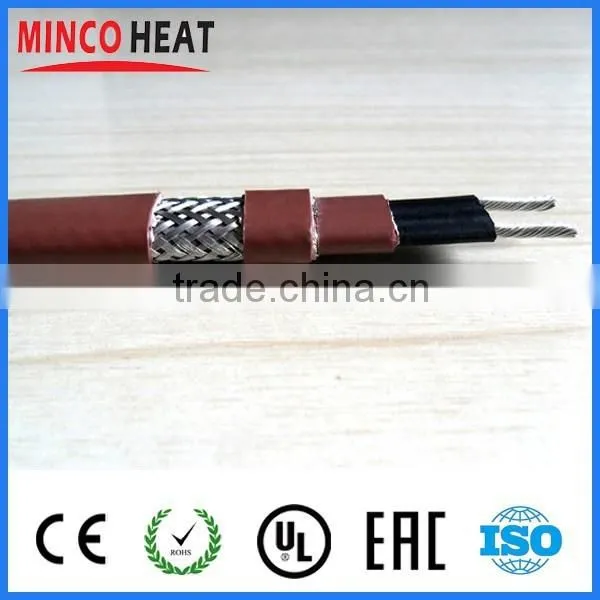

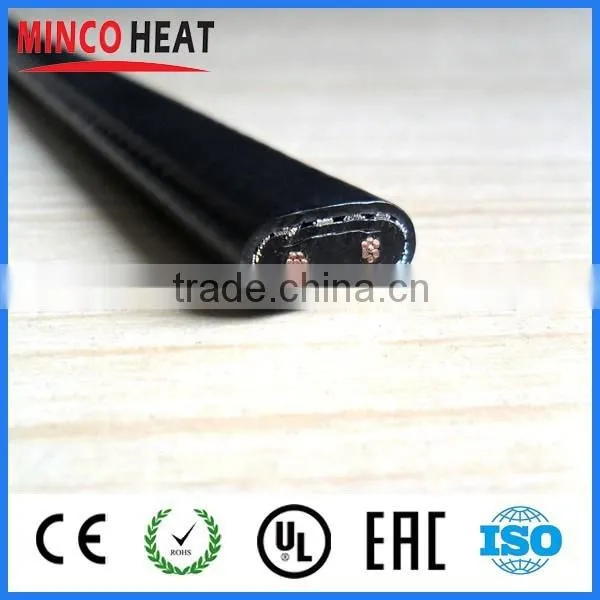

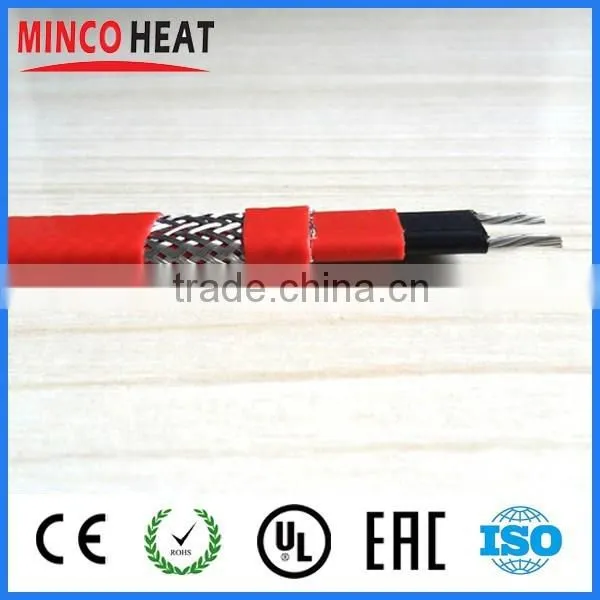

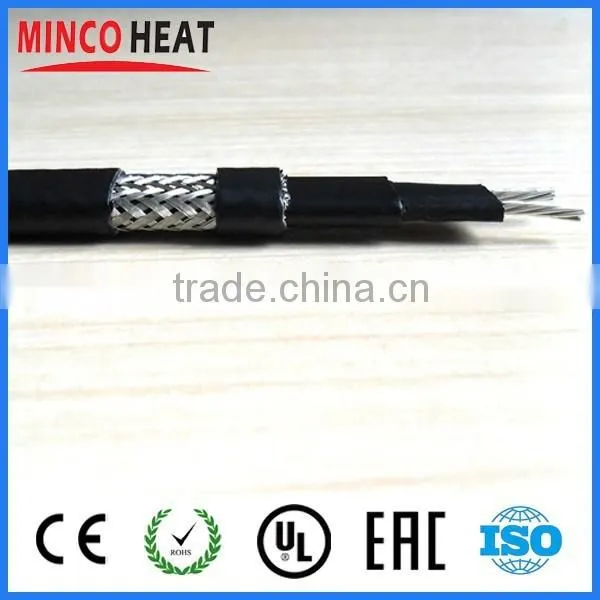

Electric self regulating heating cable Pipe heat tracing cable DWK-PF
Operate temperature |
Max maintain temperature:65°C |
Max withstands temperature:105°C | |
Max surface temperature: 65°C±5°C | |
Min installation temperature:-60 °C | |
Application fields |
Industry and construction fields tank and pipe heat tracing;indoor and outdoor heating systems, freeze protection and snow melting |
| Service voltage | 12,24,36,110,220,380V |
Output power |
10,20,25,30,35W/m |
|
Max resistance of braid |
18Ω/km |
| Thermostability | Recircling from 10~99°C 300 times, the quantity of heat maintains more than 90%. |
| Bend radius | 25.4mm at 20°C and 35.0mm at -30°C |
| Insulation resistance |
100m heating cable, test it with 2500VDC megger for 1min at 75°C, the min insulation resistance is 2100MΩ
|
| Ex-mark | ExellT6 |
Advantages of pipe heat tracing cable :
Safe: Heating cable high efficient and convient heating system.
Automatism: Heating cable self regulating measure the melting requirement, and timely adjust the temperature.
Uniform temperature: The whole cable's temperature is uniform, no over heat or burnout.
Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.
Eco-friendly: Our heating cable use the cleanest and most efficient power which are popular between customers.

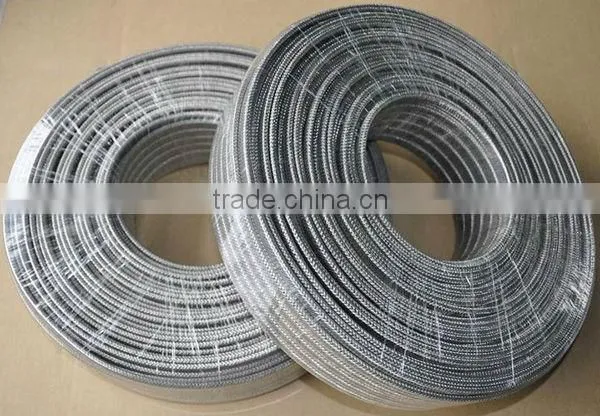

Durable: Thickened metal electromagnetic Shielded layer wrap-on heating cable, moisture proof, pressure proof, high resistance to penetration.
Warranty:Self regulating heating cable10 years quality guarantee
--------------------------------------Applications---------------------------------
In cold conditions, pipe easy to be freeze, and cannot be used properly , or even frost heave pipes to cause unnecessary trouble and loss, so we need some heat resource to supply extra temperature for pipe in order to prevent freeze.
Minco self regulating electric tracing heating cable widely used in the pipeline and storage tank of
fossil oil, chemical industry,steel,electric power industries etc, have the function trace pipeline and
keep warm, anti-freezing,those heating cable can be used in general area,danger area and
corrosion area, keep the medium temperature of pipeline from 0~65°C.

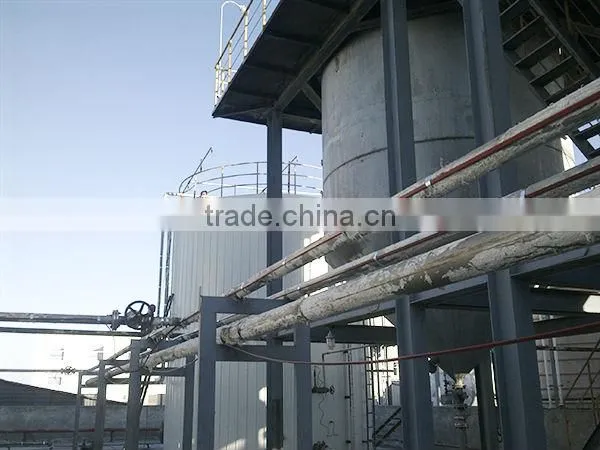

pipe heat tracing cable
Minco self regulating heating cables have found worldwide applications in industry pipes
and tanks heat tracing, indoor and outdoor heating systems, farming, control panel and electric
systems, providing the best heating, warming, freeze prevention and snow melting solutions.

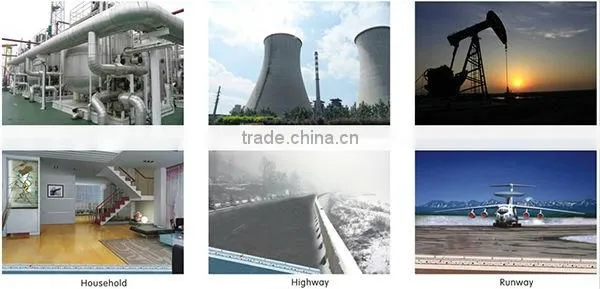

Heat tracing cable widely used in multi fields
---------------------------------------Real Us--------------------------------------
Delivery Details:
We will prepare shipping ASAP once we receive your money, and give you the tracking number after we send out your goods. Usually within 5-35 working days you can receive your item.
Normally, the cable will be packed by carton ot plactic spools. But, if you have any other requirements of package, we will try our best to satisfy you.
Payment methods |
Commission fee |
Arriving days afer paying |
|
No commission fee |
3-5 working days |
|
3.9%+0.3 usd |
Instant |
|
No commission fee |
Instant |
|
No commission fee |
Instant |
|
Alibaba calculate it |
Instant |
Installation Notes:
1) Don't damage cable. The bend radius should be more than 6 times of thickness of cable.
2) Well installation can guarantee the efficiency. Use nylon cable ties to fix heat cables.
3) Add an aluminum tape between the pipe and the heat cables if the Pipe is non-metallic.
4) After the installation, take a full test and make sure the system works well.
5) Heat insulation materials should be dry and the joint of cable should be sealed.
6) Make a mark on the outer protective layer of the pipe.
7) The junction box should be sealed to prevent rainwater.
8) For explosion-proof products, the metal jacket should connected to the terminal.
9) Protective sleeve must not be damaged during installation, and the core wire can not bare.
More high quality heating cable, please click: mkheatingcable.en.china.cn
