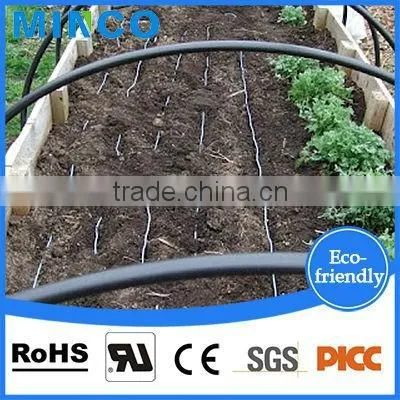

Greenhouse & Garden Soil Heating Cables

Specifications

220V underground electric heating cable
Eco-firendly
Energy-saving
OEM

                                       Greenhouse & Garden Soil Heating Cables





Description

     Minco heating cable is highly efficient, energy-saving, concealed low-temperature radiant soil warmming system. It is charcterized by green and environment-friendliness, energy conservation, low cost of installation and maintenance,etc.  It can be used for roof/gutter/walkway snow melting .Minco it's the best choice for you !



Structure







Heating wire:copper alloy wire

Series structure without  voltage drop;the temperature of whole cable is even.

Insulation material:cross linked polyethylene(XLPE)

 The long-term working temperature is 105°C,The instantaneous overload temperature is 205°C .

Ground wire:Tin plated copper

  8 tin plated copper wires with a diameter of 0.4mm

Shieldinglayer:Luminum foil

Thickened Aluminum composite membrane shielding layer can shield the

electromagnetic radiation effectively which already passed the American

electromagnetic radiation detection and the European U nion CE certification.

 Jacket:PVC

Antiseptic,waterproof and anti-aging



Details

Brand Name:Minco

Heating Cable Type:Single/Twin conductor cable

Model:TXLP/1,TXLP/2R

Linear Power:18.5W/M

Voltage:220V

Lifespan:50 years

Warranty:10 years

Certification:CE,GOST,ROHS,FIRE RESISTANT



Specification



TXLP/1 series single conductor Electric Heating Cable(220V 18.5W/M)
Power(W)	Cable model	Voltage(V)	Standard      length(M)	Power per  meter(W/M)	Total value of resistance(Ω)
3150	TXLP/2R/18.5	220	170.3	18.5	15.4
2800	TXLP/2R/18.5	220	151.4	18.5	17.3
2600	TXLP/2R/18.5	220	140.5	18.5	18.6
2400	TXLP/2R/18.5	220	129.7	18.5	20.2
2200	TXLP/2R/18.5	220	118.9	18.5	22.0
2000	TXLP/2R/18.5	220	108.1	18.5	24.2
1760	TXLP/2R/18.5	220	95.1	18.5	27.5
1600	TXLP/2R/18.5	220	86.5	18.5	30.3
1400	TXLP/2R/18.5	220	75.7	18.5	34.6
1200	TXLP/2R/18.5	220	64.9	18.5	40.3
1000	TXLP/2R/18.5	220	54.1	18.5	48.4
850	TXLP/2R/18.5	220	45.9	18.5	56.9
700	TXLP/2R/18.5	220	37.8	18.5	69.1
600	TXLP/2R/18.5	220	32.4	18.5	80.7
500	TXLP/2R/18.5	220	27.0	18.5	96.8
400	TXLP/2R/18.5	220	21.6	18.5	121.0
300	TXLP/2R/18.5	220	16.2	18.5	161.3



TXLP/2R series twin conductor Electric Heating Cable(220V 18.5W/M)
Power(W)	Cable model	Voltage(V)	Standard length(M)	Power per meter(W/M)	Total value of resistance(Ω)
3150	TXLP/2R/18.5	220	170.3	18.5	15.4
2800	TXLP/2R/18.5	220	151.4	18.5	17.3
2600	TXLP/2R/18.5	220	140.5	18.5	18.6
2400	TXLP/2R/18.5	220	129.7	18.5	20.2
2200	TXLP/2R/18.5	220	118.9	18.5	22.0
2000	TXLP/2R/18.5	220	108.1	18.5	24.2
1800	TXLP/2R/18.5	220	97	18.5	26.9
1600	TXLP/2R/18.5	220	86	18.5	30.2
1370	TXLP/2R/18.5	220	74.1	18.5	35.3
1250	TXLP/2R/18.5	220	67.6	18.5	38.7
1000	TXLP/2R/18.5	220	54.1	18.5	48.4
840	TXLP/2R/18.5	220	45.4	18.5	57.6
700	TXLP/2R/18.5	220	37.8	18.5	69.1
600	TXLP/2R/18.5	220	32.4	18.5	80.7
500	TXLP/2R/18.5	220	27.0	18.5	96.8
400	TXLP/2R/18.5	220	21.6	18.5	121.0
300	TXLP/2R/18.5	220	16.2	18.5	161.3



 Application





Advantges

Safe: High efficient and convenient heating system.

Automatism: Heating system can automatically (by thermostat)measure the heating requirement, and timely adjust the heating temperature.

Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.

Environmental: Our heating system use the cleanest  power which are popular between customers.

Spanlife:Almost 50m years.

Certifiction:CE,ROHS GOST,FIRE RESISTANT

Warranty:10 years



Installation



Tips

1). Heating cable fix materials: Aluminum tape.

2). Cross tube materials: Use steel or PVC tube.

3). Don't damage cable. The bend radius should be more than 6 times of thickness of  cable.

4). Heat insulation materials should be dry and the joint of cable should be sealed.
5). The junction box should be sealed.
6). Protective sleeve must not be damaged during installation, and the core wire  can not bare.

7). The heating cable should be installed accurately according to the design graphics.



Delivery deatails



    We will prepare shipping asap once we receive your money, nd give you the tracking number after we send out your goods. Usually within 5-35 working days you can receive your item. Please wait patiently!



Certifictions





Methods of Payment:



Payment methods	Commission fee	Arriving days afer paying
	No commission fee	3-5 working days
	3.9%+0.3 usd	Instant
	No commission fee	Instant
	No commission fee	Instant
	Alibaba calculate it	Instant



    Welcome! My friend! We are glad to customize your products according to your requests! We can give you a discount accroding to the quantity if you buy a largequantity. Welcome your request for quotation!
