Electrical House Wiring Floor Use Heating Cable
Product description:
Minco intelligent electric heating system is highly efficient, energy-saving, concealed low-temperature radiant soil warmming system. It is charcterized by green and environment-friendliness, energy conservation, low cost of installation and maintenance,etc. The good reason to rate is as the best choice to bring you enjoying walking and safety when going outside!
Details:
Brand: Minco Type:Low voltage twin conductor heating cable Linear Power:18.5W/M
Voltage:220V Color:Blue Warranty:10 years Life span:50 years
Certification:CE,GOST,ROHS,FIRE RESISTANT
Structure:
single conductor heating cable:
| 1.Heating alloy wire |
Series structure without voltage drop; the temperature of whole cable is even. |
| 2.Silane crosslinked polyethylene insulation |
The long-term working temperature is 105°C The instantaneous overload temperature is 205°C |
| 3.Ground wire | 8 tin plated copper wires with a diameter of 0.4mm |
| 4.Thickened metal electromagnetic shielding layer | Thichened Aluminum composite membrane shielding layer can shield the electronmagnetic radiation effectively which already passed the American electronmagnetic radiation detection and the European U nion CE certification. |
| 5.Flame-retardant PVC sleeves | Safe and environmental |
Specifications:
TXLP/2R series twin conductor Electric Heating Cable(220V 18.5W/M) | |||||
Power(W) |
Cable model | Voltage(V) | Standard length(M) | Power per meter(W/M) | Total value of resistance(Ω) |
| 3150 | TXLP/2R/18.5 | 220 | 170.3 | 18.5 | 15.4 |
| 2800 | TXLP/2R/18.5 | 220 | 151.4 | 18.5 | 17.3 |
| 2600 | TXLP/2R/18.5 | 220 | 140.5 | 18.5 | 18.6 |
| 2400 | TXLP/2R/18.5 | 220 | 129.7 | 18.5 | 20.2 |
| 2200 | TXLP/2R/18.5 | 220 | 118.9 | 18.5 | 22.0 |
| 2000 | TXLP/2R/18.5 | 220 | 108.1 | 18.5 | 24.2 |
| 1800 | TXLP/2R/18.5 | 220 | 97 | 18.5 | 26.9 |
| 1600 | TXLP/2R/18.5 | 220 | 86 | 18.5 | 30.2 |
| 1370 | TXLP/2R/18.5 | 220 | 74.1 | 18.5 | 35.3 |
| 1250 | TXLP/2R/18.5 | 220 | 67.6 | 18.5 | 38.7 |
| 1000 | TXLP/2R/18.5 | 220 | 54.1 | 18.5 | 48.4 |
| 840 | TXLP/2R/18.5 | 220 | 45.4 | 18.5 | 57.6 |
| 700 | TXLP/2R/18.5 | 220 | 37.8 | 18.5 | 69.1 |
| 600 | TXLP/2R/18.5 | 220 | 32.4 | 18.5 | 80.7 |
| 500 | TXLP/2R/18.5 | 220 | 27.0 | 18.5 | 96.8 |
| 400 | TXLP/2R/18.5 | 220 | 21.6 | 18.5 | 121.0 |
| 300 | TXLP/2R/18.5 | 220 | 16.2 | 18.5 | 161.3 |
Advantages:
1.CE ROHS GOST and FIRE RESISTANT certificated.
2. 10 years warranty.
3. Almost 50 years lifespan.
4. A one-time investment, a lifetime of use.
5. Eco-friendly, energy saving and no noice.
6. Controlled by MINCO programmable thermostat
7. Order cable, send thermostat for free.
Application:

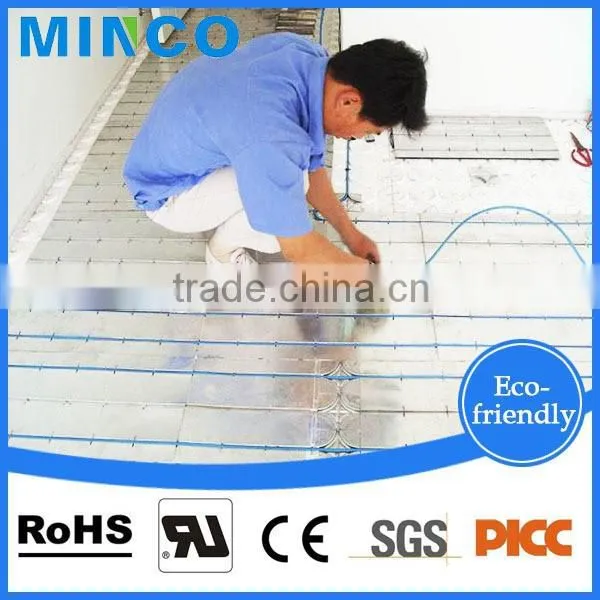

Floor heating

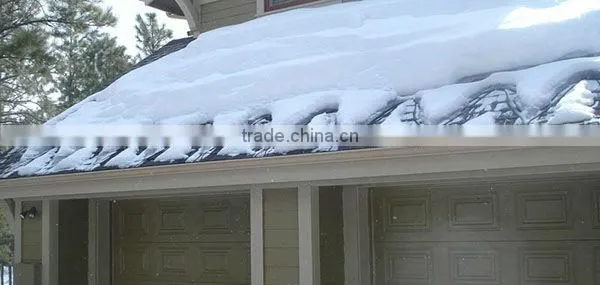

Snow and ice melting

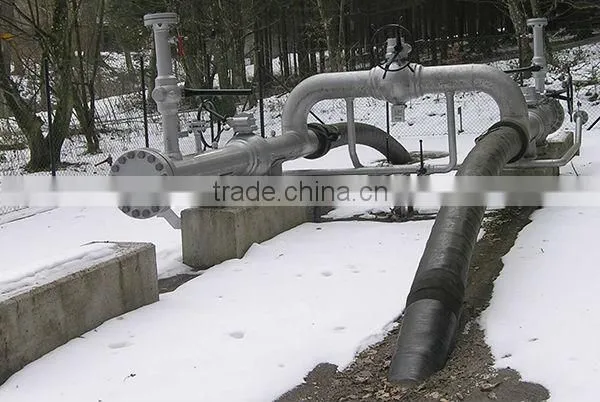

Pipe insulation
NOTES:
1). Heating cable fix materials: Aluminum tape.
2). Cross tube materials: Use steel or PVC tube.
3). Don't damage cable. The bend radius should be more than 6 times of thickness of cable.
4). Heat insulation materials should be dry and the joint of cable should be sealed.
5). The junction box should be sealed.
6). Protective sleeve must not be damaged during installation, and the core wire can not bare.
7). The heating cable should be installed accurately according to the design graphics.
Certification:
