Home > Products > Floor heating mat > Radiant Electric Warm Floor Heating Mat

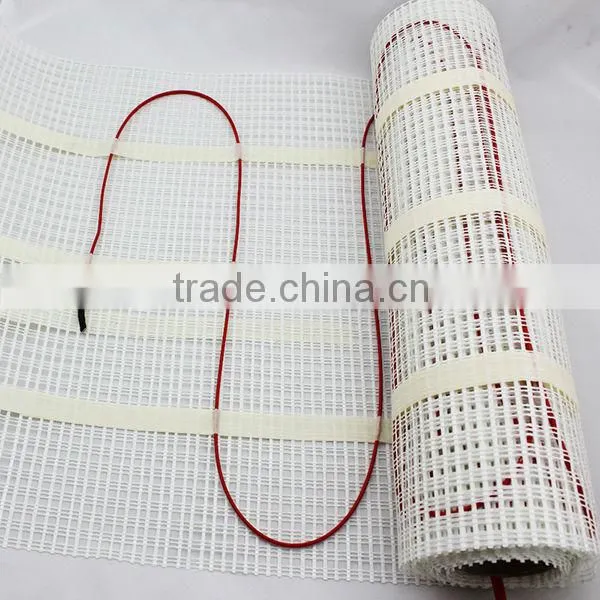

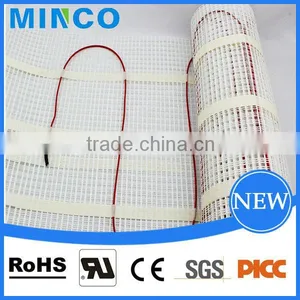

Radiant Electric Warm Floor Heating Mat
- 2000 Square Meter / Square Meters per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Ev charging cable 25mm2 --- 70mm2 Orange 1000/1500V Double insulated HV cable electric vehicle shielded cable
- HDMI CABLE
- PTC temperature sensing wire, pvc double insulation.
- UL1285 PVC or silicone rubber spiral heating wire
- PE outer layer black 2.5mm aluminum core or Galvanized steel wire electric fence underground cable
- High quality Copper Conductor Flexible PVC RVVP Control Cable
Product Details
Place of Origin: | Anhui, China | Brand Name: | Minco | Model Number: | Floor Heating Mat |
Conductor Material: | Copper | Insulation Material: | PFA | Jacket: | FEP |
Number of Conductors: | 2 | Application: | Heating Electric Mat |
Product Description
Specifications
Floor Heating Mat10 years warranty, cost effective
CE, RoHS, GOST
MOQ: 1 square meter
OEM, ODM
Radiant Electric Warm Floor Heating Mat
Product data
Floor Heating Mat | Characteristics | General technical data |
Fiberglass net | Cable structure----Two-way | |
100% covered | Shape of cable----annular | |
Good flexing, with all length | Diameter----3mm | |
As thin as only 4mm | Cold lines----one line of four meters | |
100 and 150 watts/m2 both can create maximum comfort level | Intensity of deformation----at least 600 Newton | |
One cold lines | Voltage----120V | |
10 years of warranty | Insulation----TEFLON | |
| Cover----Teflon | |
|
| Shield----aluminum foil |
Characteristics
1. Two double-sided adhesive tapes without liner.
2. 150 watts/m2 heat mats both can satisfy your heating needs.
3. Safety approved for wet locations.
4. Flexible installation.
5. Durable construction.
6.10-year limited warranty against manufacturing defects.
Product data
Floor Heating Mat (twin conductor 150W/M²) | |||||
power(w) | Voltage(v) | linear power(w) | Value of resistance(Ω) | Cable length(m) | Square meter(length*width) |
150 | 120 | 12 | 322.67 | 12.5 | 0.5 x 2 |
225 | 120 | 12 | 215.11 | 18.8 | 0.5 x 3 |
300 | 120 | 12 | 161.33 | 25.0 | 0.5 x 4 |
375 | 120 | 12 | 129.07 | 31.3 | 0.5 x 5 |
450 | 120 | 12 | 107.56 | 37.5 | 0.5 x 6 |
525 | 120 | 12 | 92.19 | 43.8 | 0.5 x 7 |
600 | 120 | 12 | 80.67 | 50.0 | 0.5 x 8 |
725 | 120 | 12 | 66.67 | 60.4 | 0.5 x 10 |
900 | 120 | 12 | 53.78 | 75.0 | 0.5 x 12 |
1050 | 120 | 12 | 46.1 | 87.5 | 0.5 x 14 |
1200 | 120 | 12 | 40.33 | 100.0 | 0.5 x 16 |
1350 | 120 | 12 | 35.85 | 112.5 | 0.5 x 18 |
1500 | 120 | 12 | 32.27 | 125.0 | 0.5 x 20 |
Minco Floor Heating Mat combines the highest comfort level with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient(saving 30%-40% compared with traditional heating system).
Safe:High efficient and convient heating system.
Automatism: Heating system can automatically(by thermostat) measure the heating requirement, and timely adjust the temperature.
Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.
Eco-friendly: Our heating system use the cleanest and most efficient power which are popular between customers.
Warranty: 10 years
Applications
Installation
2) Well installation can guarantee the efficiency.
3) After the installation, take a full test and make sure the system works well.
5)The junction box should be sealed to prevent water leak.
6) Protective sleeve must not be damaged during installation, and the core wire can not bare.
Certifications

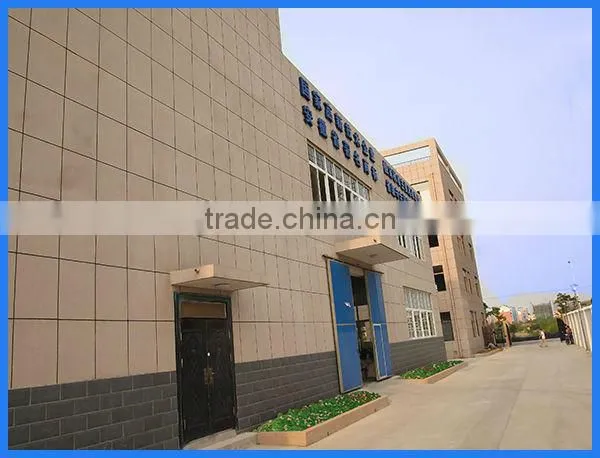

Factory show

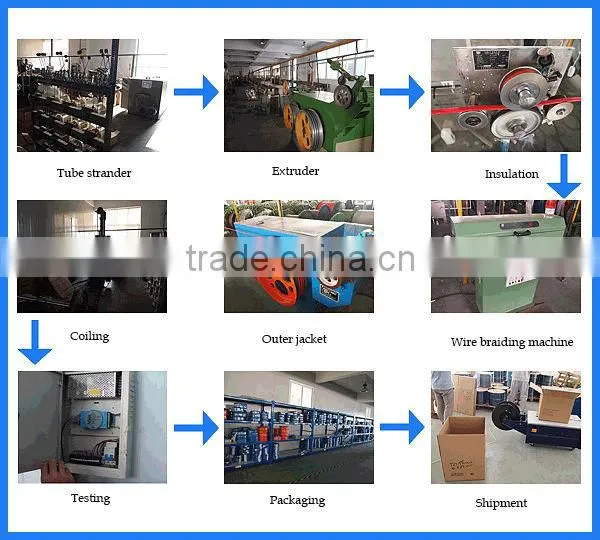

Producing process

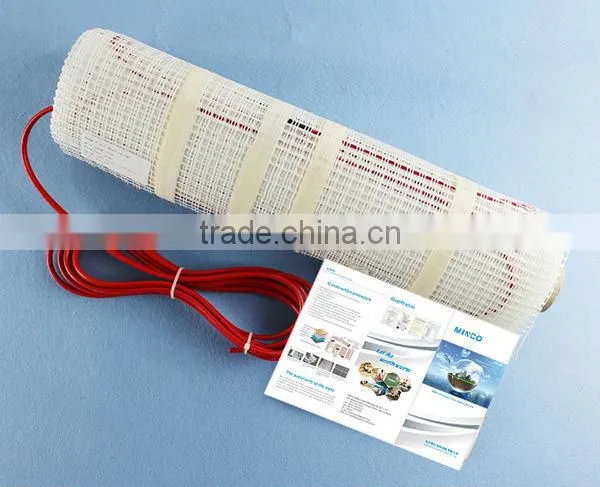

Package and Delivery
Methods of Payment
Payment methods | Commission fee | Arriving days afer paying |
| No commission fee | 3-5 working days |
| 3.9%+0.3 usd |
Instant |
| No commission fee |
Instant |
| No commission fee |
Instant |
|
Alibaba calculate it |
Instant |
FAQ
1. How to install the floor heating mat? We will enclosed the installation manual with products to you. It's very easy and you can DIY.
2. How can I know how much floor heating mat I need for my place? According to your place size and temperature, we will give you a best plan for heating.
3. How can I controll the floor heating mat? We have LCD weekly programmable thermostat designed fot electric heating.
4. What do I need to maintain the radiant heating system? Once floor heating mat is installed as the struction, it barely needs maintain.
5. Does the heating system cause noises or dust? No. The radiant heating system have no noise or dust. It is totally mute and clean. Radiant heating system is very suit for people who may be elergic or have skin diseases.
6. If you have more questions, you can contact us on trademanager: cn1501811833.
More similar products, please visit: http://mkheatingcable.en.china.cn/
