Specifications
Infrared Floor HeatingCE, ROHS, GOST
10 years warranty, cost effective
MOQ: 1 roll
OEM
Minco 220V Electric Heat Cable Mat Infrared Floor Heating
Product data
|
Infrared Floor Heating Heat Cable Mat
|
Characteristics |
General technical data |
Fiberglass net |
Cable structure----Two-way |
|
100% covered |
Shape of cable----annular |
|
Good flexing, with all length |
Diameter----3mm |
|
As thin as only 4mm |
Cold lines----one line of four meters |
|
150 watts/m2 can create maximum comfort level |
Intensity of deformation----at least 600 Newton |
|
One cold lines |
Voltage----220V |
|
10 years of warranty |
Insulation----TEFLON |
|
|
Cover----Teflon |
|
|
|
Shield----aluminum foil |
Characteristics
1. Two double-sided adhesive tapes without liner.
2. 150 watts/m2 heat mats can satisfy your needs.
3. Safety approved for wet locations.
4. Flexible installation.
5. Durable construction.
6.10-year limited warranty against manufacturing defects.
Product data
| Infrared Floor Heating-Heat Cable Mat(double conductor 150W/M²) | |||||
| power(w) | Voltage(v) | linear power(w) | Value of resistance(Ω) | Cable length(m) | Square meter(length*width) |
| 150 | 220 | 12 | 322.67 | 12.5 | 0.5 x 2 |
| 225 | 220 | 12 | 215.11 | 18.8 | 0.5 x 3 |
| 300 | 220 | 12 | 161.33 | 25.0 | 0.5 x 4 |
| 375 | 220 | 12 | 129.07 | 31.3 | 0.5 x 5 |
| 450 | 220 | 12 | 107.56 | 37.5 | 0.5 x 6 |
| 525 | 220 | 12 | 92.19 | 43.8 | 0.5 x 7 |
| 600 | 220 | 12 | 80.67 | 50.0 | 0.5 x 8 |
| 725 | 220 | 12 | 66.67 | 60.4 | 0.5 x 10 |
| 900 | 220 | 12 | 53.78 | 75.0 | 0.5 x 12 |
| 1050 | 220 | 12 | 46.1 | 87.5 | 0.5 x 14 |
| 1200 | 220 | 12 | 40.33 | 100.0 | 0.5 x 16 |
| 1350 | 220 | 12 | 35.85 | 112.5 | 0.5 x 18 |
| 1500 | 220 | 12 | 32.27 | 125.0 | 0.5 x 20 |
Applications
Infrared Floor Heating-Teflon Heating Mats with matched Thermostats
Minco Infrared Floor Heating combines the max comfort level with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient(saving 30%-40% compared with traditional heating system).
Safe: High efficient and convient heating system.
Automatism: Heating system can automatically(by thermostat) measure the heating requirement, and timely turn on or turn off.
Economical: The cost of installation and operation is relatively low; our heating system can efficiently avoid damage and save maintain fees.
Eco-friendly: Our heating system use the cleanest and most efficient power which are popular between customers.
Warranty: 10 years

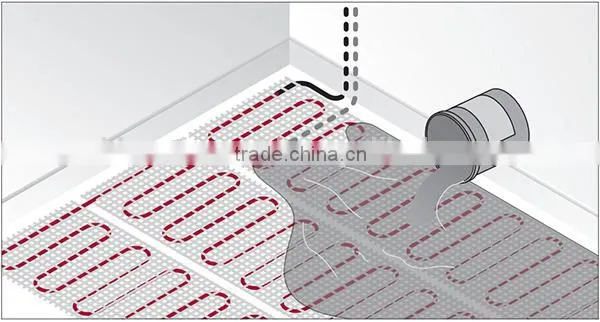

Installation
2) Well installation can guarantee the efficiency.
3) After the installation, taking a full test and make sure the system works well.
5)The junction box should be sealed to prevent water leak.
6) Protective sleeve must not be damaged during installation, and the core wire can not bare.
