Specifications
Electric Heat Floor MatCE, RoHS, GOST
10 years warranty, cost effective
MOQ: 1 roll
OEM

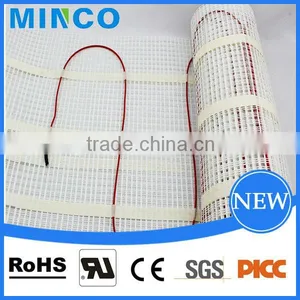

120v Tile Heating Electric Heat Floor Mat
Product details
|
Electric Heat Floor Mat
|
Characteristics |
General technical data |
Fiberglass net |
Cable structure----Two-way |
|
100% covered |
Shape of cable----annular |
|
Good flexing, with all length |
Diameter----3mm |
|
As thin as only 4mm |
Cold lines----one line of four meters |
|
150 watts/m2 can create maximum comfort level |
Intensity of deformation----at least 600 Newton |
|
One cold lines |
Voltage----120V(110v) |
|
Insulation----TEFLON |
||
|
Cover----Teflon |
|
|
|
Shield----aluminum foil |
- Toughest and thinnest wire: 3mm teflon heating cable
- Sturdy fibreglass mesh for extra durability and super-sticky double-sided tape for secure installation
- Quick installation - Simply roll out mat with pre-spaced wire
- Flexible - no customizing is necessary
- Available in both 120V and 110V
- Approvals: CE, ROHS, GOST
- 10-year warranty
- Attached installation manual
Product data
Dual Core Teflon Electric Heat Floor Mat(120v 150w/m2) | |||||
Voltage(v) |
Power(w) |
Power per meter(w/m) |
Resistance(Ω) |
Length(m) |
Size(m*m) (width*lengt) |
| 120 | 150 | 12 | 96.00 |
12.5 |
0.5*2 |
| 120 | 225 | 12 | 64.00 |
18.8 |
0.5*3 |
| 120 | 300 | 12 | 48.00 |
25 |
0.5*4 |
| 120 | 375 | 12 | 38.40 |
31.3 |
0.5*5 |
| 120 | 450 | 12 | 32.00 |
37.5 |
0.5*6 |
| 120 | 525 | 12 | 27.43 |
43.8 |
0.5*7 |
| 120 | 600 | 12 | 24.00 |
50 |
0.5*8 |
| 120 | 725 | 12 | 19.2 |
62.5 |
0.5*10 |
| 120 | 900 | 12 | 16.00 |
75.0 |
0.5*12 |
| 120 | 1050 | 12 | 13.7 |
87.5 |
0.5*14 |
| 120 | 1200 | 12 | 12.0 |
100 |
0.5*16 |
| 120 | 1350 | 12 | 10.67 |
112.5 |
0.5*18 |
| 120 | 1500 | 12 | 9.6 |
125 |
0.5*20 |
| 120 | 1800 | 12 | 8.00 |
150 |
0.5*24 |
Applications
120v Tile Heating Electric Heat Floor Mat with matched thermostats
Minco Electric Heat Floor Mat combines the highest comfort levels with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient (saving 30%-40% compared with traditional heating system) .
FAQ
1. How to install the electric heat floor mat? We will enclosed the installation manual with products to you. It's very easy and you can DIY.
2. How can I know how much electric heat floor mat I need for my place? According to your place size and temperature, we will give you a best plan for heating.
3. How can I controll the electric heat floor mat ? We have LCD weekly programmable thermostat designed fot electric heating.
4. What do I need to maintain the heating system? Once electric heat floor mat is installed as the struction, it barely needs maintain.
5. Does the heating system cause noises or dust? No. The electric heating system have no noise or dust. It is totally mute and clean. Electric heating system is very suit for people who may be elergic or have skin diseases.
6. If you have more questions, you can contact us on trademanager: cn1501811833, Skype: mandy.chen621.
