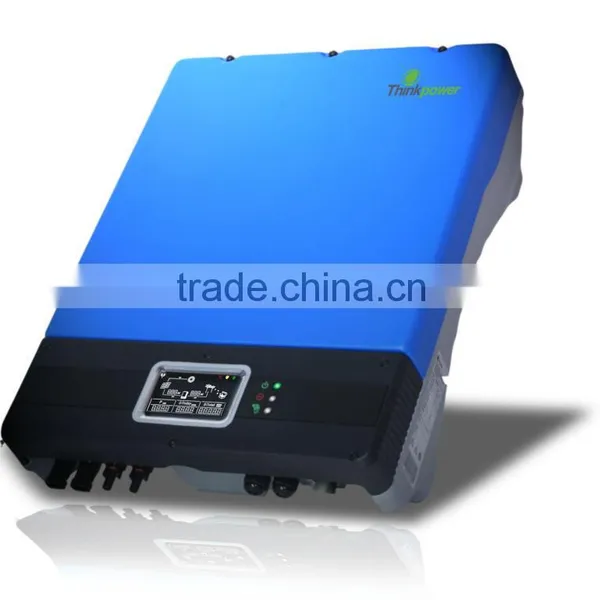

3000W(3.3kW) Thinkpower G83/G59 solar hybird inverter
Negotiable
/ Piece
5 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Thinkpower | Model Number: | T3000TL |
| Output Power: | 201 - 400KW | Output Type: | Single | Size: | 375x480x136 |
| Weight: | 15kG | Input Voltage: | Max.500 | Output Voltage: | 208,220,230,240V / 180 - 265V |
| Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | Max.17A |
Product Description
Thinkpower T series grid tied inverter(1.5kW, 2.2kW, 3kW) were designed for residential and small commercial PV installations. it has CE, TUV,SGS, VDE, AS4777 certifications.
can export to most countries.
1. Feature:
IP65 protection
Wide MPPT voltage range
High efficiency up to 97.3%
Build in WIFI monitoring as standard communication.
2. Technical parameters
| Model No | T1500TL | T2200TL | T3000TL |
| DC side/Input parameters | |||
| Max. DC power [W] | 1800 | 2500 | 3400 |
| Max. DC voltage [Vdc] | 450 | 500 | 550 |
| Min. System start/Shut down voltage [Vdc] | 150/100 | 150/100 | 150/100 |
| MPPT voltage range[Vdc] | 100~450 | 100~500 | 100~550 |
| Max. input current [A] | 10 | 13 | 15 |
| Number of MPP trackers | 1 | 1 | 1 |
| Strings per MPP tracker | 1 | 2 | 2 |
| AC side/output parameters | |||
| Nominal output power [W] | 1500 | 2200 | 3000 |
| Maximum output power [W] | 1650 | 2420 | 3300 |
| Nominal output voltage/range [V] | 208,220,230, 240/180~265 | 208,220,230, 240/180~265 | 208,220,230, 240/180~265 |
| AC grid frequency/range [Hz] | 50,60/±4.5 auto-selection | 50,60/±4.5 auto-selection | 50,60/±4.5 auto-selection |
| Maximum output current [A] | 8 | 12 | 17 |
| AC connection(with PE) | Single phase | Single phase | Single phase |
| Current distortion(THDi) [%] | <1.5 | <1.5 | <1.5 |
| Power factor [%] | 99.9 | 99.9 | 99.9 |
| Efficiency | |||
| Maximum conversion efficiency[%] | 97.3 | 97.4 | 97.5 |
| European efficiency[%] | 97 | 97.1 | 97.2 |
| MPPT efficiency[%] | 99.9 | 99.9 | 99.9 |
| Protection | |||
| DC reverse-polarity protection | yes | yes | yes |
| Short circuit protection | yes | yes | yes |
| Ground fault/residential current monitoring | yes | yes | yes |
| Grid monitoring | yes | yes | yes |
| DC/AC side varistors(thermally protected) | yes | yes | yes |
| General Parameters | |||
| Dimension(L/W/H)[mm] | 375*480*136 | ||
| Weight(kg) | 14.5 15 15.6 | ||
| Embedded DC Switch | Optional | ||
| Night Mode support | Optional | ||
| Night power consumption[W] | < 0.2 | ||
| Isolation type | Transformerless | ||
| Protection degree | IP65 | ||
| Operation temperature[ºC] | -25 ~ 60 | ||
| Heat Dissipation | Convection | ||
| Acoustic noise level[dB] | <25 | ||
| Altitude[m] | <2000 without power derating | ||
| Storage temperature[ºC] | -30 ~ 80 | ||
| Real Time Clock module | yes | ||
| LCD Display | Graphic and digital segment | ||
| Communication Interface | Standard WiFi | ||
| Warranty: 5/10/15years yes/optional/optional/optional* More technical characteristics are avaliable on demand and customized. | |||
Product Description

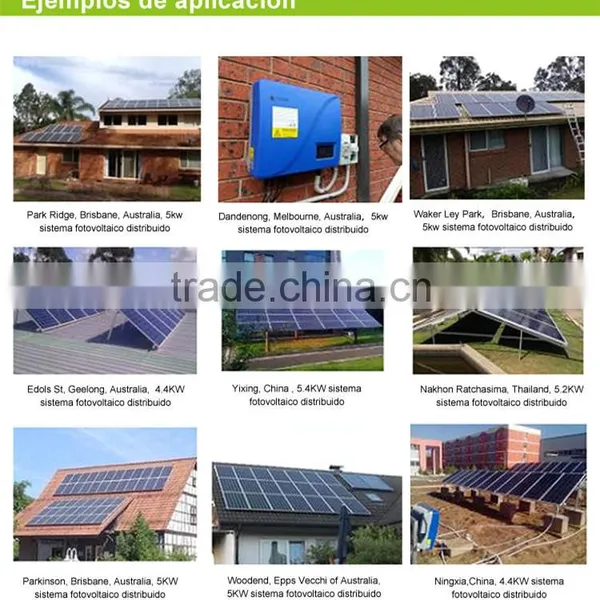

Reference projects
Packaging & Shipping
Company Information
