Dear Customer:
Thanks for your visiting! If you are interested in our products, and you want to get more details and the best offer, please kindly provide us the following information, so we can provide you the optimized proposal and best offer most efficiently. Thanks very much for your corporation.
1. Have you passed the EIA (Environmental Impact Assessment) for recycling this resource?
2. Project Time Table.
3. Any regulations for recycling in your cuntry.
4. Wearhouse layout.
5. Local power supply.
6. Capacity demands.
7. Maximum size of the materials.
8. Any pictures helpful.
Basic information:
1, Equipment capacity : 40-80 sets/hour
2, Dimensions: 41648*10000*7000mm
3, Equipment power: 275 Kw
4, Power supply: three-phase AC 380V/50Hz, 200KVA
5, Nonferrous Recovery rate <by weight>:≥95%
6,Ferrous Recovery rate <by weight>: ≥ 90%
7, Plastic Recovery rate: ≥95%
8,PUR recovery rate <by volume> : 90%
9,Noise, dust leaks and exhaust gas emissions in line with national standards and requirements
10, Equipment appearance and color: according to corporate standards.

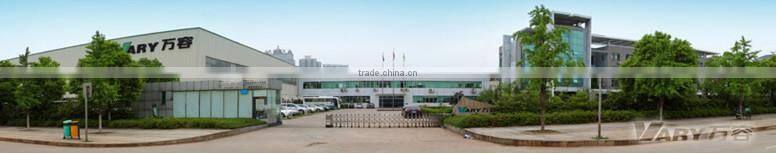

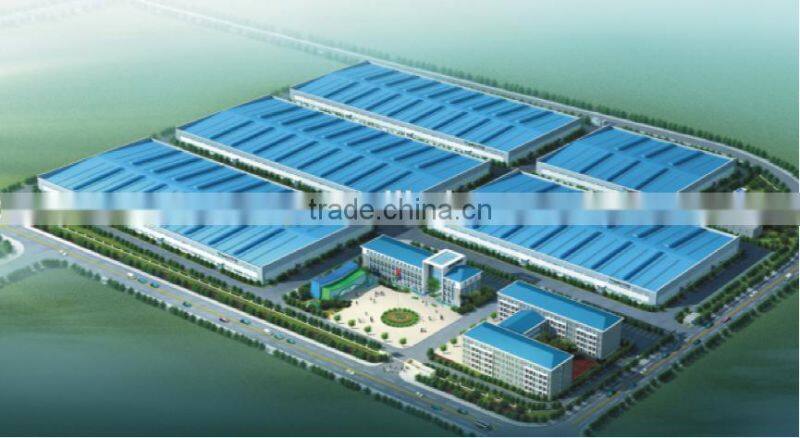

Hunan Vary Tech Co., Ltd, which is the well-recognized leading recycling equipment & system provider and experienced recycler for WEEE, Scarp Steel, ELV and various scrap in China. We own a manufacturing facility with an area of about 40 thousand squre meters with advanced processing equipments, so we can meet great demands from customers from domestic and overseas market.
Unlike the other factories VARY is not only the equipment & system manufacturer but also waste recycler that operates with our own long-term tested & proved recycling equipment & system, and engages in waste deep processing & regeneration for nonferrous metal & precious metal. The following pictures shows some of our branch companies that do the ELV & scrap steel recycling.
1. Technical Introduction
Refrigerators Recycling Plant is a set of e-scrap recycling equipment which is used to disassemble refrigerant-contained home appliances such as refrigerators and air-cons. It is consist of pre-processing work station, CFC pumping work position, first body shedding, second shedding and disassembly, sorted materials recycling devices. Based on technique of foreign companies, we first developed integrative technique of secondary shedding and bow wave shedding with characteristics of high automation, high efficiency, low function cost and zero secondary pollution. It has filled the blank of China’s refrigerator processing equipment and reached advanced international standards.
2. Process flow and Directions
1.The first is to manually disassemble refrigerator cabinet and resulting plastic, wire, glass, circuit board. The 2.second is to reclaim refrigerant to ensure it would not pollute atmosphere.
3.The third is to dismantle compressor and condenser.
4.The fourth is to multi-level shred refrigerator body in shredder. In the shredder polyurethane is sucked out by air pump.
5.The fifth is to separate iron by permanent magnet.
6.In the last step aluminum and copper are separated by eddy current.
The entire processing Equipment is located in an enclosed workshop. Exhaust gas and dust can be discharged by high pressure positive blower after being processed by activated carbon adsorption and hop-pocket dust extraction.
3. Major components
Subsystems |
Function Description |
Pre-process System |
Including work station and refrigerant recycling. To manually disassemble compressor and other plastic components. |
Shredder |
Including fluid drive, constraint transport, belt transpot, and pulverizing device. To shred and transport materials. |
Urethane foam separator |
Original design of integrative device to shred efficiently and separate Urethane foam. |
Iron separator |
Including magnetic separator. To separate iron from processing material. |
Non-ferrous metal separator |
Including eddy current separator. To separate Non-ferrous metals from processing material |
Urethane foam secondary shredder and packing system |
Including Urethane foam shredder. To reduce gaps in foam for easy packing and transportation |
Safety System (optional) |
Including water spraying, nitrogen spraying and cyclopentane detection devices. To ensure safety of equipment. |
Exhaust Gas Process System (optional) |
Including activated carbon adsorption and hop-pocket dust extraction. To ensure emitted gas consist with national standard. |
Operation condition dynamic monitoring system |
Including screen monitoring and automatic control system. |
4. Product Pictures
