Home > Consumer Electronics > LED Display > Indoor LED Display > P12 Outdoor Full Color Stadium Led Display

P12 Outdoor Full Color Stadium Led Display

US$ 900 - 2,000 MOQ: 1 Square Meter

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ccy

Model Number:

ccy-p12

Contact Supplier Request Quote Chat Now

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ccy

Model Number ccy-p12

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 12mm

Specifications

Wide viewing angle
High refresh rate,brightness
Smart all-weather protection (Water-proof, dust-proof, fog-proof)

CCY PH12outdoor fullcolor irrigation by the full use of imported silica gel, which make our products in the waterproof, resist-freeze, bear high temperatures in superior.

CCY PH12outdoor fullcolor passed waterproof and dust-proof test, the protection level can reach IP65.

CCY PH12outdoor fullcolor SMD LED display passed the temperature endure test of Shenzhen Measurement and Quality Testing Institution, CCY indoor full color SMD LED display are working normally.

Technical Parameters:

PH12mm Outdoor full color stadium led display
MODEL	CCY-ORL-P12	CCY-OVL-P12
Pixel pitch	12mm	12mm
Pixel density	27776	2777
Pixel configuration	2R1G1B	2R1G1B
LED specification	3 ellipse	3 ellipse
Driver mode	Constant current driver, 1/4 scanned	Constant current driver, 1/4 scanned
Display brightness	≥4500cd	≥4500cd
View angle	Horizontal: ≥140°; Vertical: ≥120°deg.	Horizontal: ≥140°; Vertical: ≥120°deg.

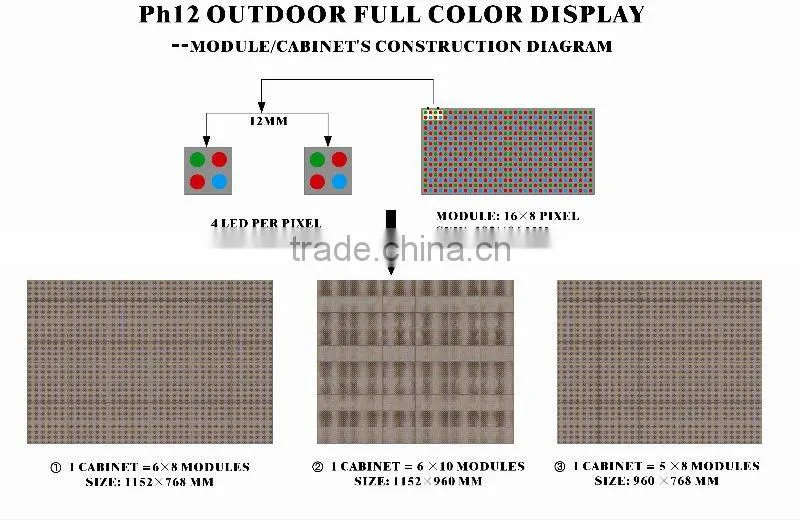

Panel pixel	16×8dot	16×8dot
Panel dimension	192×96*45mm	192×96*45mm
Unit box pixel	9664HV	9664HV
Box dimension	1152×768×125mm	1152×768×125mm
Refresh frame frequency	adjustable from 10Hz-3000Hz	adjustable from 10Hz-3000Hz
Display colors	16.7mcolor	16.7mcolor
Grey scale	adjusted409640964096grade	adjusted409640964096grade
Power consumption	Max:1200;Ave:400	Max:1200;Ave:400
