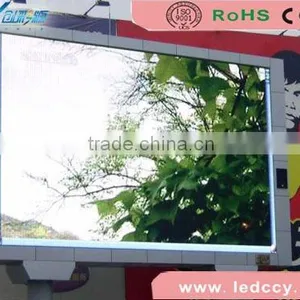

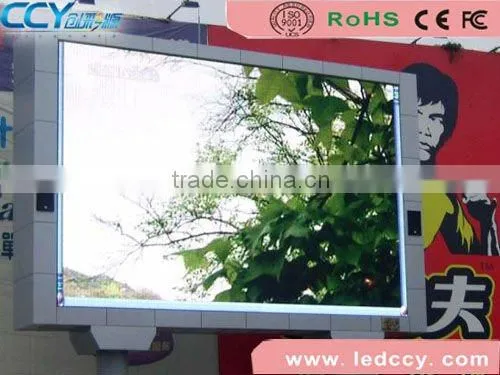

P10 high resolution full color led outdoor signage

P10 high resolution full color led outdoor signage
packing:(optional)
1wooden box
2 flight case

Specifications

P10 high resolution full color led outdoor signage
>high quality & low price
>CE& RoHS
>good service
>high resolution

 P10 high resolution full color led outdoor signage



1.We are a manufacturing company, so can provide very competitive price at the same quality level.

2.  We have the encapsution workshop, so the quality is under strict control.

3.   We are professional and only concentrate on outdoor and indoor LED video displays. Our general engineer has 15 years experience in LED production and is very familiar with LED technology and raw material.

4.   Fast and punctual delivery. With full of advanced auto machines and well-trained workers, our delivery is always on time.

5.  Our outdoor and indoor products have passed the CE, CCC, FCC, RoHS, and ISO9001-2008 certifications.

6.  After-sales service. Our after-sales engineers have been in LED field for more than 10 years who is sophisticated in programming all kinds of control systems, extending professional maintenance or repairing skills to customers.



P10 module and technical parameter and cabinet

1. Pixel Pitch 10 mm

2. Virtual pixel pitch 5mm

3. Density per sqm 10000 pixels

4. Pixel configuration: 1R1G1B

5. LED package DIP 346

6. Module resolution 16 dots*16 dots

7. Module size 160 mm*160 mm

8. Cabinet size 1280 mm*960 mm

9. Whiteness brightness ≥8000

10. Grey Scale/Color: Display colors≥16.7m

11. Best Viewing Distance 8m~65m

12. Driving method: static constant current , 1/4 Scan  Constant Current,

13. View Angle (H) 110°~140°(V)/ 55°

14. Frame frequency 60 Hz

15. Refresh Rate 450 Hz

16. Max power 700W/sqm

17. Average power 300W/sqm

18. Protection classification IP65 front/IP54 rear

19. Cabinet Weight  about 40 Kg

20. Install mode Wall mount, hung and stand structure

21. Cabinet Material Iron/Aluminum

22. Working voltage AC 110~220v/±10%

23. Control method: Synchronization

24. Malfunction dot rate  Less than 0.0001

25. Working temperature -20~60°C

26. Working Humidity 10~95%

27. Lifetime 100,000 hours

28. MTBF  ≥ 10000 hours

29. Whole display flatness: less than 1mm juncture

30. Transmission distance  LAN cable ≤ 100m,  optic fiber transmission: MMF ≤500m, SMF ≤15km
