Specifications
Aliminumn outdoor SMD waterproof full color oled display modules/led video diaplay/led stage rental diaplay screen for P81.China laibaba P8 outdoor SMD waterproof full color oled display/led video diaplay/led stage rental diaplay screen and modules led aluinium cabinets details:
>>>full color high birghtness,high stability
>>>outdoor energy-saving,durable
>>>wide viewing angle vivid led display
>>>CE,CCC,ROHS,FCC,ISO2008
2. P8 outdoor SMD led video diaplay/led stage rental led display parameters:
Product No. |
ph8 full color outdoor led commercial advertising display screen |
Physical pixel pitch |
8 mm |
Physical pixels per sqm |
10,000 |
Pixel constitution |
1R1G1B |
Cabinet size |
768*768mm |
Cabinet weight |
30kg |
module resolution |
32*16pixels |
Best viewing distance |
8-50m |
Max. power consumption |
1500W |
Ave.power consumption |
750W |
Brightness |
≥6000CD/m2 |
Driving method |
1/4 scan, current driving |
Best viewing angle |
Horizontal: ≥140°; Vertical: ≥50° |
Frame frequency |
≥60Hz/s |
Refresh rate |
adjustable from 10Hz to 3000Hz |
Display color |
281 trillions |
Input voltage |
AC 110 or AC220 V ±10% ,50 to 60Hz |
MTBF |
10,000 hours |
Life-span |
100,000 hours |
Ingress protection |
Front IP65,behindIP43 |
Working environment |
Temperature: -20°c-+50°c; Humidity: 10%-90%RH |

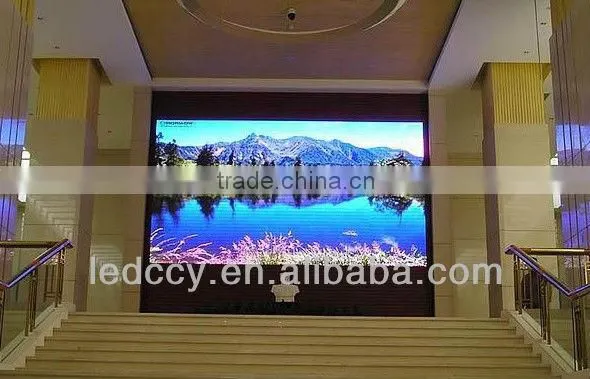

This led display screen is suitable for the television studio and digital stage background.Stage background LED display is one of the applications of transparent curtain LED screen display, which has the features of light weight, transparent screen with curtain, strips, mesh, net shape rather than solid or stereo, usually big pixel pitch so cost-effective.
It usually has no fans and no noise pollution, long lifetime and friendly to the environment. And it also has simple maintenance with its transparent screen.
The applications of the background led display include:
1. High-grade entertainment
2. Large-scale song and dance soiree

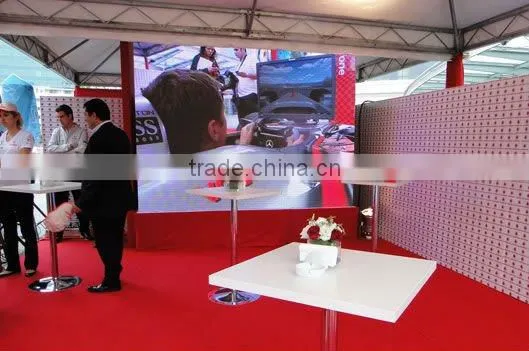

3. Fashion conference

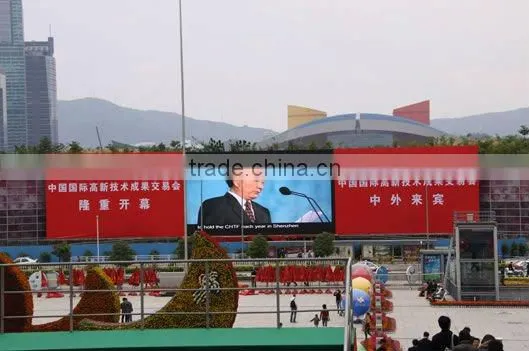

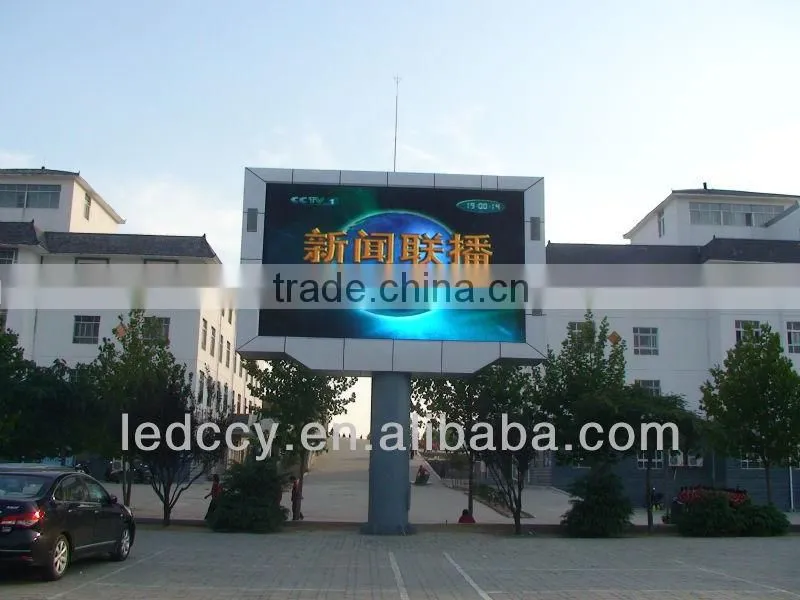

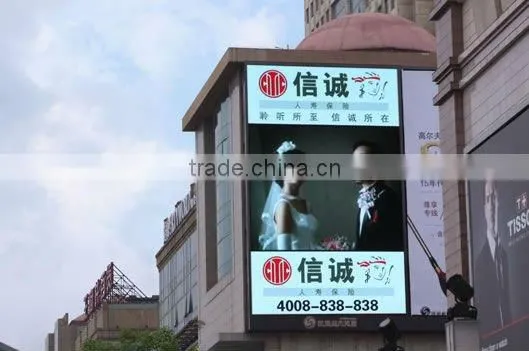

4. Outdoor advertising
5. Building wall decorations etc.
3. P8 outdoor SMD curtain full color oled display/led video diaplay/led stage rental diaplay screen and led modules led aluinium cabinets describtions: .
4.Outdoor SMD oled video diaplay/led aluinium board Rental LED display screen:
Rental led display includes indoor and outdoor led panel, and there are magic clear panel, curtain wall panel, mesh led panel, raster screen and light bar panel.
The main characteristics of rental led display are: convenient to move and independent design of cabinets and easy to install. Rental indoor led display’s cabinets are usually cast-aluminum cabinet and the ultrathin aluminum cabinet, so it is easy to remove and install. The packing is usually the flight case which used for rental. Rental outdoor led display includes small pixel pitch of high definition, medium pixel pitch of standard definition and long pixel pitch of economical led display.
The latest development of hanging structure of rental led display allows the hanging of both the independent cabinet and the whole screen, which not only makes the installation and the use of cabinet more convenient but also increases the practicality of the screen body.
As a movable media, there are some things different with the fixed installation commercial LED screen:
1. Lock button
2. Hanging cabinets inner structure
3. Hanging beam
4. Bottom Bracket

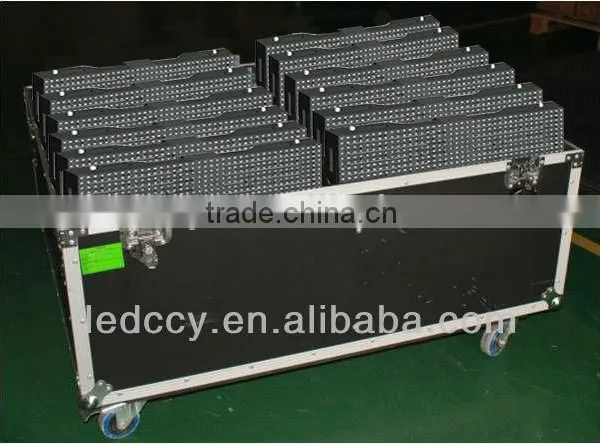

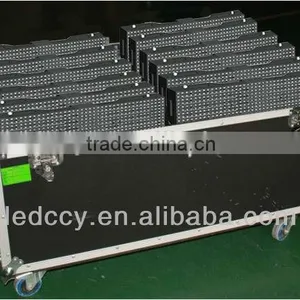

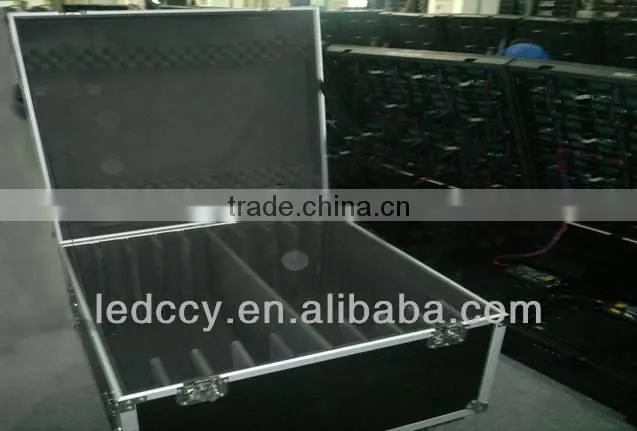

5. Flight case

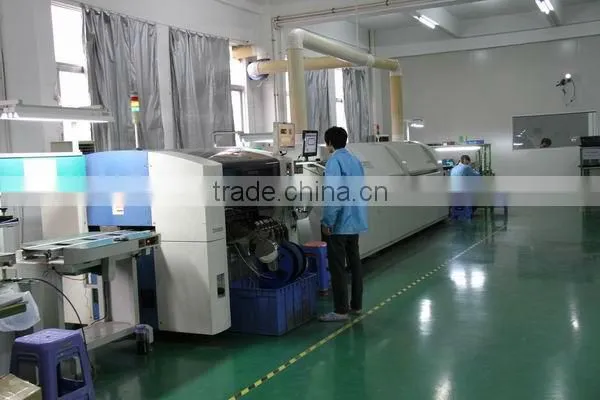

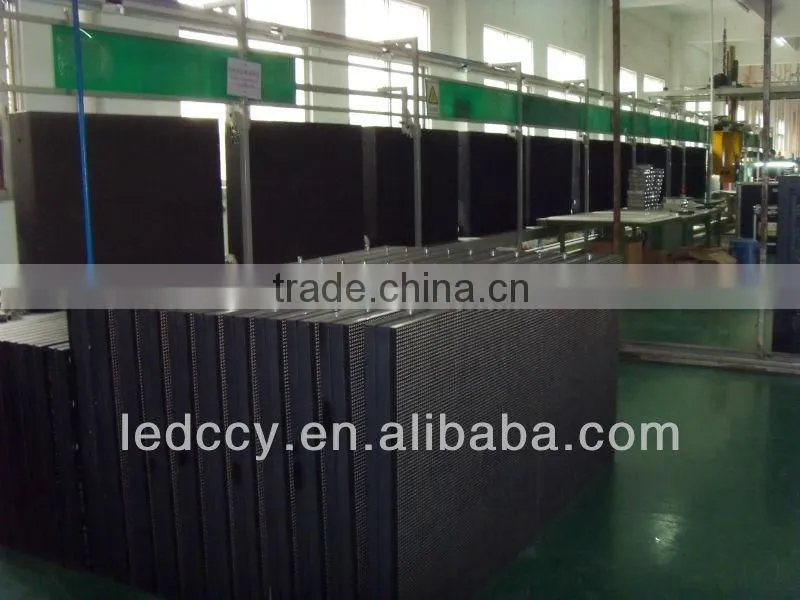

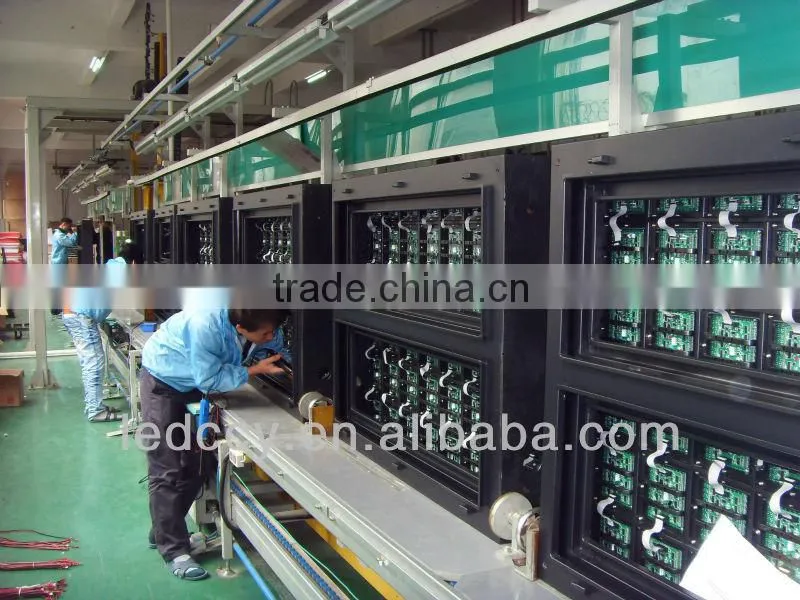

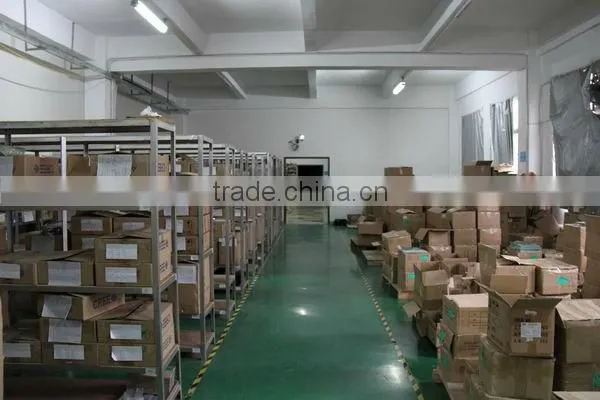

5.Shezhen led creking Electronic company details :
We can be available varirties of commercial led displays /stage led screen/video led display /stadium led display board/rental dispay,ect.
Welcome to visit to Shenzhen led Creking Electronic company.
