P20 Xxx Video tv Video Wall/multi Led tv Wall

P20 Xxx Video tv Video Wall/multi Led tv Wall thumbnail-1
P20 Xxx Video tv Video Wall/multi Led tv Wall photo-1
US$ 1,000 - 1,600 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCY
Model Number:
P20
Contact Supplier Request Quote Chat Now
Shenzhen CreKing Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CCY
Model Number P20
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 20mm

Specifications

led displays screen
1)High brightness,stability,contrast design.
2)Low voltage,power,cost.
3)Satisfactory service.

ShenZhen Led Billboard/P20mm outdoor led video billboards/Led Billboard Outdoor



  1. We do the LED encapsulation by ourselves (Quality is under strict control, prices are very competitive).
  2. We are professional and only concentrate on outdoor and indoor LED video displays.
  3. Fast and punctual delivery. With full of advanced auto machines and well-trained workers, our delivery is always on time.
  4. After-sales service. Our after-sales engineers have been in LED field for more than ten years who is sophisticated in programming all kinds of control systems, extending professional maintenance or repairing skills to customers.

Trade Terms

1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying



2.Shipping freight are quoted under your requests



3.Shipping port:ShenZhen,Mainland China



4.MOQ:1pc





  • LED Display Descriptions:



This led display screen is suitable for the television studio and digital stage background.Stage background LED display is one of the applications of transparent curtain LED screen display,







which has the features of light weight, transparent screen with curtain, strips, mesh, net shape rather than solid or stereo, usually big pixel pitch so cost effective.




The commonly used pixel pitch is P10, P12, P14, P16, P20, P25, P31.25, P37.5 according to the customers’ demands.





It usually has no fans and no noise pollution, long lifetime and friendly to the environment. And it also has simple maintenance with its transparent screen.

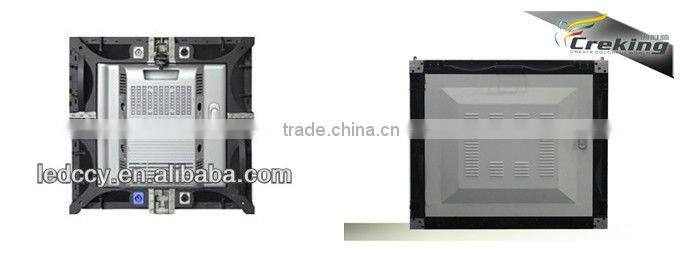

  • LED Sign Cabinet



 p20 xxx video tv video wall/multi led tv wall

  • Indoor  LED Display Parameter



Specification

P2.5

P3

P4

P5

P6

P7.62

P10

P12.5

LED composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

Pixel density(dot/m2)

160000

111111

62500

40000

27777

17222

10000

6400

Pitch size

2.5mm

3mm

4mm

5mm

6mm

7.62mm

10mm

12.5mm

Brightness(cd/m2)

≥2200

≥2200

≥1800

≥1800

≥1700

≥1600

≥1400

≥1000

Max power comsumption(w/m2)

1200

1800

1500

1000

1200

850

500

400

LED tpye

SMD1616

SMD2121

SMD3528

Module size

160*160MM

192*192MM

256*128MM

320*160MM

384*192MM

488*244MM

320*160MM

400*200MM

Module resolution

64*64

64*64

64*32

64*32

64*32

64*32

32*16

32*16

Protection level

IP33

View angle(H/V)

160Deg

Best viewing distance

2-20M

3-25M

4-25M

5-30M

6-35M

8-35M

10-35M

12-50M

Driving mode

1/16 scan,constant current

1/16 scan,constant current

1/8 scan,constant current

Gray scale

256 grades linear input,16384 grades output adjustable,100 grades brightness adjustable.

Refresh rate

600Hz

Communication distance

common distance 100M(Fiber optic transmission 15000M)

Displaying color

16.7Million

Displaying mode

Synchronous with PC

Life span

≥80000h

Operation temperature and humidity

-20°C~+45°C,10%~95%

Operation voltage

110-220V±10%



  • Indoor  LED Display Case



 p20 xxx video tv video wall/multi led tv wall



  • Outdoor  LED Display Parameter





Specification

P6

P8

P10

P12

P12.5

P16

P20

P25

P31.25

LED composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

1R1G1B

2R1G1B

4R2G1B

Pixel density(dot/m2)

27777

15625

10000

6944

6400

3906

2500

1600

1024

Pitch size

6mm

8mm

10mm

12mm

12.5mm

16mm

20mm

25mm

31.25mm

Brightness(cd/m2)

≥5000

≥6000

≥7500

≥6500

≥6000

≥8500

≥6000

≥5000

≥4500

Max power comsumption(w/m2)

900

1000

1000

800

600

800

650

500

300

LED tpye

SMD3535

SMD3535DIP246

SMD3535DIP346

DIP346

SMD3535

DIP546

Module size

192*192MM

256*128MM

320*160160*160MM

192*192MM

500*125MM

256*128MM

320*160MM

400*200MM

250*250MM

Module resolution

32*32

32*16

32*1616*16

16*16

40*10

16*8

16*8

16*8

8*8

Protection level

IP67

View angle(H/V)

140Deg

140Deg120/55

140Deg120/55

120/55

140Deg

120/55

Best viewing distance

6-50M

8-50M

8-300M

10-300M

12-300M

15-300M

20-140M

25-400M

32-600M

Driving mode

1/8 scan,constant current

1/4 scan,constant current

1/2 scan,constant current

static,constant current

Gray scale



256 grades linear input,16384 grades output adjustable,100 grades brightness adjustable.

Refresh rate



1000Hz

Communication distance



common distance 100M(Fiber optic transmission 15000M)

Displaying color



16.7Million

Displaying mode



Synchronous with PC

Life span



≥100000h

Operation temperature and humidity



-20°C~+45°C,10%~95%

Operation voltage



110-220V±10%





  • Outdoor  LED Display Case



p20 xxx video tv video wall/multi led tv wall





  • Workshop



p20 xxx video tv video wall/multi led tv wall



  • Quality Detection



p20 xxx video tv video wall/multi led tv wall



  • Certificate



p20 xxx video tv video wall/multi led tv wall



  • Our Factory



p20 xxx video tv video wall/multi led tv wall
