P16 full color outdoor new products for 2011

packing:(optional)
1. wooden case
2. flight case

Specifications

P16 full color outdoor new products for 2011
1)High brightness
2)Low power & voltage
3)Wide viewing angle
4)Water-proof

P16 full color outdoor new products for 2011
1)High brightness
2)Low power & voltage
3)Wide viewing angle
4)Water-proof



CCY led display advantages are:

1. We do the LED encapsulation by ourselves (Quality is under strict control, prices are very competitive).

2. We are professional and only concentrate on outdoor and indoor LED video displays.

3. Fast and punctual delivery. With full of advanced auto machines and welltrained workers, our delivery is always on time.

Aftersales service. Our aftesales engineers have been in LED field for more than ten years who is sophisticated in programming all kinds of control systems, extending professional maintenance or repairing skills to custom



Firstly,let me give you a brief introduction about my company,We CCY which specialize in indoor and outdoor fullcolor led display and other Peripheral LED product with 8 years,now our factory was 15000sqm.  has 5 floors, 5floor is office, 4 floor is for led tube encapsulation,and 1-3 floor for assembling and test.we are one of 5 biggest factory of encapsolution in shenzhen China, we have been adpoting the 12 full automatic die boonders of Japanese's Panasonic equipment  to producing our led tube,6 the USA modern AMS DIP machines, 3 big SMT machines(import from Korea Sunsung), 2 Juki high temperature wave-soldering machine, and 1 RF-H880 Reflow Soldering Machine.4 red rays QC machine,Auto silicon sealing machine,even-power mask putting machine,all of which makes sure that we have a production capacity of 5000sqm per month of good quality and delivery time was we promised.



 Parameters and module

Pixel Pitch	16 mm
Virtual pixel pitch	8mm
Density per sqm	3906 pixels

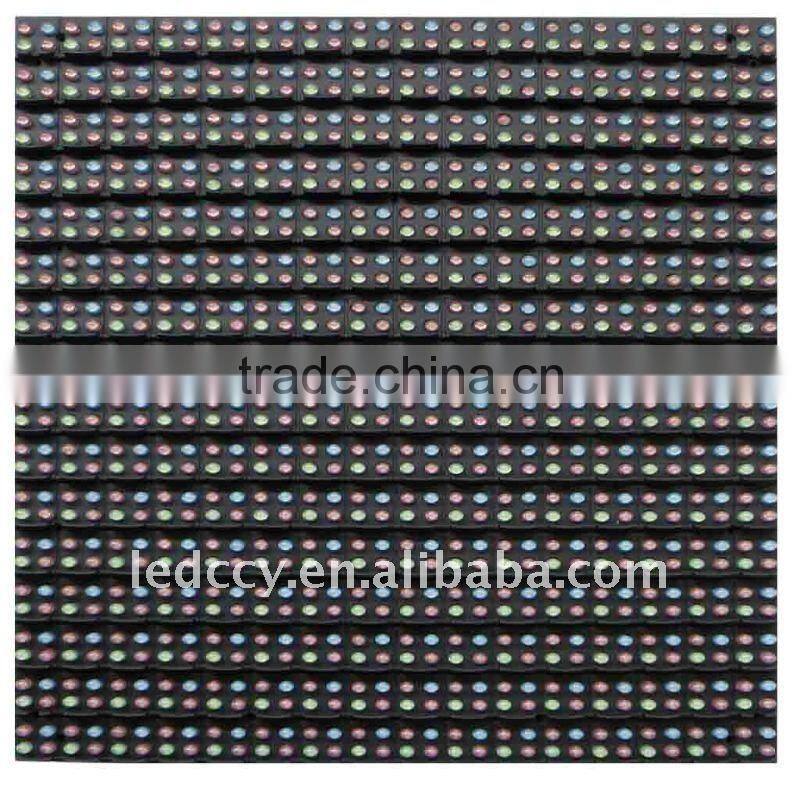

Pixel configuration	2R1G1B or 1R1G1B
LED package	DIP 546

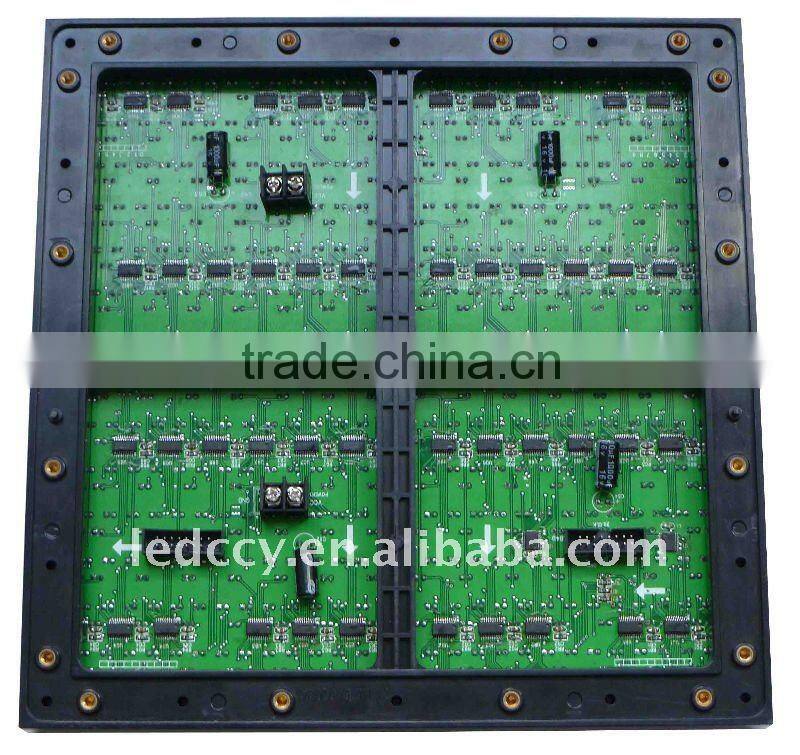

Module resolution	16*8 dots or 16*16dots
Module size	256 mm*128 mm or 256mm*256mm
Cabinet size	1024 mm*768 mm
Whiteness brightness	≥7500
Grey Scale/Color	Display colors≥16.7m
Best Viewing Distance	15m~100m
Driving method	static constant current
View Angle	(H) 110°~140°(V)/ 55°
Frame frequency	60 Hz
Refresh Rate	450 Hz ~ 4000Hz
Max power	750W/sqm
Average power	160W/sqm
Protection classification	IP65 front/IP54 rear
Cabinet Weight	35 Kg
Install mode	Wall mount, hung anword stand structure
Cabinet Material	Iron/Aluminum
Working voltage	AC 110~220v/±10%
Control method	Synchronization
Malfunction dot rate	Leswors than 0.0001
Working temperature	-40~+60°C
Working Humidity	10~95%
Lifetime	100,000 hours (about 10 years)
MTBF	≥ 10000 hours
Whole display flatness	less than 1mm juncture
Transmission distance	LAN cable ≤ 100m,  optic fiber transmission: MMF ≤500m, SMF ≤15km
