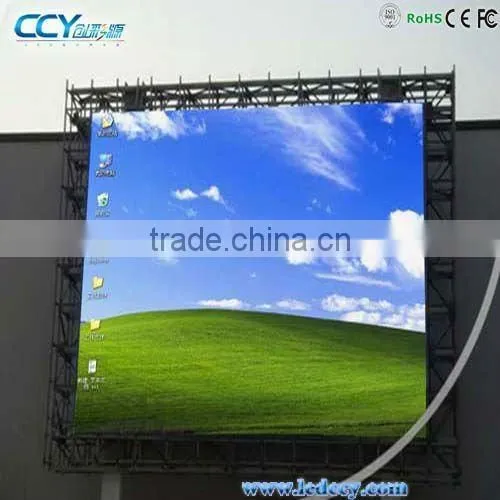

PH10mm Outdoor Led Advertising Wall

PH10mm Outdoor Led Advertising Wall thumbnail-1
PH10mm Outdoor Led Advertising Wall photo-1
US$ 950 - 1,400 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CCY
Model Number:
CCY-P10-O25
Contact Supplier Request Quote Chat Now
Shenzhen CreKing Electronics Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CCY
Model Number CCY-P10-O25
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 10MM

Specifications

PH10mm outdoor led advertising wall
1.warranty:2 years
2.CE certification
3.pixel pith:10mm
4.module resolution:16*16

PH10mm outdoor led advertising wall :



1 Physical Pixel Pitch 10 mm
2 LED Configuration 1R1PG1PB
3 Virtual pixel pitch    5mm
4 LED Type DIP 346
5 Module Resolution 16X16
6 Module Size 160X160mm
7 Cabinet Resolution  128x96
8 Cabinet Size  1280x960mm
9 Physical pixel  10000 dots/m2
10  Brightness >6000nit
11  Grey Scale/Color: Display colors ≥16.7m
12  Optimum Viewing Distance   10m
13  Driving Method  1/4 Scan, Constant Current
14  Viewing Angle (H/V) 120/70 degrees
15  Frame Rate   60Hz/s fps
16  Refresh Rate 400Hz
17  Lifespan 100,000 hours
18  MTBF   ≥ 5000 hours
19  Power Consumption 225W/m2(Average)/900W(Max.)
20  Ingress Protection   IP65(Front)/IP54(Back)
21  Working Voltage 110-220VAC±10%
22  Control method Synchronization or Asynchronization
23  Operating Temperature  -20Co—60Co
24  Operating Humidity 10%—95%RH
25  Weight ≤55 Kg/Cabinet
26  Malfunction dot rate   Less than 0.0001
27  Whole display flatness less than 1mm juncture
28  Transmission distance   "LAN cable ≤ 100m,
 optic fiber transmission: MMF ≤500m, SMF ≤15km"

1. Physical Pixel Pitch : 10 mm

2. LED Configuration: 1R1PG1PB

3. Virtual pixel pitch   5mm

4. LED Type: DIP 346

5. Module Resolution: 16X16

6. Module Size: 160X160mm

7. Cabinet Resolution 128x96

8. Cabinet Size 1280x960mm

9. Physical pixel  10000 dots/m2

10. Brightness: >6000nit

11. Grey Scale/Color: Display colors≥16.7m

12. Optimum Viewing Distance  10m

13. Driving Method 1/4 Scan, Constant Current

14. Viewing Angle (H/V) 120/70 degrees

15. Frame Rate  60Hz/s fps

16. Refresh Rate 400Hz

17. Lifespan: 100,000 hours

18. MTBF  ≥ 5000 hours

19. Power Consumption: 225W/m2(Average)/900W(Max.)

20. Ingress Protection  IP65(Front)/IP54(Back)

21. Working Voltage: 110-220VAC±10%

22. Control method: Synchronization or Asynchronization

23. Operating Temperature: -20Co—60Co

24. Operating Humidity: 10%—95%RH

25. Weight: ≤25 Kg/Cabinet

26. Malfunction dot rate  Less than 0.0001

27. Whole display flatness: less than 1mm juncture

28. Transmission distance  LAN cable ≤ 100m,  optic fiber transmission: MMF ≤500m, SMF ≤15km





Facotry&Certification:

 PH10mm outdoor led advertising wallPH10mm outdoor led advertising wall
