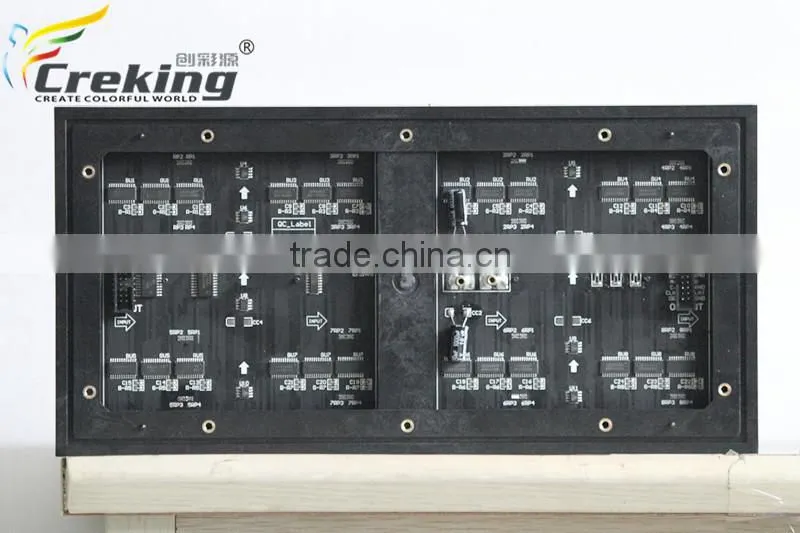

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module thumbnail-1
CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module photo-1
Negotiable MOQ: 5 Square Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Creking
Model Number:
P10
Contact Supplier Request Quote Chat Now
Shenzhen CreKing Electronics Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Creking
Model Number P10
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels 10mm
Screen Dimension 320*160mm

Specifications

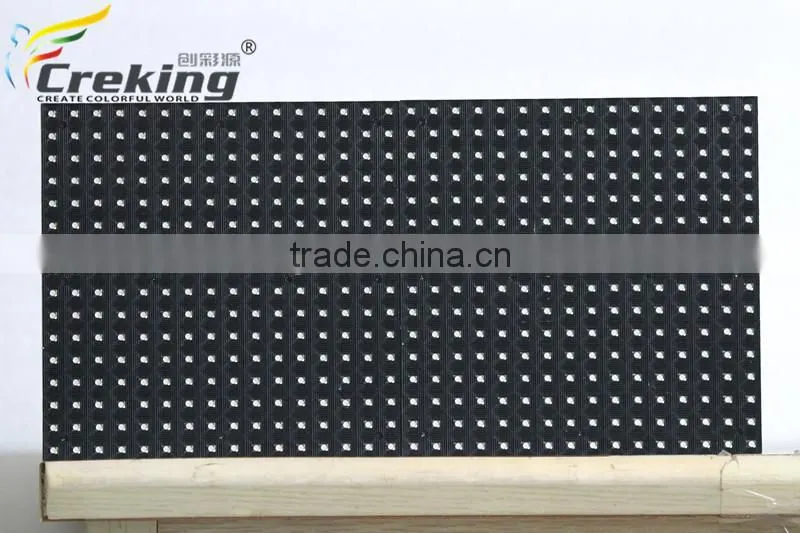

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module
High quality LED chip
Point by point correction

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display ModuleCE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module



LED Type

SMD3528

Led composition

1R1G1B

Pixel density

10000dot/Square Meter

Pitch size

10mm

Brightness

≥1200cd//Square Meter

Max power consumption

400W/ Square Meter

Module size

320*160MM

Module resolution

32*16

LED driving method

1/8 scan, constant current

Protection level

IP20

View angle(H/V)

140Deg

Best viewing distance

13-33M

Refresh rate

600Hz

Gray scale

256 grades linear input, 16384 grades output adjustable, 100 grades brightness adjustable.

Displaying colors

16.7million

Displaying mode

Synchronous with PC

Communication distance

Cat5 cable within 100m, Single-mode optical fiber transmission distance with in 15km

Lifetime

≥50,000 hours

Operating temperature

-20ºC to +45ºC

Operating humidity

10%~95%

Operating voltage

AC95V-265V, 50~60Hz



Hot-sale Products:

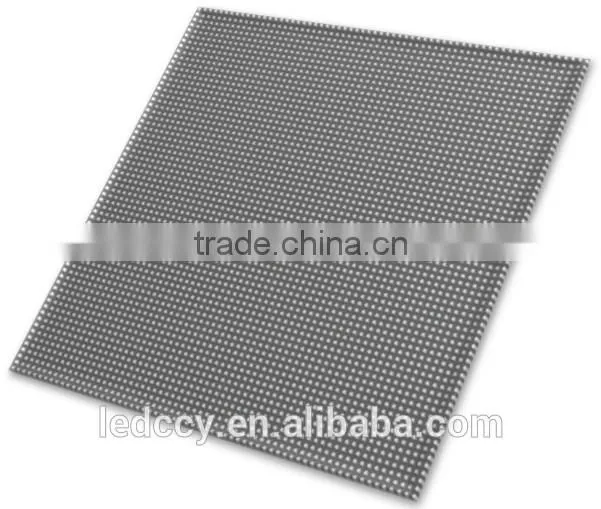

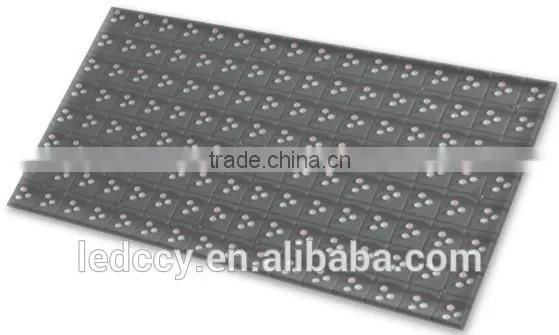

→Indoor Full Color SMD P2.5 LED Module







CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

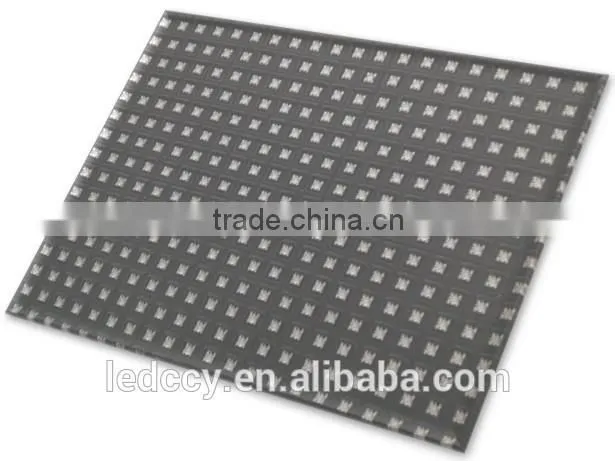

→ Indoor Full Color SMD P5 LED ModuleCE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

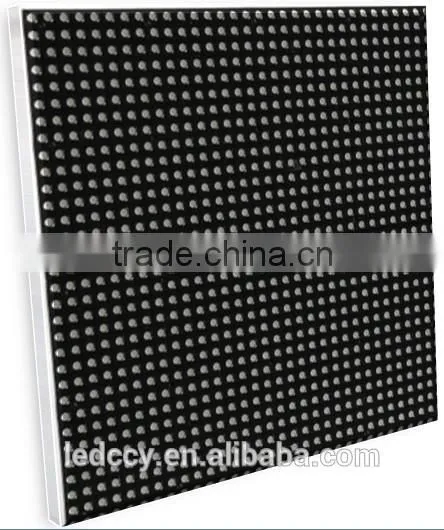

→ Outdoor Full Color DIP P10 LED Module



CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module



→ Outdoor Full Color DIP P16 LED Module







CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

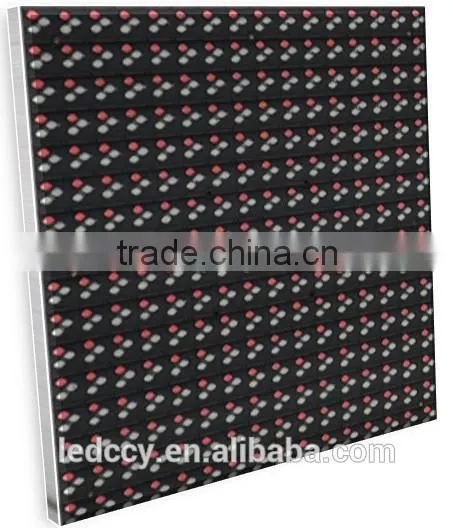

→ Outdoor Piranha Full Color DIP P8 LED Module



CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module



Module Size:

Indoor Full Color LED Modules



SMD

Module Name

P2.5

P3

P4

P5

P6

P7.62

P10

P12.5

Module Size/mm

160*160

192*96

128*128

160*160

192*192

244*244

320*160

400*200



Outdoor Full Color LED Modules



SMD

Module Name

P6

P8

P10

P12.5

Module Size /mm

192*192

256*128

320*160

500*125

DIP

Module Name

P8

P10

P12

P16

P20

P25

P31.25

Module Size /mm

256*128

160*160

192*192

256*256

320*160

400*200

250*250



 Piranha Full Color LED Modules

DIP 3in1

Module Name

P8

P8.2

P10

P16

Module Size

320*160mm

262.4*262.4mm

320*160mm

256*128mm



Certification

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

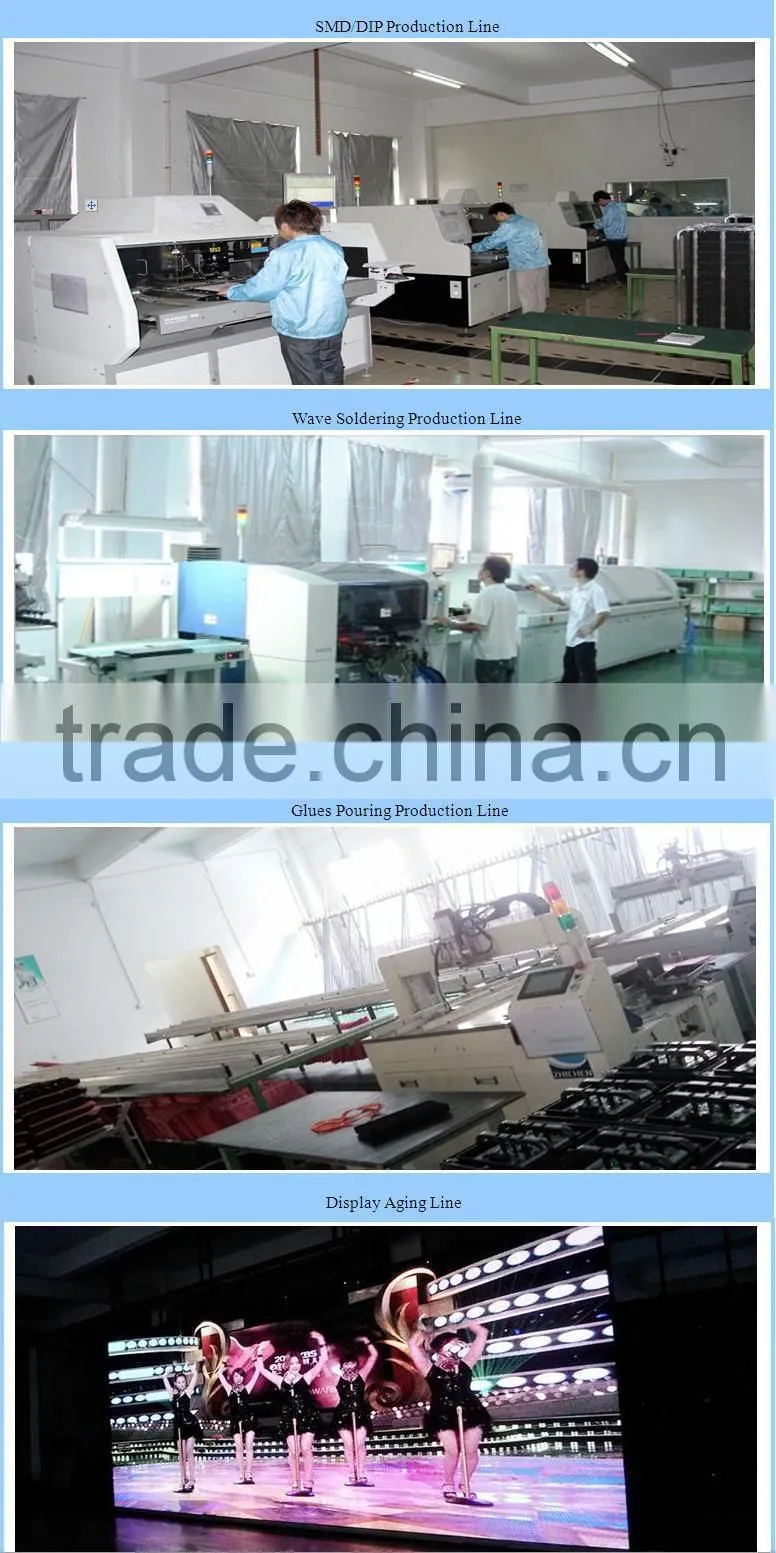

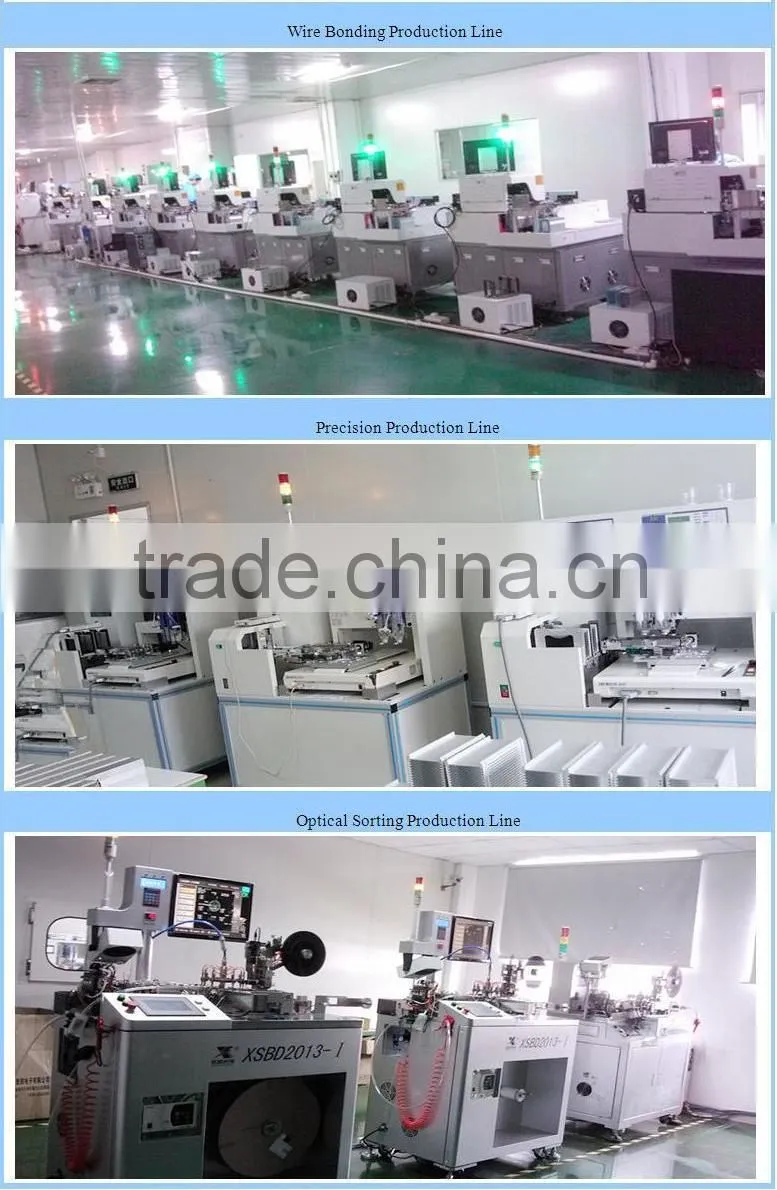

 Production Line

CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display ModuleCE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module

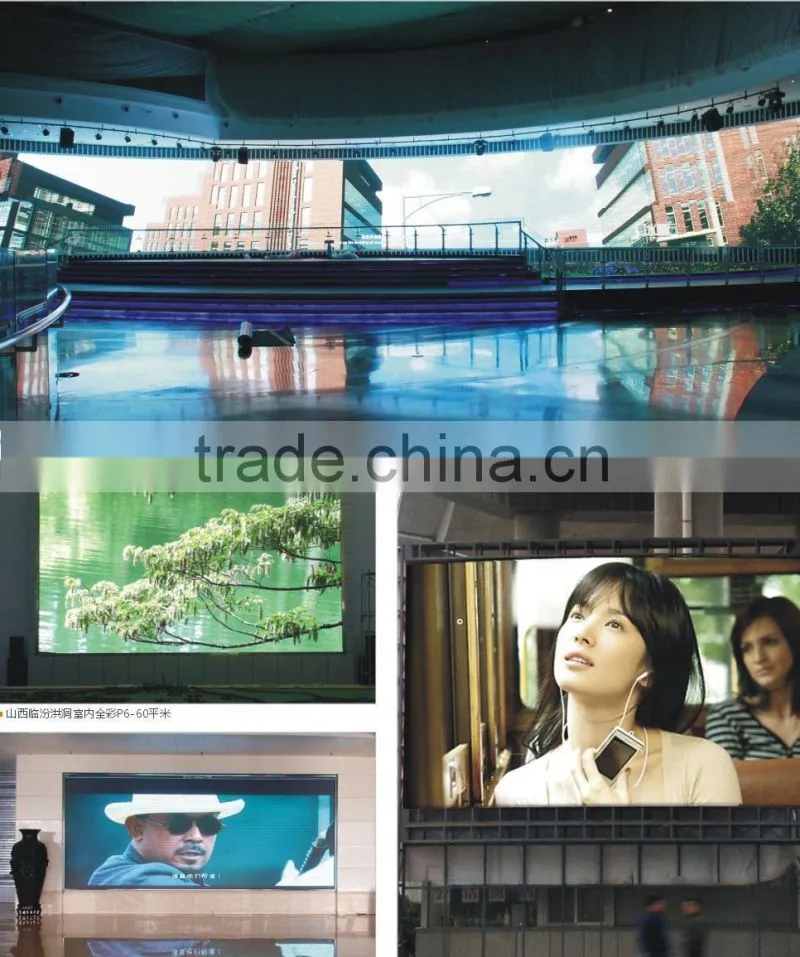

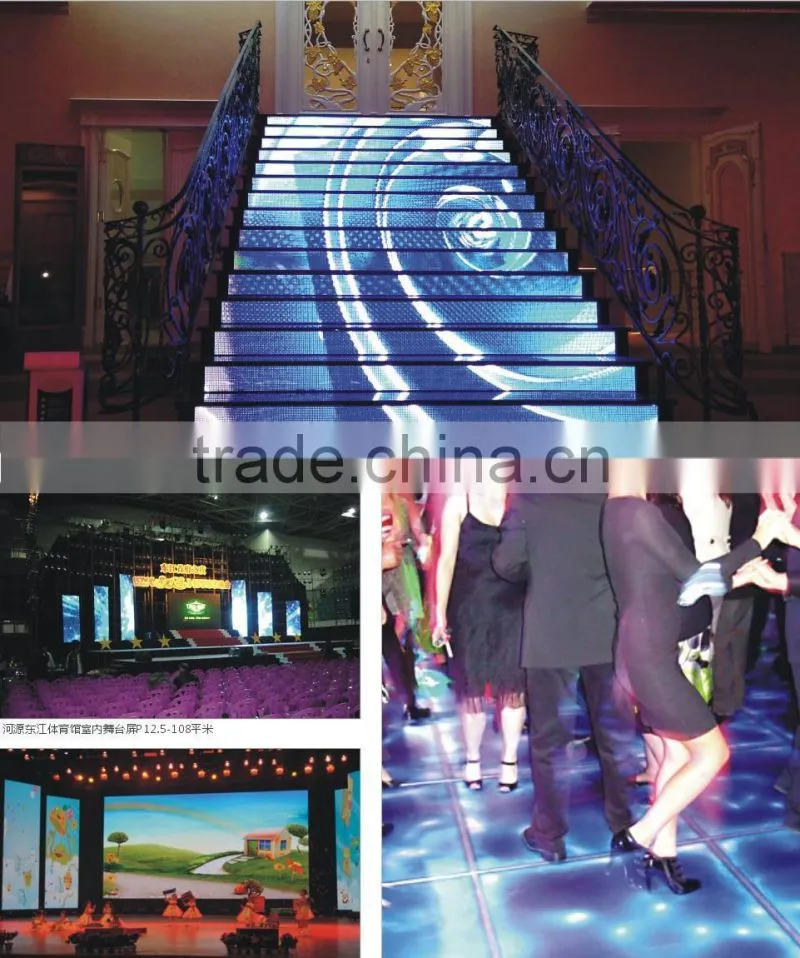

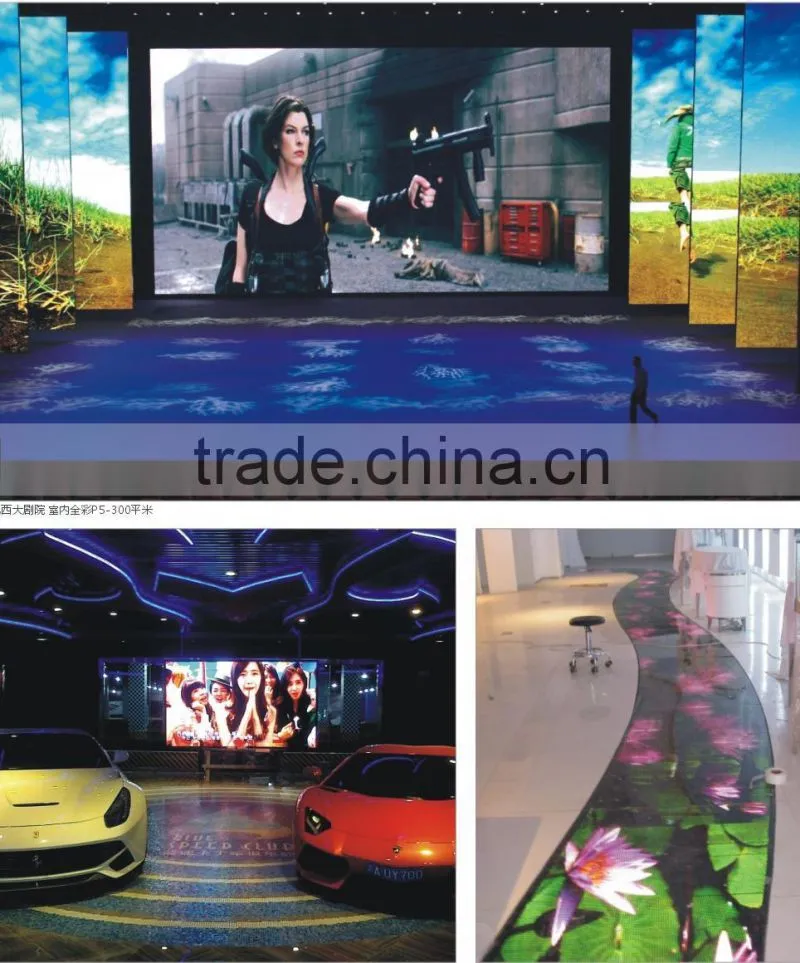

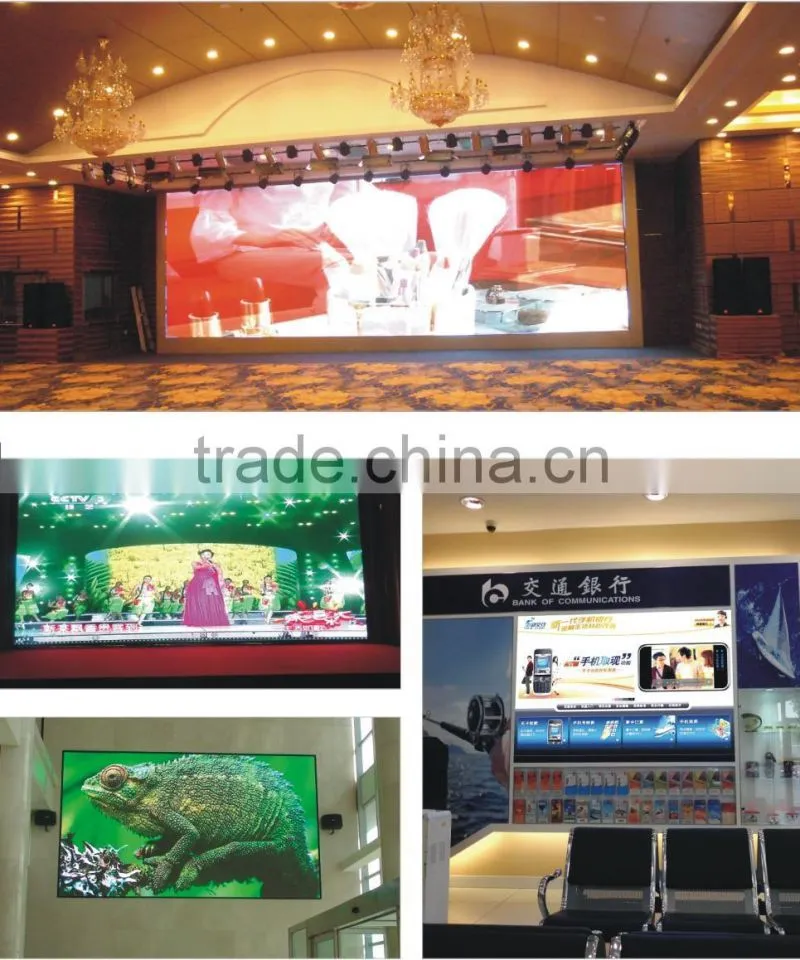

Application:



1. To attract customer by using commodity promotion.

2. To enhance enterprise status by store decoration.

3. To create absorbing impression by display high brightness & definition video.

4. To publish promotion & recuritment imformation as a large billboard.

5. To celebrate important state holidays.



CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display ModuleCE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display ModuleCE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display ModuleCE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module



Company Advantages:CE,RoHS Certification and AlGaInP Chip Material Led P10 Rgb Display Module
