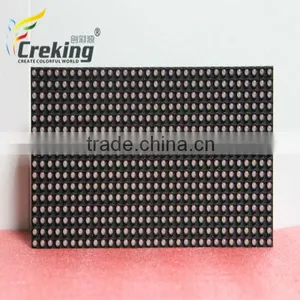

Outdoor P8 Full Color Led Display Video Led Dot Matrix Module

Wooden Case /Flight Case(Optional)

Specifications

Outdoor P8 Full Color Led Display Video Led Dot Matrix Module
High quality LED chip
Point by point correction
2Years warranty

Outdoor P8 Full Color Led Display Video Led Dot Matrix Module



Indoor LED ModuleHot-sale products:

LED Type: SMD0505/2121/3528

Led Composition: 1R1G1B

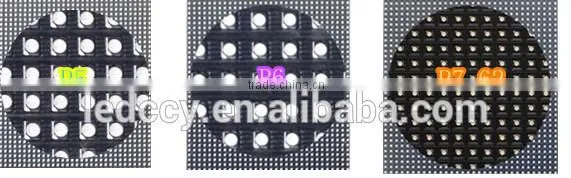

Pitch Size: 2.5mm,3mm,4mm,5mm,6mm,7.62mm,10mm,12.5mm

Brightness: ≥1000cd~1500cd/SquareMeter

Max Power Consumption: 300W~750W/ Square Meter

Module size: 160*160mm,192*96mm,128*128mm,160*160mm,192*192mm,

                      244*244mm,320*160mm,400*200mm

Module Resolution: 64*64,64*32,32*32,32*16

Protection Level: IP20

View angle(H/V): 140Deg

Best Viewing Distance: From 3~42m

LED Driving Method: 1/32 scan,1/16 scan, 1/8 scan, Constant Current

Refresh Rate: 600HZ,2400HZ(HD P3&P5)

Displaying colors: 16.7million

Lifetime: ≥50,000 hours

Operating Temperature Humidity:-20ºC to +45ºC, 10%~95%

Operating Voltage: AC95V-265V, 50~60Hz

Outdoor LED Module

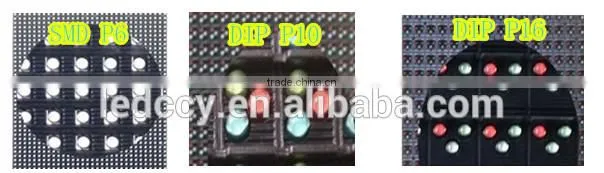

LED Type: DIP346/546,Piranha 3in1

Led Composition: 1R1G1B

Pitch Size: 6mm,8mm,10mm,12mm,12.5mm,16mm,20mm,25mm,31.5mm

Brightness: ≥4500cd~7500cd/SquareMeter

Max Power Consumption: 300W~1000W/ Square Meter

Module size: 160*160mm,192*192mm,250*250mm,256*128mm,

                      256*256mm,320*160mm,400*200mm,500*125mm

Module Resolution: 40*10,32*32,32*16,16*16,16*8,8*8

Protection Level: Front IP65, Rear IP43

View angle(H/V): 140Deg

Best Viewing Distance: From 7.5~104m

LED Driving Method:  1/8 scan, 1/4 scan, static, Constant Current

Refresh Rate: 1000HZ

Displaying colors: 16.7million

Lifetime: ≥50,000 hours

Operating Temperature Humidity:-20ºC to +45ºC, 10%~95%

Operating Voltage: AC95V-265V, 50~60Hz

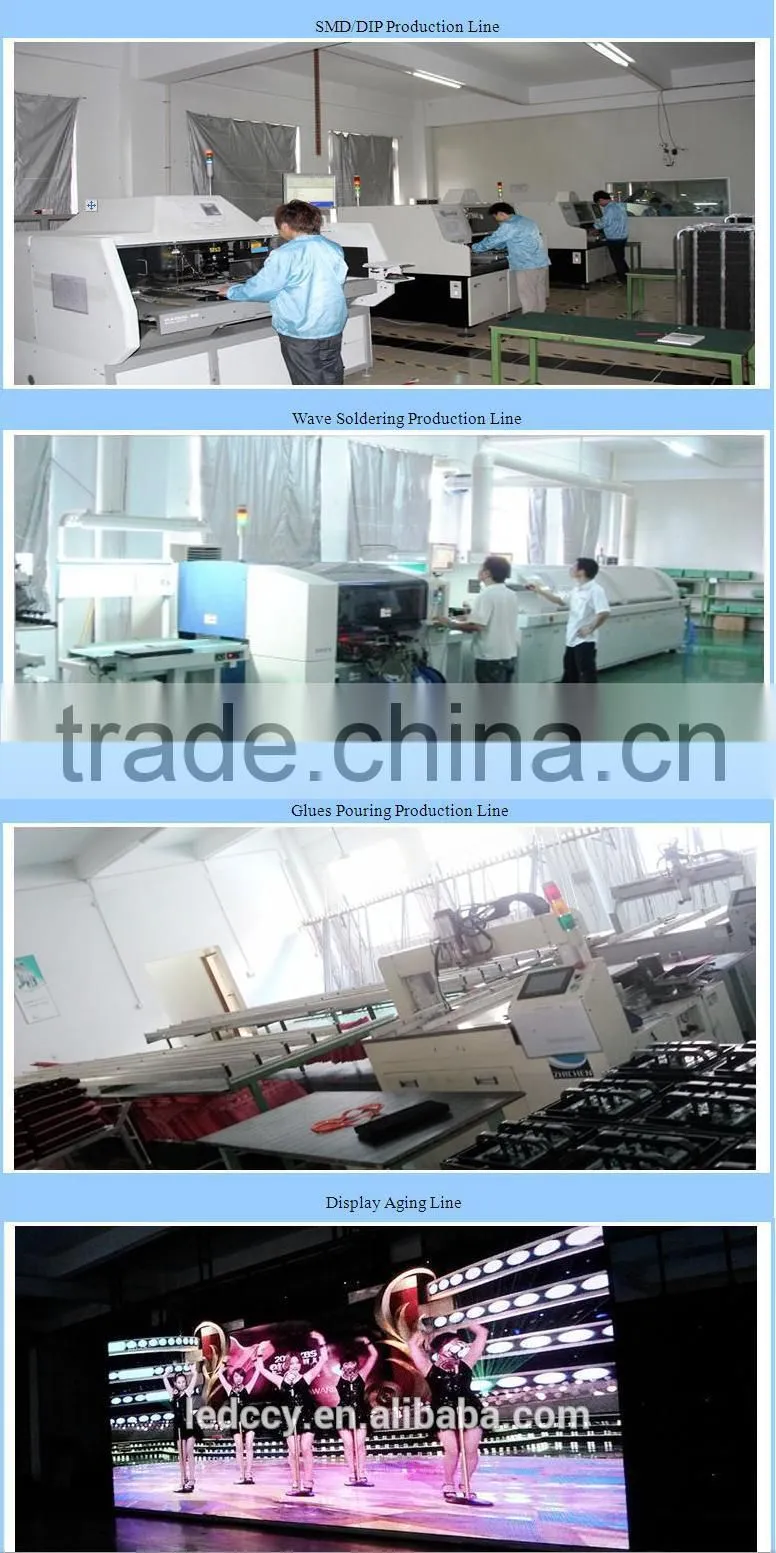

SMD Production Line

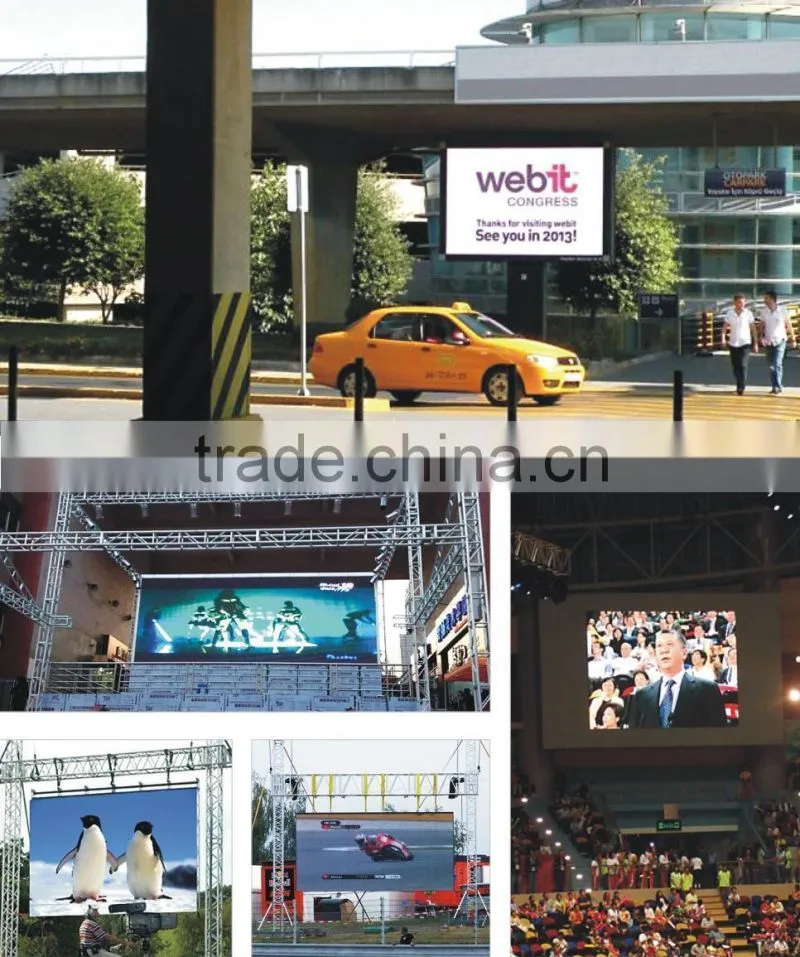

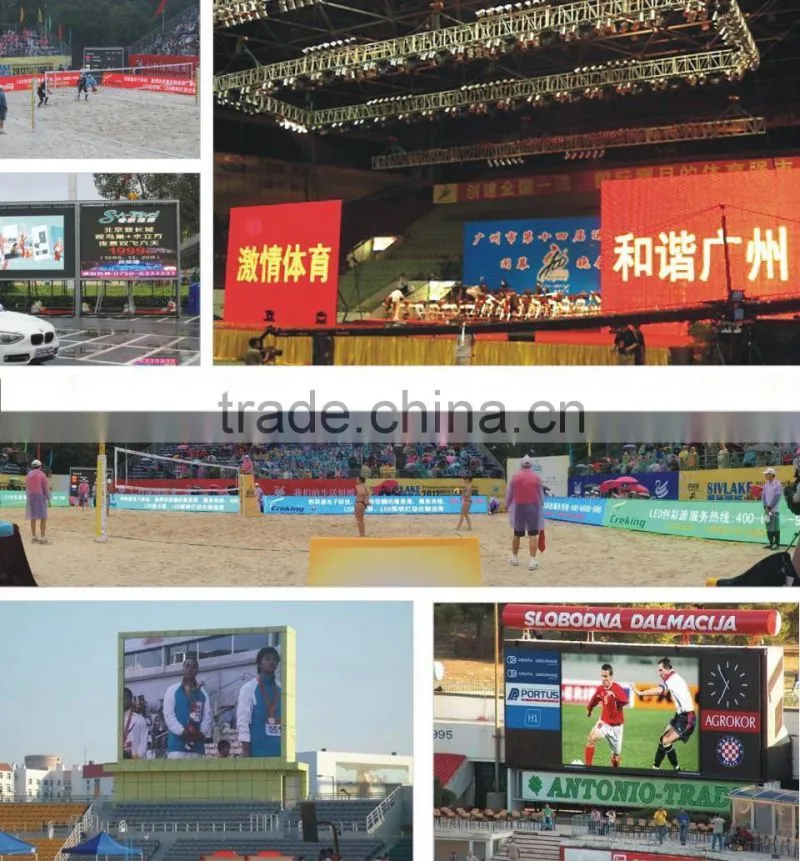

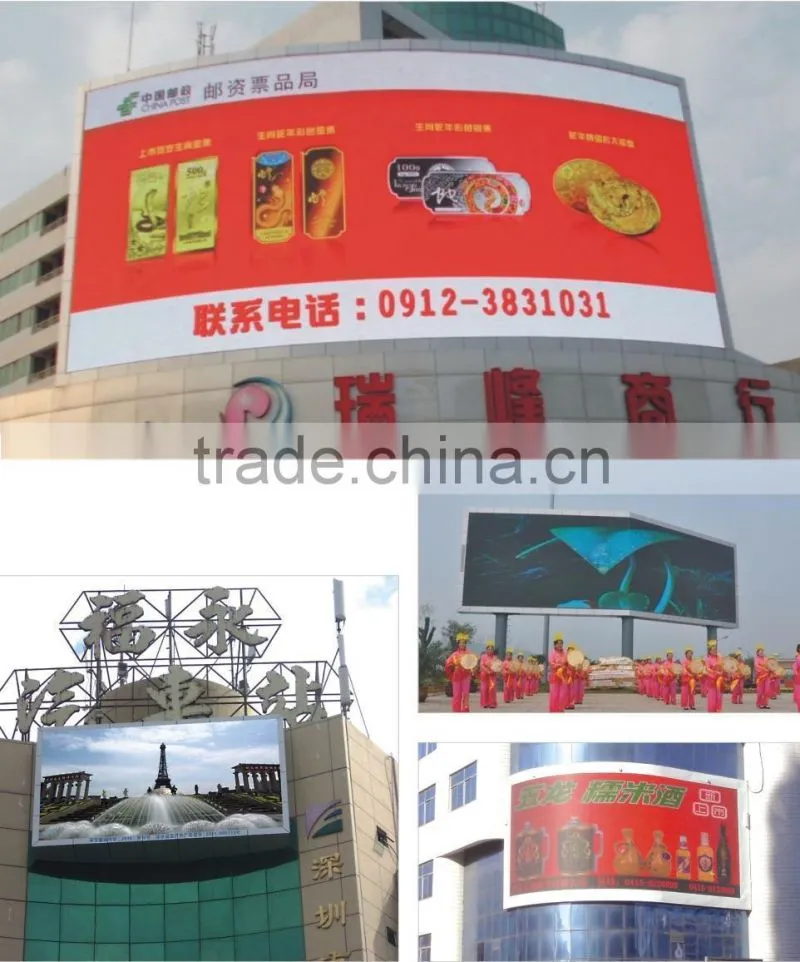

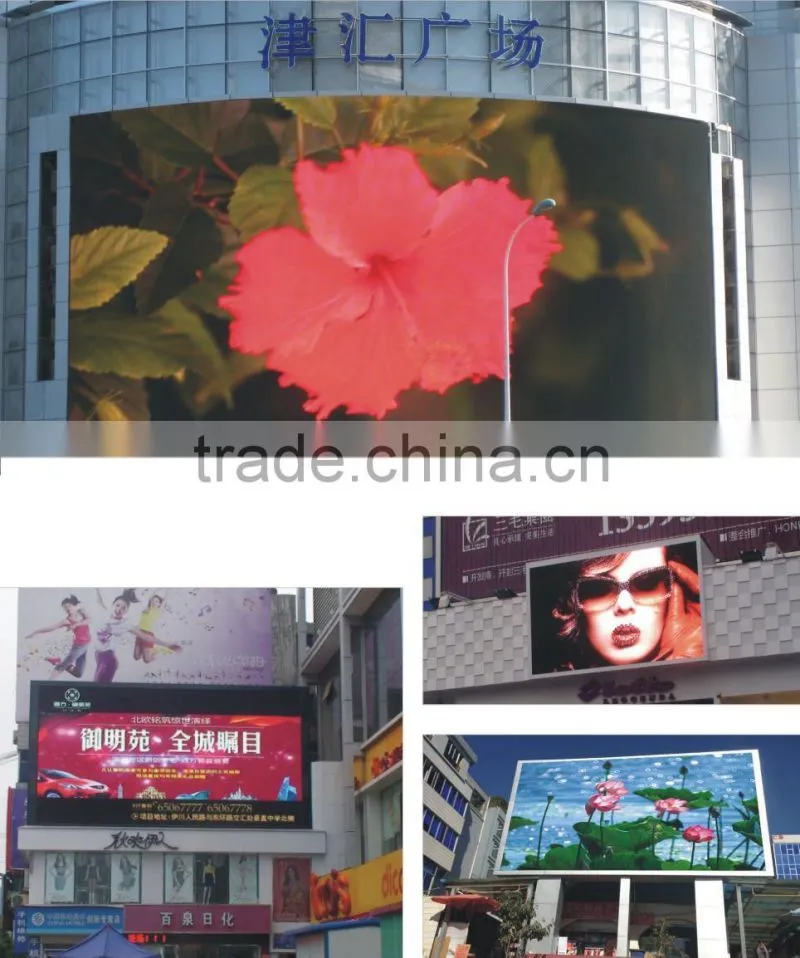

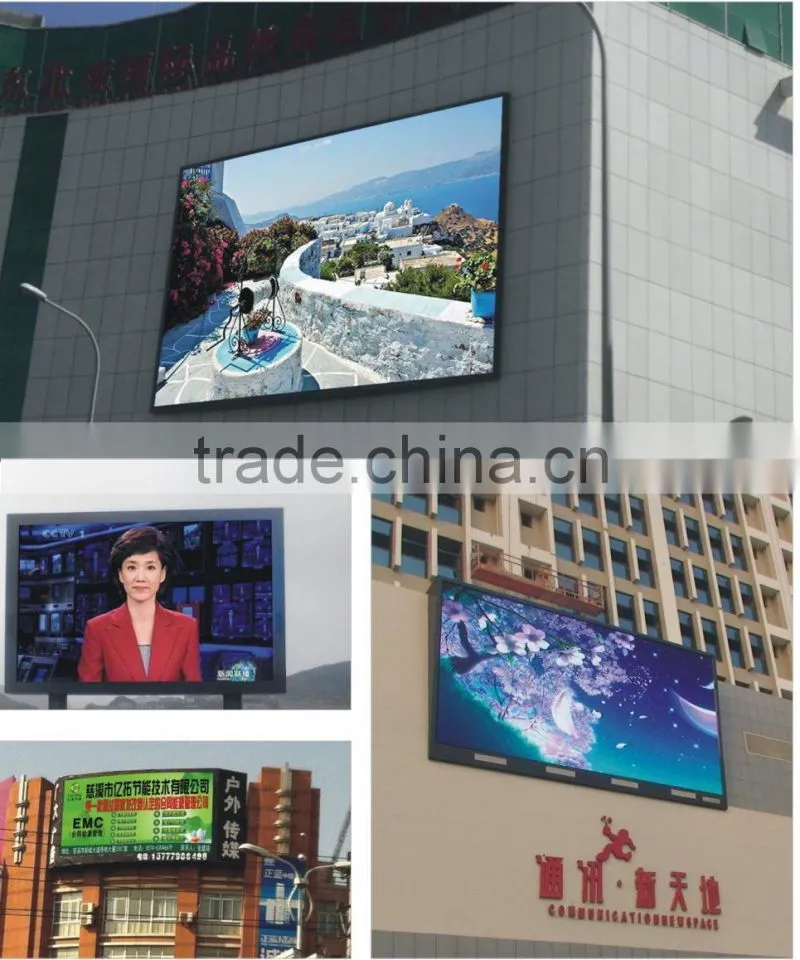

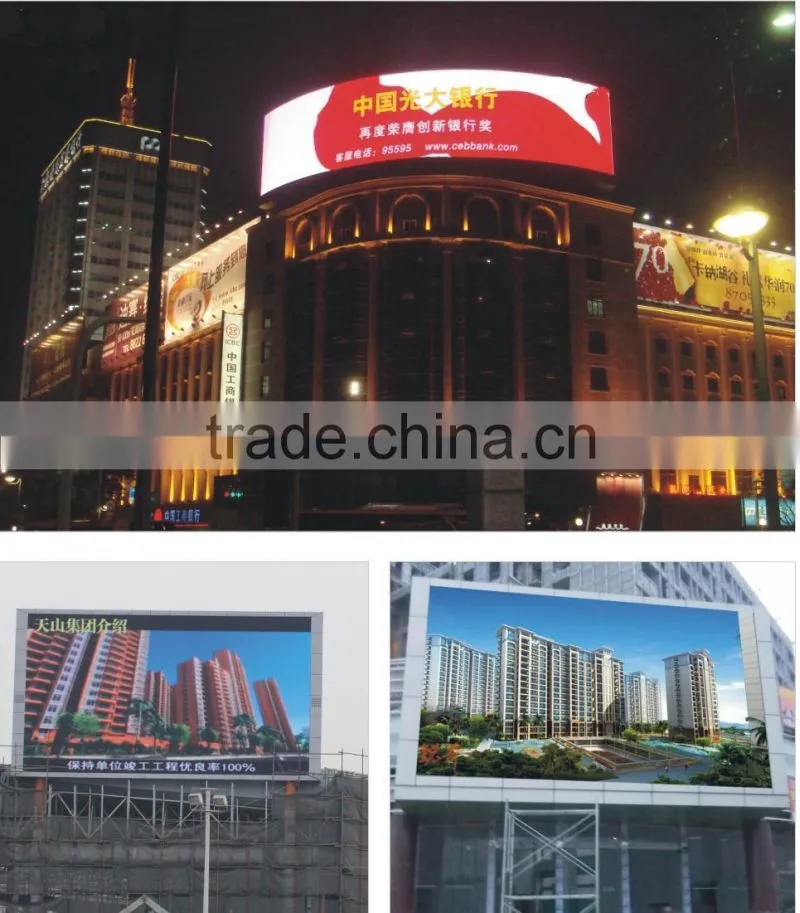

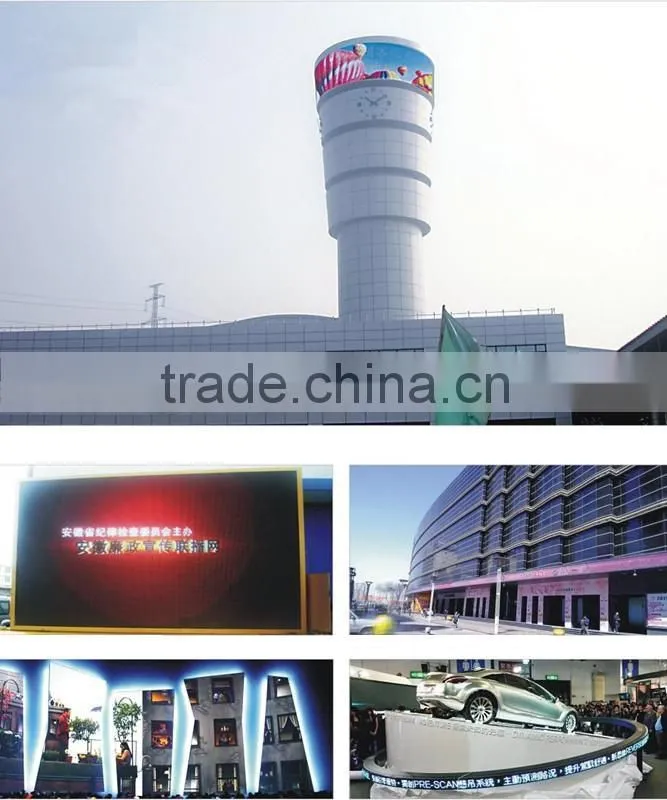

Application:
Dance floor
Indoor advertisement
Airport &Train station
Post office
Super market
Rental LED display

LED Project



Advantages:

1. High quality LED chips, ensure high brightness, large Angle, uv and antistatic etc.

2. High-end IC, can improve the grey level and refresh rate to meet the brightness requirement.
3. Energy-saving designing, makes lower power consumption, longer life span and low carbon environmental protection for clients to save electricity.
4. High resolution, can display 16.7 Million colors.
5. Pure PC material mask, highly decrease the aberration.
6. Point by point correction function, ensure the brightness of color in consistency process.
7. Aluminum alloy cabinet, can be used for rental with convenient installation.

Service:

For the better service to customer, we specify the following service process:

Pre-sale:
1) Offer product technical consultation to our customer.

2) Choose the LED module according to the size requirement of customer.
3) Design and assemble the displays to the site for users planning the field free of charge.

4) Send technical data and product instruction to customer.

In sale:
1) Guide Steal structure production.
2) Install LED display screen.

3) Train the technician for the products.

After sale:

1) Product warranty service

2) Remote telephone support.

3) Customer complaint handling.

Company profile:

More Detail Information PLS Contact:



Shenzhen CreKing Electronics Technology Co., Ltd.



Fax: 0755-29974817



Tel: 0755-29974815



Mobile phone:+86 13168083316



Skype: april-ledcreking



Website:
