Specifications

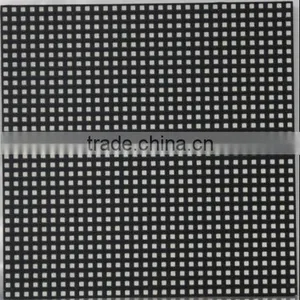

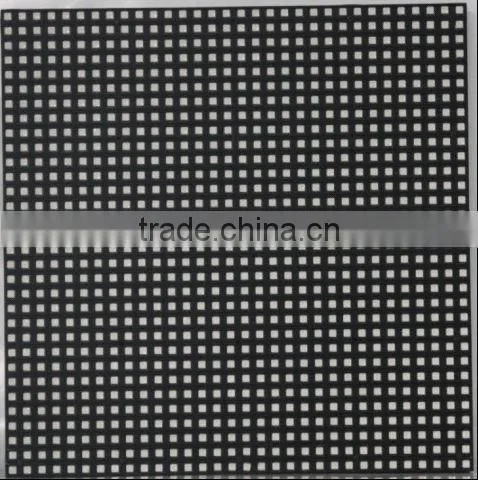

high quality and compitition price indoor SMD full color led display module1.Creking standard cabinet P5 indoor SMD full color led display module details as follow:
Pitch size |
5mm |
Module size |
160*160mm |
Module resolution |
32*32pixel |
Pixel compositive |
1R1G1B |
LED type |
3258 |
Display resolution |
4000pixel/sqm |
Working voltage |
5v |
Brightness |
>1500cd/m2 |
View angle(H/V) |
120deg |
Best viewing distance |
5-30m |
Scanning mode |
1/8duty,constant current |
Power consumption |
Max:<1500W/sqm average:<900W/sqm |

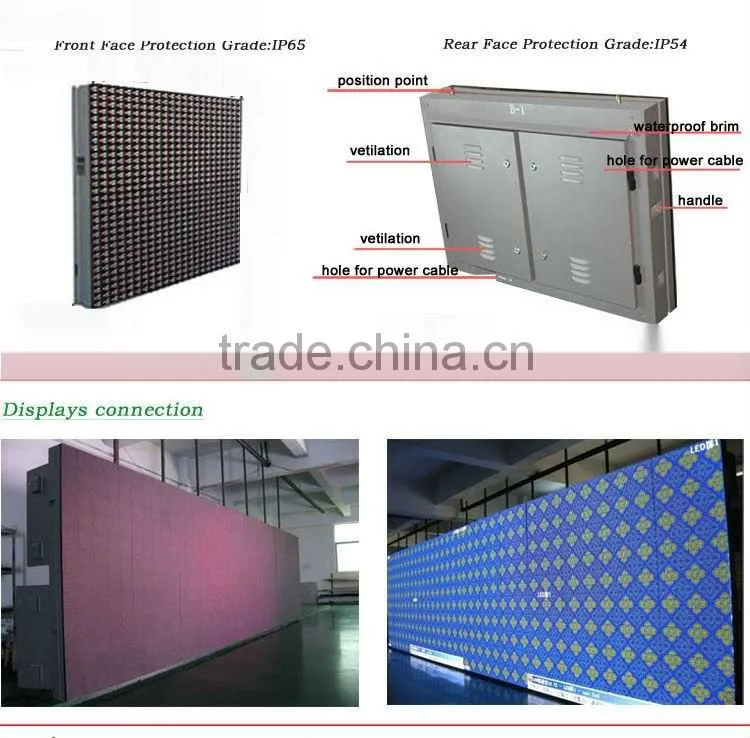

Cabinet size |
640*640mm |
Cabinet material |
Iron or Aluminum |
LED lamp type |
Nichia /Cree/Slian/Epistar |
Working temperature |
20-50 |
Woking humidity |
10-90% |
Display Function |
Video display |
certification |
RoHS |
MTBF |
>5000Hours |
2.More indoor led display moudules details:
specification |
P3 |
P4 |
P5 |
P6 |
P7.62 |
P10 |
P12.5grid |
|
Led composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Display resolution (pixel/sqm) |
111111 |
62500
|
40000
|
27777 |
17222 |
10000 |
6400 |
Pitch size |
3mm |
4mm |
5mm |
6mm |
7.62mm |
10mm |
12.5mm |
Brightness(>cd/sqm) |
>2000 |
>1600 |
>1500 |
>1400 |
1200 |
1000 |
>800 |
Max Power consumption(W/sqm) |
1800 |
1500 |
1000 |
1200 |
850 |
500 |
400 |
Driving mode |
1/16 scan,constant current |
1/8scan , constant current |
|||||
Gray Scale |
256 prades linear input,16384 grades output adjustable,100 grades brightness adjustable |
||||||
Refresh rate |
300Hz/s,>60HZ |
||||||
communication distance |
Common distance 100M(Fiber optic transmission 15000M) |
||||||
Displaying color |
16.7Million |
||||||
Display mode |
Synchronous with PC |
||||||
Life span |
>50,000 Hours |
||||||
Operation temperature and humidity |
-20 °C~45°C ,10%~95% |
||||||
Operation voltage |
110-220V,plus-minus 10% |
||||||
Controlled and opertaed by computer
Display what copmuter can display at the same time
IP65 outdoor
Modular design for easy assemble
The applications of the background led display include:
1. High-grade entertainment
2. Large-scale song and dance soiree
3. Fashion conference
4. Outdoor advertising
5. Building wall decorations etc.

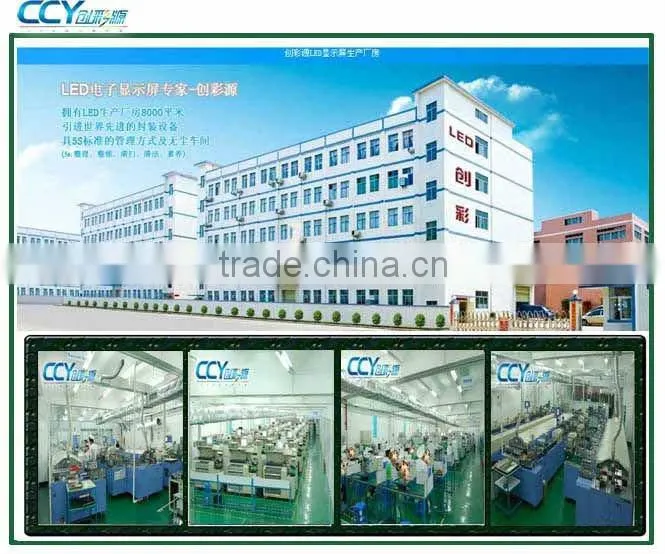

3.Shezhen led creking Electronic led display/led screen /led display mudule/oled lights company details as follow:
4.Take advantage of our led Creking company:
1.long time experience.
12 years of experience in LEDs encapsulation, and 8 years R&D and production experience in LED full color display screens.
2.High quality.
Our led are encapsutate by us . We control the led lamp quality the core of led display .That influence the life span of the screen directly. And our product have passed with CE,CCC,ROSH,FCC ,ISO2000. 80,000 no dust factory.
3.good after-sales service.
We can be available varirties of commercial led displays /stage led screen/video led display /stadium led display board/rental dispay,ect.
Welcome to visit to Shenzhen led Creking Electronic company.
