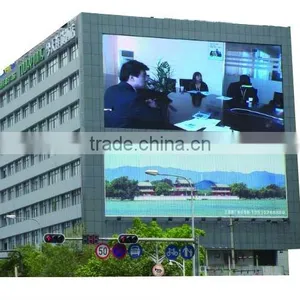

DIP full-color /outdoor led screen(P14)

Specifications

P14 outdoor LED Full-Color display
1)Ave consumption:350w/sq
2)Use life:100,000hours
3)Brightness>6000cd/sq
4)outdoor DIP





Established in 2003, the member of China Entertainment  Association,is a professional manufacturer of LED display,stage lighting. All of our products passed the  ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications .

Society of China Illumination. Our factory passed the  ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications







MHG LED DISPLAY SMT WORKSHOP:



MHG PH14 Outdoor full color LED Display

1.Measured by the China ETA Quality Inspection:It is able to work between  -40 °C to +65 °C (IP65)

2.This modle Widely used in advertising, sports,finances, post offices, telecom, commerce, hospitals, sports stadiums,airports and railwaysand other public places until now.

Specifications:



LED DISPLAY TYPE	PH14 DIP FULL COLOR SERIES OUTDOOR
Pixel pitch	14mm	Frame frequency	60-85HZ
Physical density	5102 pixels/m2	Refresh rate	240-1000HZ
LED configuration	3mm Oval lamp	Brightnessd adjustment	0-100% 8 levels automatic
Physical density	2R1G1B	Gamma correction	-5.0-5.0
Module size	244*122mm	Correction scale level	16bits
Module resolution	16*8	Color temperature	5000-9300k
Drive mode	Dynamic 1/2 Duty constant current	Brightness correction	Pixel,module, cabinet correction
Brightness	≥6000cd/m2	Contrast	≥2000:1
Control distance	UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km	Input source support	composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI
View angle	110./50.	Operating temperature	-40-65.C
Minimum view distance	14m	Operating humidity	10-90% RH
Grey scale	10bits/1024 levels	Operating life span	100,000 Hours
Color capacity	1.07 billion	MTBF	5000 hours
Maximum power consumption	1000w/M2	Protection ratings	IP65 (front side)     IP54(Back side)
Ave power consumption	250w/M2	Out of control rate	0.01%
Operationg power source	AC90-260V  50-60 HZ
