Home > Consumer Electronics > LED Display > Indoor LED Display > DIP Full-color Outdoor Led Display(PH16)

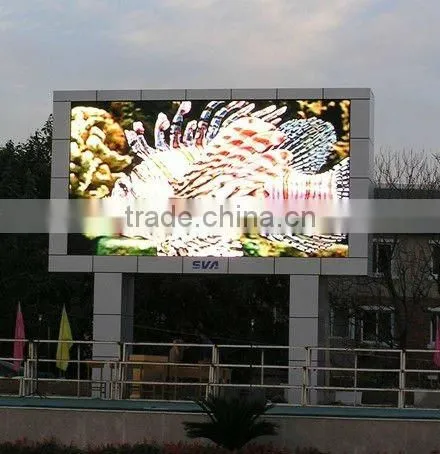

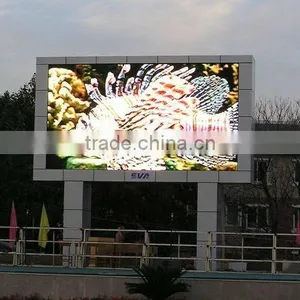

DIP Full-color Outdoor Led Display(PH16)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
MHG
Model Number:
PH16
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hunan, China
Brand Name
MHG
Model Number
PH16
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
16mm
Specifications
P10 outdoor LED Full-Color display1)Ave consumption:350w/sq
2)Use life:100,000hours
3)Brightness>6000cd/sq
4)outdoor DIP
Established in 2003, the member of China Entertainment Association,is a professional manufacturer of LED display,stage lighting. All of our products passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications .
MHG PH10 Outdoor full color LED Display
1.Measured by the China ETA Quality Inspection:It is able to work between -40 °C to +65 °C (IP65)
2.This modle Widely used in advertising, sports,finances, post offices, telecom, commerce, hospitals, sports stadiums,airports and railwaysand other public places until now.
.
Specifications:
| LED DISPLAY TYPE | PH12 DIP FULL COLOR SERIES OUTDOOR | ||
| Pixel pitch | 16mm | Frame frequency | 60-85HZ |
| Physical density | 6944 pixels/m2 | Refresh rate | 240-1000HZ |
| LED configuration | 3mm Oval lamp | Brightnessd adjustment | 0-100% 8 levels automatic |
| Physical density | 2R1G1B | Gamma correction | -5.0-5.0 |
| Module size | 256*128mm | Correction scale level | 16bits |
| Module resolution | 16*8 | Color temperature | 5000-9300k |
| Drive mode | Dynamic 1/2 Duty constant current |
Brightness correction | Pixel,module, cabinet correction |
| Brightness | ≥6000cd/m2 | Contrast | ≥2000:1 |
| Control distance | UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km |
Input source support | composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI |
| View angle | 110./50. | Operating temperature | -40-65.C |
| Minimum view distance | 16m | Operating humidity | 10-90% RH |
| Grey scale | 10bits/1024 levels | Operating life span | 100,000 Hours |
| Color capacity | 1.07 billion | MTBF | 5000 hours |
| Maximum power consumption | 1000w/M2 | Protection ratings | IP65 IP54(Back side) |
| Ave power consumption | 350w/M2 | Out of control rate | 0.01% |
| Operationg power source | AC90-260V 50-60 HZ | ||
MHG LED DISPLAY SMT WORKSHOP:
MHG‘s HONOR CERTIFICATIONS
MHG SUCCESSFUL CASES:
