Home > Consumer Electronics > LED Display > Indoor LED Display > Indoor Curtain Wall Led Display(PH20)
Indoor Curtain Wall Led Display(PH20)
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
MHG
Model Number:
PH20
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hunan, China
Brand Name
MHG
Model Number
PH20
Usage
Indoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 20m
Specifications
1)Ave consumption:100w/sq2)Use life:100,000hours
3)Brightness>2500cd/sq
4)work:-40.C--65.C
Established in 2003, the member of China Entertainment Association,is a professional manufacturer of LED display,stage lighting. All of our products passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications .
MHG LED DISPLAY SMT WORKSHOP:
MHG‘s HONOR CERTIFICATIONS

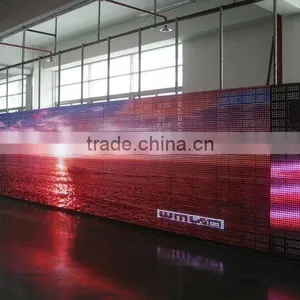

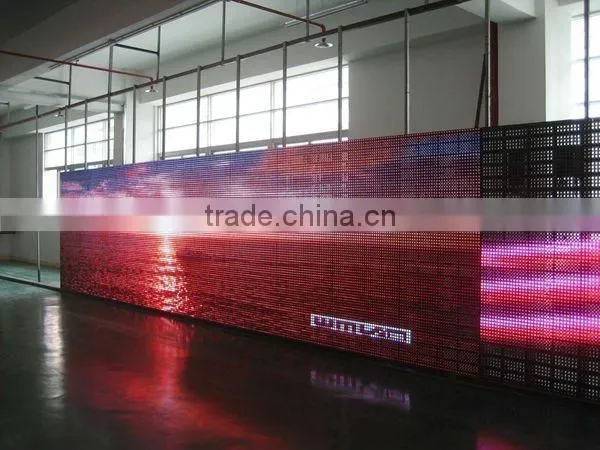

MHG PH20 indoor Curtain wall
1.Measured by the China ETA Quality Inspection ,CE,FCC,ROHS,ISO9001/2008 etc
2.This modle Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places until now.
Specifications:
| LED DISPLAY TYPE | PH20 indoor curtain wall (INDOOR) | ||
| Pixel pitch | 20mm | Frame frequency | 60-85HZ |
| Physical density | 2500 pixels/m2 | Refresh rate | 240-1000HZ |
| LED configuration | SMD3528 | Brightnessd adjustment | 0-100% 8 levels automatic |
| Physical density | 1R1G1B | Gamma correction | -5.0-5.0 |
| cabinet size | 320*160*40mm, 5.5kgs | Correction scale level | 16bits |
| Module resolution | 16*8 | Color temperature | 5000-9300k |
| Drive mode | Dynamic 1/2 Duty constant current |
Brightness correction | Pixel,module, cabinet correction |
| Brightness | ≥1800cd/m2 | Contrast | ≥2000:1 |
| Control distance | UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km |
Input source support | composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI |
| View angle | 110./50. | Operating temperature | -40-65.C |
| Minimum view distance | 20m | Operating humidity | 10-90% RH |
| Grey scale | 10bits/1024 levels | Operating life span | 100,000 Hours |
| Color capacity | 1.07 billion | MTBF | 5000 hours |
| Maximum power consumption | 250w/M2 | Protection ratings | IP65(front) IP54(Back side) |
| Ave power consumption | 100w/M2 | Out of control rate | 0.01% |
| Operationg power source | AC90-260V 50-60 HZ | ||
LED DISPLAY CABINENT:
MHG SUCCESSFUL CASES:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
10,000-30,000 square meters
Total Employees
301 - 500 People
