Product Details
Place of Origin: | Guangdong, China | Brand Name: | Minghe | Model Number: | P10 Led dance floor |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Other, Video, vivid video |
Pixels: | 10mm | Screen Dimension: | customized, 320*160*48 mm |
Product Description
Video led dance floor is used as LED floor screen, it adopts durable aluminum alloy with high wear-resistant resin mask so that people can walk on it directly. Its standard SMD 3 in 1 sealed technology ensures every light unit includes red, green and blue color to display 1.07 billion kinds of colors. The LED floor display can display vivid video and static images in real-time with perfect display effects.
It supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.
This item advantages in high reliability, with saturated and uniform color, hight brightness, low consumption, long service life and with wide angel sight. So the LED floor display is widely used in many indoor sites, such as show rooms, coffee house, hotel, stage, shopping mall, parking area, business building etc.
MHG is the biggest professional manufacturer of LED displays in China Southcentre.The manufacturing products include kinds of leds, such as led screens, led lights,varies of stage lighting fixtures and so on, which are widely used for stages,TVs,Studios, Advertisement, shopping malls etc.
Specification and Parameter
Technical DataModel | PH10 | PH16 |
Pixel Pitch | 10mm | 16mm |
Physical Density | 1000 pixels/m2 | 3096 pixels/m2 |
LED Shape & Size | 3528 SMD 3 in 1 | SMD5050 |
LED Arrangement | 1R1G1B | 1R1G1B |
Module Size(mm) | 320×160×48 | 256×128×48 |
Module Resolution | 32*16 | 36*18 |
Drive Mode | Static Constant Current | Static Constant Current |
Weight /M2 | 30kg | 28kg |
Load Bearing /M2 | 1.5T | 1.5T |
Brightness | ≥1500cd/m2 adjustable | ≥2500cd/m2 adjustable |
View Angle | Horizon≥120°/Vertical≥120° | Horizon≥120°/Vertical≥120° |
Contrast | ≥2000:1 | ≥2000:1 |
Minimum View Distance | 10m-15m | 18m-150m |
Maximum Power Consumption | 680w/M2 | 580w/M2 |
Color Capacity | 1.07 billion | 1.07 billion |
Operation Power Source | AC220V 50HZ | AC220V 50HZ |
Brightness Adjustment | 0-100% 8 levels automatic | 0-100% 8 levels automatic |
Gamma Correction | -5.0-5.0 | -5.0-5.0 |
Correction Scale Level | 16bits | 16bits |
Grey Scale | 4096 levels | 4096 levels |
Frame Frequency | ≥60HZ/s | ≥60HZ/s |
Refresh Rate | ≥400HZ/s | ≥400HZ/s |
Control Way | Computer control, Video synchronization, Real time show | Computer control, Video synchronization, Real time show |
Operating Temperature | -20°C - 50°C | -20°C - 50°C |
Operating Humidity | 10-90% RH | 10-90% RH |
Protection Ratings | IP65 | IP65 |

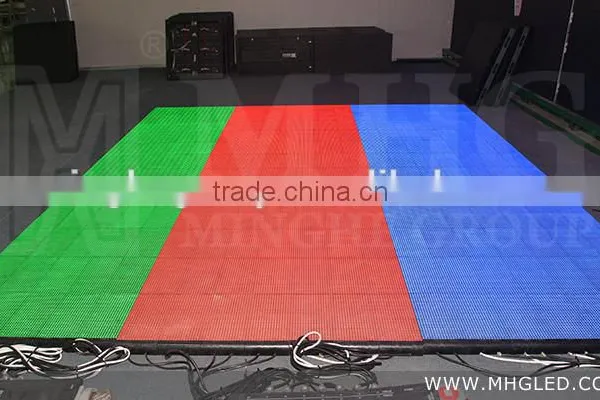

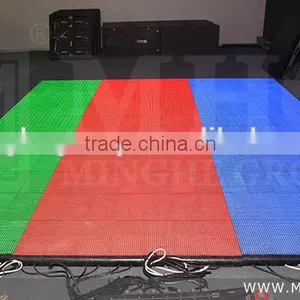

Items pictures

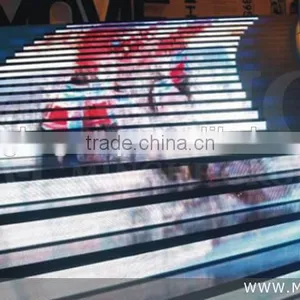

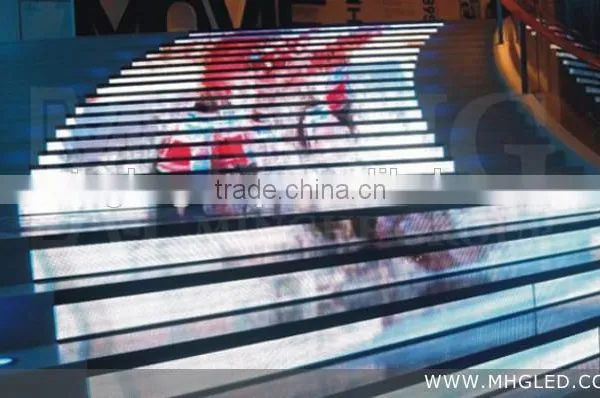

Display effect & Successful case
P10 LED floor display: 2012 Science and Technology Achievements Transformation Fair
Main Display specs: 160*320mm, 26 m²
Package
CE & Rohs certified
LED Display Workshop
Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
