Pressure Switches

Pressure Switches thumbnail-1
Pressure Switches photo-1
US$ 50 - 165 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
DETAIL
Model Number:
DPT821
Contact Supplier Request Quote Chat Now
Hunan Detail Sensing Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name DETAIL
Model Number DPT821



Product Description

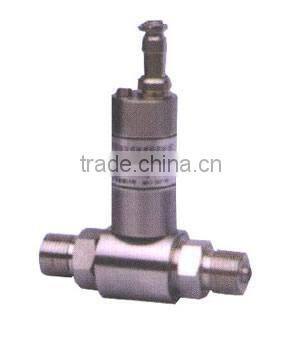

Pressure Switches







Model:DPT821 differ pressure switch



 pressure switches



Apply to controlling pressure of air, liquid, oil in in metallurgy,machanism, liquid, electric power… Industry.







Characteristic:adjusted in zero~full load,Use with Pressure Transducer,High precision and high response,High trustiness with signal,ExibIICT6





Technology parameter:



Set Precision:

≤0.5%F.S

Set repeat:

≤±0.5%F.S max

Set pressure value:

Mpa ON:  LED light; Mpa OFF: LED trun off.

Adjust range:

(0-2,10,50,100,200,600,)Kpa

Execute voltage:

12V DC/24V DC

response time:

≤2ms( or order by customer)

Switch frequency:

≥1000/S

load:

Output ON≤40 mA; output OFF≤15mA

Set temperature excursion:

≤±0.5%40ºC F.S max

Load capability:

(0)photoelectricity coupling: 20mA/30V DC

CMOS relay

80mA/220V AC

Electromagnetism relay

2A/220V AC

work temperature:

.-20ºC-+80ºC

Water proof grade

IP54

Explode proof grade

ExiaIICT6

connector thread:

M12×1

House:

1Cr18Ni9Ti

Dimension



 pressure switches

Use reference:

  1. 1. Install switch on system, connect the wire as below

Red: power+; Yellow: Power-; Blue: Output+;    White: Output-.

  1. 2. Adjust the pressure input, set the right pressure point. Start to test after the pressure point is stability.
  2. 3. Refer to LED status, set relay.

If LED off, contrarotate relay, until LED on.

If LED ON, deasil trun relay, until LED OFF.

  1. 4. Adjust pressure input point to set value

Less than set value, LED OFF,output trun off.

More than set value, LED ON, output trun on.





Packaging & Shipping



Price, Package and Service



1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-20 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty





Our Services



1. Customized Product

Detail Sensing provides OEM Pressure Sensors and Custom-Design services.

With know-how technique and mass production capability, we are able to provide the specified sensing solution according to

customer's application.

2. Quality Guarantee

We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.

3. Shipment & packing

Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required.  By plane or by ship is available, too. Please discuss details with our sales.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

4. Contact us

We have an active and experienced sales team to serve you on technical questions and business issues.

Just leave us message or click the Online Service for questions and enquiries.

Within 24 working hours, we will come to you at the first time!





Company Information



pressure switches





FAQ



How to place an order

In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please complete the following information and send to our sales when you are going to make an inquiry, thanks!


1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
