Specification:
1) high brightness,waterproof,no noise
2) easy to install and maintenance
3) high degree of protection
4) low power consumption
P10 outdoor curved led video display/High brightness waterproof xxx video curved led screen
Outdoor curved LED display advantages:
|
No noise design Installing free air conditioning, no fan, save electricity saving energy; |
|
High protection grade The case for sealing box, suitable for outdoor display screen installation, ventilated, waterproof, strength, good flatness, protection grade reaches IP65 |
|
Quick Setup Reasonable structure design, which can realize fast installation |
|
Stable property As market maturity high normal product, the product performance is stable, can be widely used in outdoor square, outdoor concerts, outdoor activity, etc. |
|
Good compatibility Applicable to outdoor full-color module p8, p10, p12, p16, p20, p25 |
Smaller pixel pitch leads to higher definition in certain screen area, so that a clearer display effect.
Superb cost effectiveness offers you both top notch quality and reasonable price, maximizing the value of your investment.
Outdoor curved LED Display Parameter
Specification |
P6 |
P8 |
P10 |
P12 |
P12.5 |
P16 |
P20 |
P25 |
LED composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
2R1G1B |
Pixel density(dot/m2) |
27777 |
15625 |
10000 |
6944 |
6400 |
3906 |
2500 |
1600 |
Pitch size |
6mm |
8mm |
10mm |
12mm |
12.5mm |
16mm |
20mm |
25mm |
Brightness(cd/m2) |
≥5000 |
≥6000 |
≥7500 |
≥6500 |
≥6000 |
≥8500 |
≥6000 |
≥5000 |
Max power comsumption(w/m2) |
900 |
1000 |
1000 |
800 |
600 |
800 |
650 |
300 |
LED type |
SMD3535 |
SMD3535/DIP246 |
DIP346 |
SMD3535 |
DIP546 |
|||
Module size |
192*192MM |
256*128MM |
132*160MM |
192*192MM |
500*125MM |
256*256MM |
320*160MM |
400*200MM |
Module resolution |
32*32 |
32*16 |
32*16 |
16*16 |
40*10 |
16*18 |
||
Protection level |
IP67 |
|||||||
View angle(H/V) |
120Deg-140Deg |
|||||||
Best viewing distance |
6-200M |
8-200M |
8-300M |
10-300M |
12-300M |
15-300M |
20-140M |
25-400M |
Driving mode |
1/8scan,constant current |
1/4 scan,constant current |
1/2scan |
Static,constant current |
||||
Gray scale |
256 grades linear input,16384 grades output adjustable,100 grades brightness adjustable. |
|||||||
Refresh rate |
1000Hz |
|||||||
Communication distance |
common distance 100M(Fiber optic transmission 15000M) |
|||||||
Displaying color |
16.7Million |
|||||||
Displaying mode |
Synchronous with PC |
|||||||
Life span |
≥100000h |
|||||||
Operation temperature and humidity |
- 20°C~+45°C,10%~95% |
|||||||
Operation voltage |
110-220V±10% |
|||||||

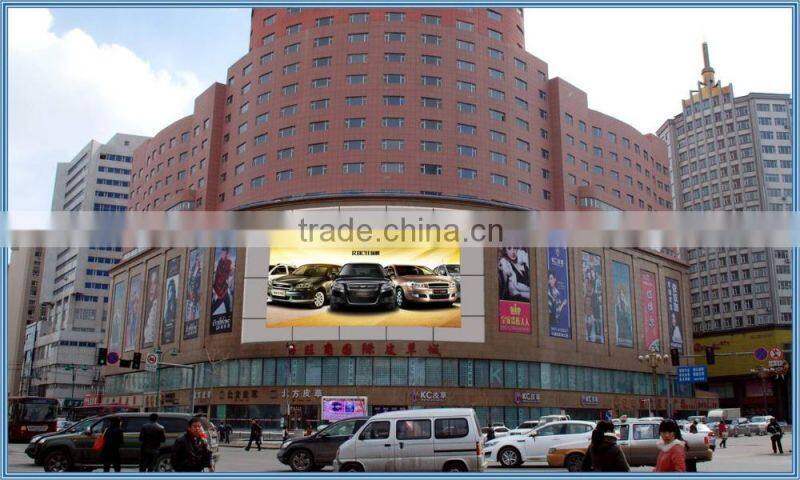

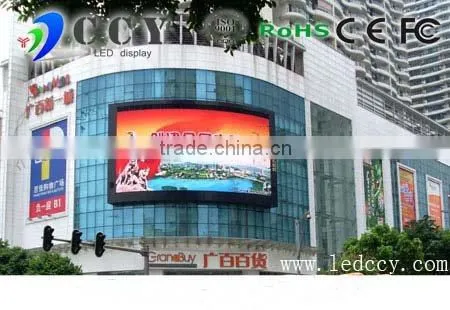

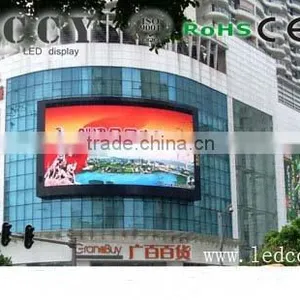

Successful case
why choose our product?
1.Long time experience,5 years of experience in LEDs encapsulation, and 11year R&D production experience in LED full color display screen.
2.We have the world's most advanced automatic LED packaging production
equipment.
3.All of our products with CE/FCC/CCC and RoHS approved,as well as the ISO
9001:2008 quality systerm certification.
Exhibition
Packaging & shipping
