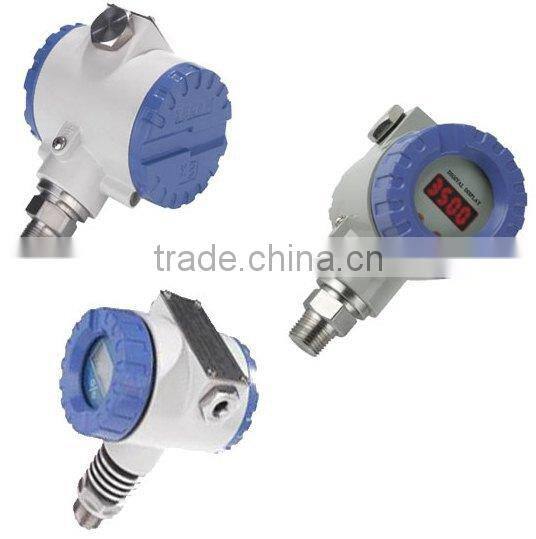

Industrial Housing Pressure Transmitter
Category:Industrial Housing Pressure Transmitter
Range:-20kpa~0~100kpa~2000bar
Signal Output:1.0mv/v,2.0mv/v,100mv/FS,0-5vdc,0-10vdc,4-20mA
Pressure Type:Gauge pressure,Vacuum pressure,Absolute pressure
Work Temperature:-40ºC~0 ºC~80 ºC~125 ºC~250 ºC~400 ºC
|
|
Technology parameter: |
|
capability range |
0~5,100,500,800,1000KPA, 0~2,10……200MPA |
pressure type |
Gauge pressure, Absolutely pressure |
signal output(mA/v) |
pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V |
Full load output(mV) |
30~60~120 |
Zero point output(mV) |
≤20 |
Precision |
0.1, 0.2, 0.3 |
sluggish repeat (nor-linearity)(%FS) |
≤0.1, ≤0.2, ≤0.3 |
excursion at zero point (%FS/4h) |
≤0.1, ≤0.2, ≤0.3 |
temperature excursion(zero & delicacy)(%FS/ºC) |
≤0.01, ≤0.02, ≤0.03 |
long term stability(%FS/year) |
≤±0.1;≤±0.3 |
execute voltage (V) |
pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V) |
temperature compensate (ºC) |
-20~+80 |
work temperature (ºC) |
-60~+200 |
Overload (%) |
300 |
load resistance (Ω) |
R=(U-12.5)/0.02-RD U=POWER SUPPLY,RD=Wire resistance |
Life |
>1×108pressure cycle(25ºC) |
response time(ms) |
≤1 |
Measure medium |
316Lcompatible with causticity medium |
Film |
Titanium film |
House |
1Cr18Ni9Ti and aluminum alloy |
Connect thread |
M20×1.5 or order by customer |
explosion proof grade |
ExibIICT6 |
water proof grade |
IP67 |
Dimension |
|
| |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
How to place an order
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please complete the following information and send to our sales when you are going to make an inquiry, thanks!
1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
