Melt Pressure Tansducer with vertical tube , plug connect, Pressure Sensor, Pressure Transducer
Model |
DPT124-111 (melt pressure -Vertical tube – plug connect) |

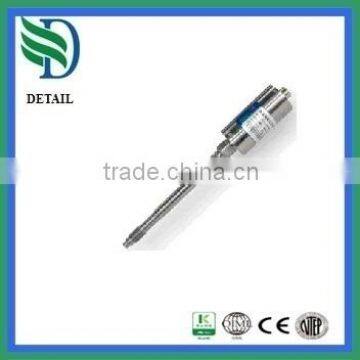

Picture |
|
Apply to |

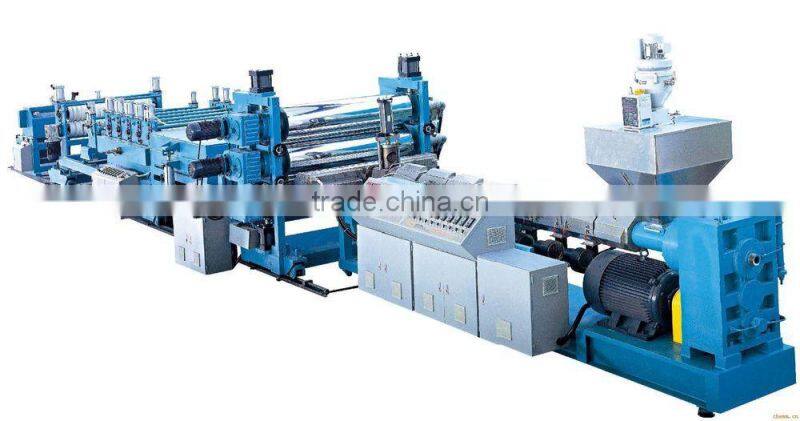

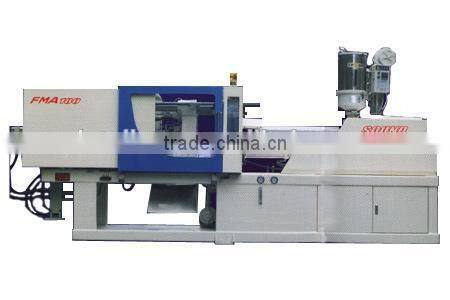

Apply to melt pressure measuring and controlling of equipment in rubber, plastic and chemical industry.
|
characteristic |
Precision more than 0.5%FS stainless steel housing Self-adjust 80% High stability Repetition |
Capability range: |
0~5MPa~200MPa(ODPTion ) |
Signal output: |
Pressure transducer: 0~5V; 0~10V; 4~20Ma. Pressure Transducer: 2mV/V |
Precision: |
±0.5%FSO |
Power supply: |
Pressure transducer:24VDC (12~36)VDC; Pressure Transducer: 10VDC |
Repetition: |
±0.2%FSO |
Electronic frame: |
FST bridge |
Bridge resistance: |
350 ohms±10% |
Thermocouple type |
NA |
Overload pressure: |
2*FSO |
Self-adjust: |
80%±1% |
Insulated resistance: |
1000Megohms @50Vdc |
Film max temperature: |
400ºC |
Electr-connector: |
5Core pluger,Or order by customer |
Port connector: |
1/2″-20UNF, M14*1.5Or Design by customer |
Wire Frame | |
|
|
||||||||||||||||||
|

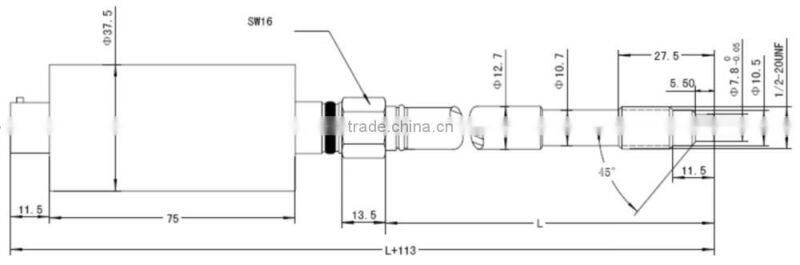

Dimension
| |||||||||||||||||||
| |||||||||||||||||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to
customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
How to place an order
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please complete the following information and send to our sales when you are going to make an inquiry, thanks!
1. Pressure type (gauge pressure, Absolute pressure, negative pressure):
2. Pressure Range (-1bar to 0-6bar-16bar-160bar-8000bar):
3. Measure medium (air, oil, water, melt):
4. Medium temperature (-250~-20~0~40~100~150~350~600~800~1200c):
5. Work voltage (3vdc, 5vdc, 10vdc, 24vdc):
6. Analog Signal output (mv/v, 0-5vdc, 0.5-4.5vdc, 0-10vdc or 4-20mA):
7. Thread size (M type G type, NPT, UNF):
8. Elect. Connector: (AMP, Hirschman, Sealed thread, Packard, other):
9. Wire length (0-100m):
10. Digital signal output (RS232, RS485, HART, BUS CAN):
11. Material (steel, aluminum):
12. Location display (point dial, LED, LCD):
13. Explosion proof:
14. Anti-corrosion:
15. Purchase quantity:
