Home > Consumer Electronics > LED Display > Indoor LED Display > CCY Outdoor Advertising P16 Full Color VGA Display

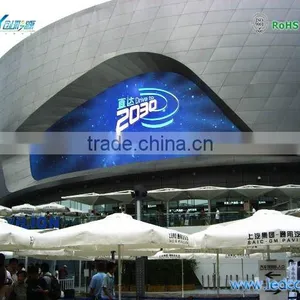

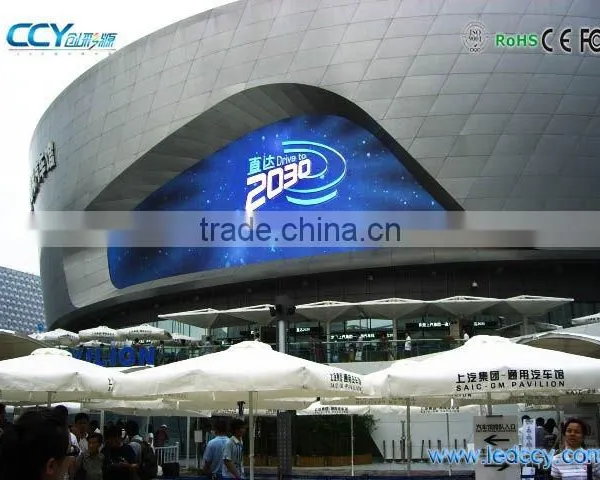

CCY Outdoor Advertising P16 Full Color VGA Display

US$ 960 - 1,560 MOQ: 2 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

CCY

Model Number:

CCY-acr-shape-002

Contact Supplier Request Quote Chat Now

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name CCY

Model Number CCY-acr-shape-002

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 16mm

Specifications

CCY PH12 Arc-shaped led display:
1)CE,RoHS certificate
2) professional led displa
y3) competitve price4)high brigtness

The brief introduction of CCY:
Let me give you a brief introduction about my company,We CCY which specialize in indoor and outdoor fullcolor led display and other Peripheral LED product with 8 years,now our factory was 15000sqm. has 5 floors, 5 floor is office, 4 floor is for led tube encapsulation,and 1-3 floor for assembling and test.we are one of 5 biggest factory of encapsolution in shenzhen China, we have been adpoting the 12 full automatic die boonders of Japanese's Panasonic equipment to producing our led tube,6 the USA modern AMS DIP machines, 3 big SMT machines(import from Korea Sunsung), 2 Juki high temperature wave-soldering machine, and 1 RF-H880 Reflow Soldering Machine.4 red rays QC machine,Auto silicon sealing machine,even-power mask putting machine,all of which makes sure that we have a production capacity of 5000sqm per month of good quality and delivery time was we promised.

Technical Parameters:
Item No./Model	PH10
Pixel Composition:	2R1G1B
Pixel Pitch(mm)	10
Pixel Density(dots/m2)	10000
Brightness(cd/m2)	2000
Viewing Distance(m)	≥10
View Angle	H:150°,V:150°
Gray Scale(level)	4096
Display Card	DVI card
Control Mode	Synchronous
Drive Mode	Static constant current
Refresh Rage Rate(HZ)	420
Working Temperature(°C)	-25-- +85°C(for working)
Working Humidity	10%-95%RH
Model Size(mm)	320*160
Cabinet Size(mm):	960*640
Cabinet Dimension(m2)	0.614
Cabinet Weight(KG)	38
Cabinet Resolution(dots)	96*64
Cabinet Material	Steel/Aluminum
Lifespan	100,000 hours

Outdoor advertising screen refers to the red, green and blue LED lights composition, white balance, and can display 16,777,216 colors are capable of real-time, simultaneous display of various information, such as two-dimensional or three-dimensional animation, video, TV, DVD and on-site a variety of live video content. Outdoor advertising display outdoor display of the most widely used one type, characterized by large angle, high brightness, colorful and attractive, long life and energy-saving and so on, the display can be synchronized with the computer display Chinese characters, English text and graphics; video display screen using micro-computer control, graphics, images, and Mao, to real-time, synchronization, clear message to the broadcast of a variety of information dissemination, but also shows two-dimensional, three-dimensional animation, video, TV, VCD programs and on-site live. LED screen display colorful, three-dimensional sense of strong, static, such as painting, moving, such as movies.

LEDoutdoor full color display cabinets features

Led outdoor display metal drawing die box, a unified cabinet and module size, can realize a single point of LED brightness and color correction, the entire screen to achieve IP65 protection grade.

LEDoutdoor full color display driver features

Outdoor advertising screen has a real point and the virtual two kinds of drive mode, the virtual pixel display control technology, using pixel means the reuse of control technology, the display image, the same points than the actual pixel display a fourfold increased clarity , high cost performance. Virtual-pixel screen only needs corresponding to the real pixel 1 / 4 area; the image can show the same effect and is today the latest LED technology and control theory. A. LED Pixel LED pixel decomposition principle of decomposition (also known as virtual pixel) technology is the adoption of LED multiplexing, with an LED light tube, LED light tubes can be adjacent to four times combined (the lower, left, right combination , see legend)
