Specifications:
1) No noise design
2) easy to install and maintenance
3) high degree of protection
4) low power consumption

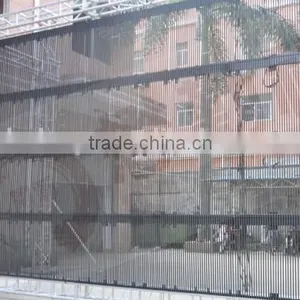

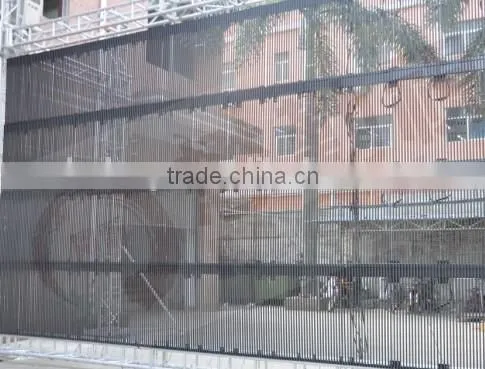

High brightness outdoor grid SMD led display/p10 transportation led video curtain display
Outdoor LED Grid display advantages:
1.Smaller pixel pitch leads to higher definition in certain screen area,so that a clearer display effect.
2.Superb cost effectiveness offers you both top notch quality and reasonable price, maximizing the value of your investment.
3.High quality SMD LED lights can keep a long life span that over 80000 hours.
4.Lightweight,high flexibility,super slim for easy assembly and saving installation time.
5.Waterproof,no noise design,seamless splicing and high degree of protection.
6.Good ventilation,there is no need use air condition.
Outdoor Full Color Grid LED Display Parameter
Specification |
P10 |
P12 |
P12.5 |
P16 |
P20 |
|||
LED composition |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|||
Pixel density(dot/m2) |
10000 |
6944 |
6400 |
3906 |
2500 |
|||
Pitch size |
10mm |
12mm |
12.5mm |
16mm |
20mm |
|||
Brightness(cd/m2) |
≥7500 |
≥6500 |
≥6000 |
≥8500 |
≥6000 |
|||
Max power comsumption(w/m2) |
1000 |
800 |
600 |
800 |
650 |
|||
LED type |
SMD3528/DIP546 |
|||||||

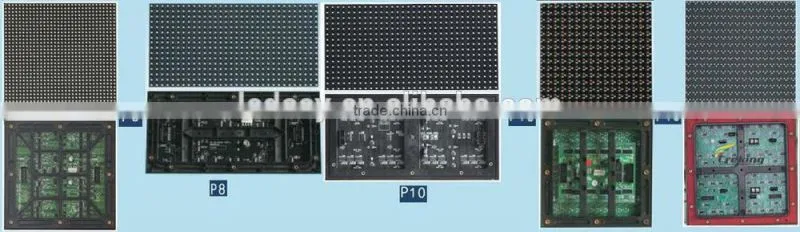

Module size |
320*160MM |
192*192MM |
500*125MM |
256*256MM |
360*160MM |
|||
Module resolution |
32*16 |
16*16 |
40*10 |
16*8 |
16*8 |
|||
View angle(H/V) |
140Deg |
|||||||
Protection level |
IP67 |
|||||||
Best viewing distance |
8-300M |
10-300M |
12-300M |
15-300M |
20-300M |
|||
|
Driving mode
1/16 scan,constant current |
1/4 scan,constant current |
1/2 scan |
static,constant current |
|||||
Gray scale |
256 grades linear input,16384 grades output adjustable,100 grades brightness adjustable. |
|||||||
Refresh rate |
1000Hz |
|||||||
Communication distance |
common distance 100M(Fiber optic transmission 15000M) |
|||||||
Displaying color |
16.7Million |
|||||||
Displaying mode |
Synchronous with PC |
|||||||
Life span |
≥80000h |
|||||||
Operation temperature and humidity |
-20°C~+45°C,10%~95% |
|||||||
Operation voltage |
110-220V±10% |
|||||||
why choose our product?
1.Long time experience,5 years of experience in LEDs encapsulation, and 11year R&D production experience in LED full color display screen.
2.All of our products with CE/FCC/CCC and RoHS approved,as well as the ISO
9001:2008 quality systerm certification.
3.We have the world's most advanced automatic LED packaging production
equipment and strict assembly test line.

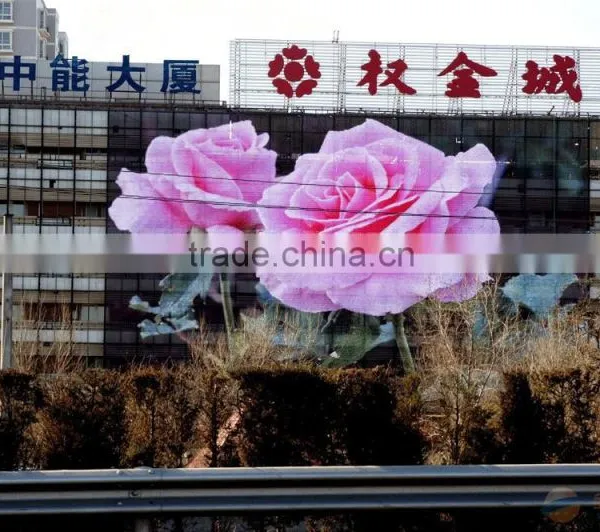

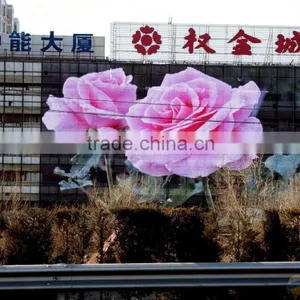

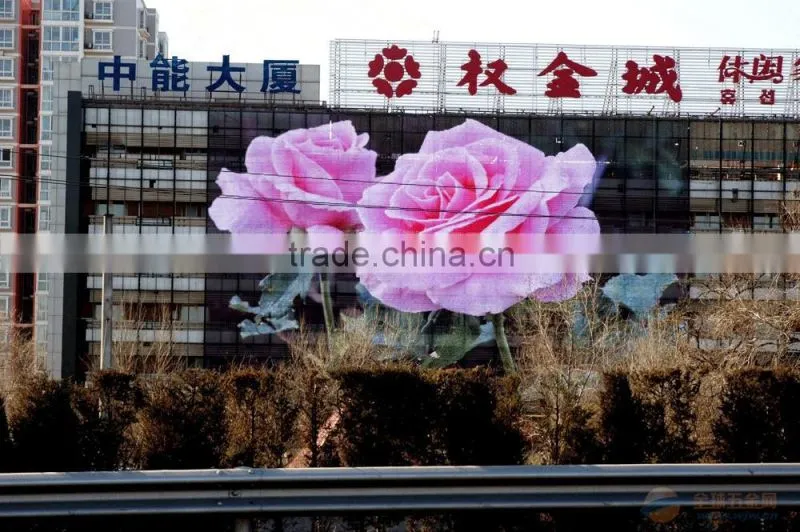

Successful cases
Exhibition
Packaging & shipping
We can be available varirties of commercial led displays /stage led screen/video led display /stadium led display board/flexible rental dispay,ect.
1. LED ticker/signage/message board/Digital scoreboard: Single/Dual-color, High quality, Low consumption,
2. LED Mesh screen/LED curtain/LED stage display: 10% transparency,5kg Aluminium cabinet,rental usage,
3. LED mobile truck display/street pole banner: Best view angle,good visual effect,3G cluster management,
4. LED Stadium screen/Perimeter LED screen: High brightness,Soft mask,ADs Synchronous display,
5. Taxi top screen/Bus/Railway display: Double-sided design,easy assembly,3G/WIFI/GPS remote control,
6. Floor standing Advertising player: Iron Cabinet,waterproof Tempered Glass,customized size(42/55/58/65''),
7. HD LED display screen: 5kg Aluminium Plate,30w consumption,3800HZ refresh rate,10000 hours Life span.
What we can do:
1. All of our products have been aging before shipment and we guarantee to use our products safely.
2. Support prints your logo on products and let your logo shine anywhere.
3. OEM/ODM orders are warmly welcome.
Warranty policy:
1. All products and accessories have been tested before ship out.
2. All products have 2 years warranty.
3. We own the best after-sale service. If any problems happen, our team will do our best to solve for customers.
