DLC803SB2 platform weighing scale, feeding scale load cell
|

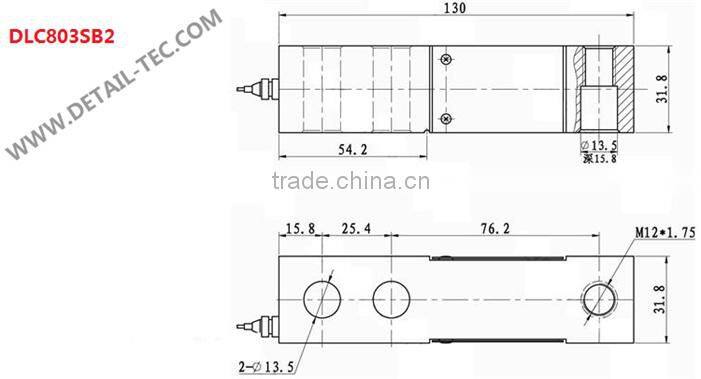

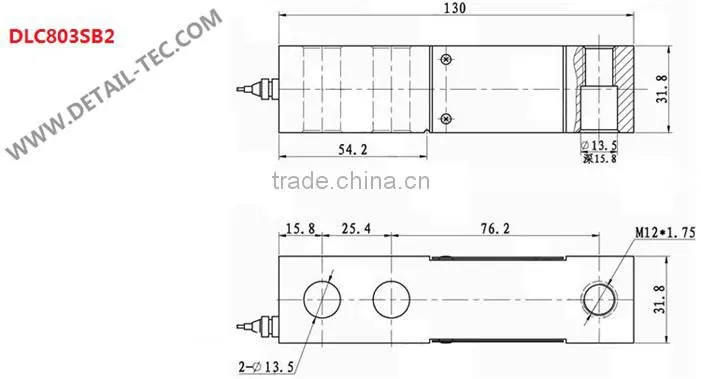

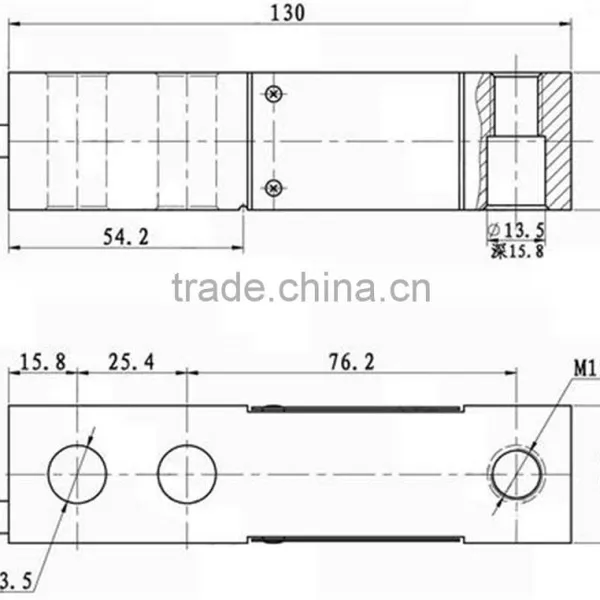

Model: DLC803SB2 Category: shear beam load cell Range: 50kg~300kg Dimension: 130*31.8*31.8mm Material: Alloy steel,stainless steel Application: platform scale, feeding scale, belt scale, forklift scale, packing scale, blending scale,industry weighing Characteristic: platform scale load cell, forklift scale weighing sensor | |||
|
REF PIC | |||
Specification | |||
comprehensive error: |
0.02%FS |
output resistance: |
350±10Ω |
Rated output: |
2±0.02mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.03%FS |
compensated temp: |
-10~+40ºC |
Repeatability: |
0.02%FS |
use temperature: |
-20~+55ºC |
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.02%FS/10ºC |
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
Input resistance: |
350±10Ω |
defend grade: |
IP66 |
Related Products: http://detail-tec.en.china.cn/productgrouplist-801544736/shearing_beam_load_cell.html
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
Welcome to the workshop
Testing Machine:
