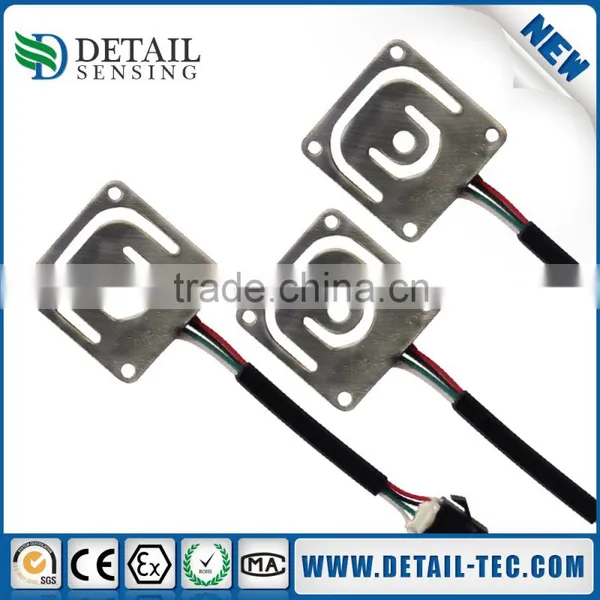

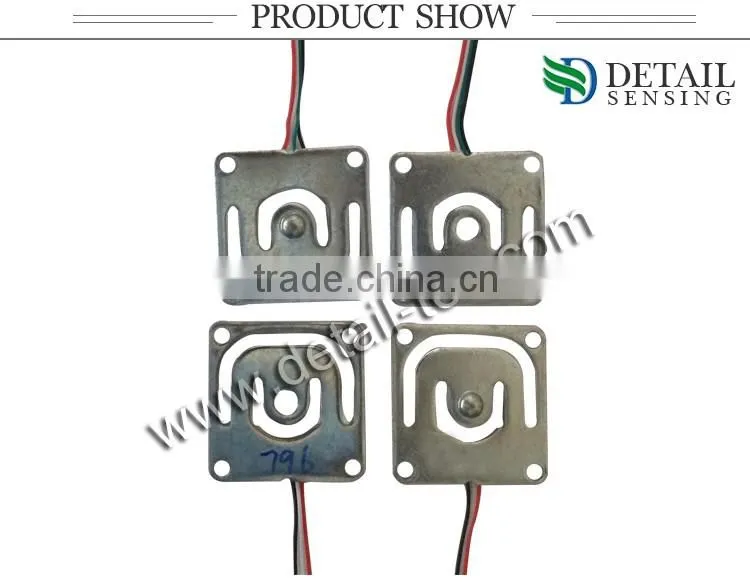

DLC928DA Micro Hand Scales Load cell 5kg
Features:
Model: DLC928DA
Category: mini load cell
Range: 10KG,30KG,50KG,75KG

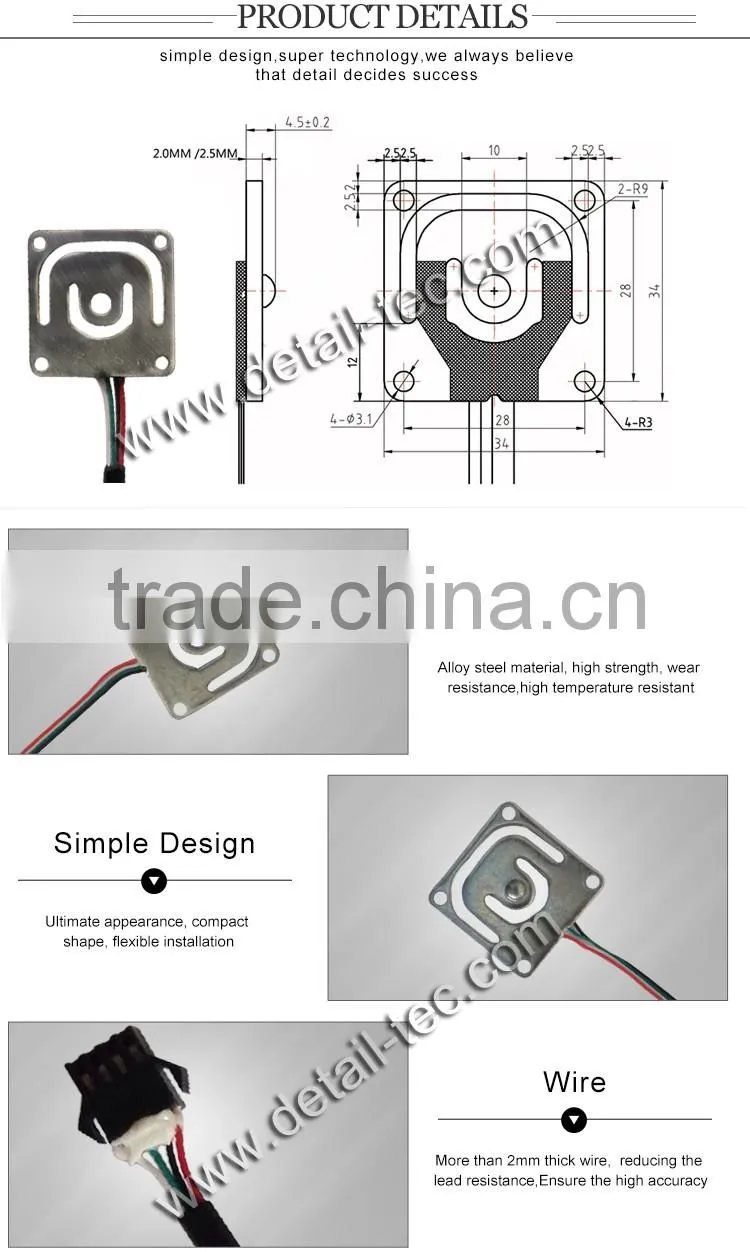

Dimension: 34*34*2.5mm
Material: alloy steel
Application: handle scale,kitchen scale,micro-fore test equipment
Characteristic: small platform scale load cell , micro force sensor
Specification | |||
comprehensive error: |
0.05%FS |
output resistance: |
1000±10Ω |
Rated output-FULL BRIDGE: |
1.6±0.2mv/v (50kg) 1.6±0.2mv/v (30kg) 1.0±0.2mv/v (10kg) |
Input resistance: |
1000±10Ω |
Rated output-HALF BRIDGE: |
0.8±0.15mv/v |
Insulation resistance: |
≥2000MΩ(100VDC) |
Non-linearity: |
0.05%FS |
Excitation voltage: |
3~10VDC |
Hysteresis: |
0.05%FS |
use temperature: |
-10~+40ºC |
Repeatability: |
0.05%FS |
temp effect on zero: |
0.1%FS/10ºC |
Creep: |
0.05%FS/10MIN |
Temp effect on span: |
0.1%FS/10ºC |
Zero balance: |
±0.3mv/v |
defend grade: |
IP66 |
|
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely!
We will reply you within 24 hours.
Mobile: 86-18932421732
Email: dita_chen(at)
skype: manyyear_loadcell
QQ: 22141886
Price,Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
