Home > Consumer Electronics > LED Display > Indoor LED Display > Bestsellers P20 Full Color Flexible Mesh LED Screen

Bestsellers P20 Full Color Flexible Mesh LED Screen

US$ 499 - 2,499 MOQ: 1 Square Meter

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ccy

Model Number:

Creaking-OFP20

Contact Supplier Request Quote Chat Now

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ccy

Model Number Creaking-OFP20

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 20mm

Screen Dimension Custom size

Specifications

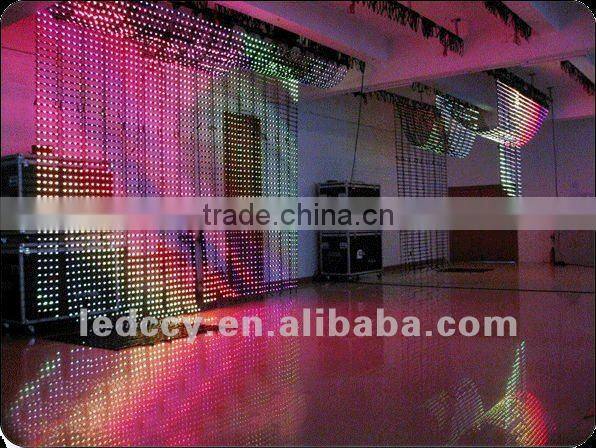

P20 flexible mesh LED Screen
Waterproof Mesh LED Screen
Professional manufacture flexible led screen

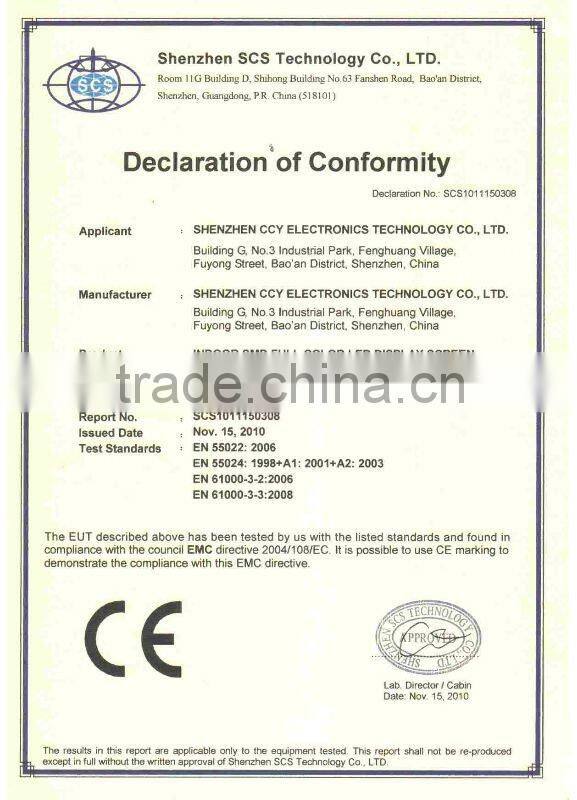

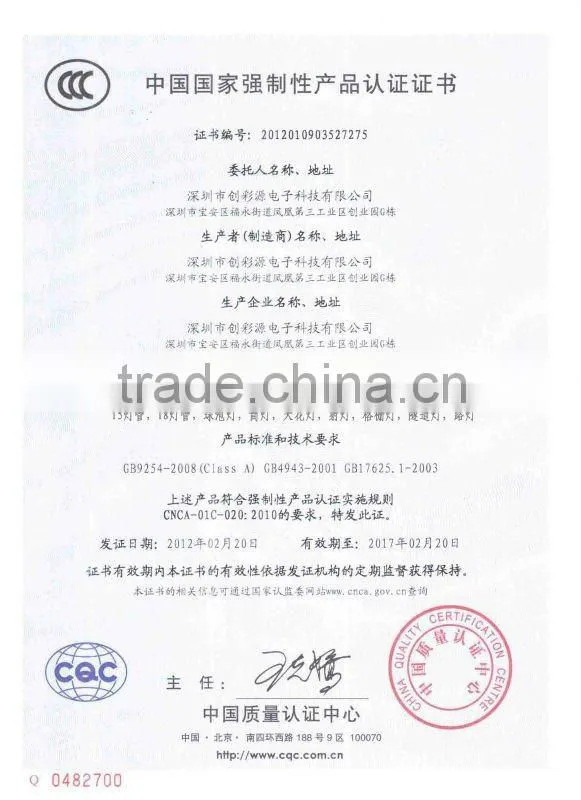

With CE,ROHS,ISO9001

Full color Flexible Mesh LED Screen Feateres:

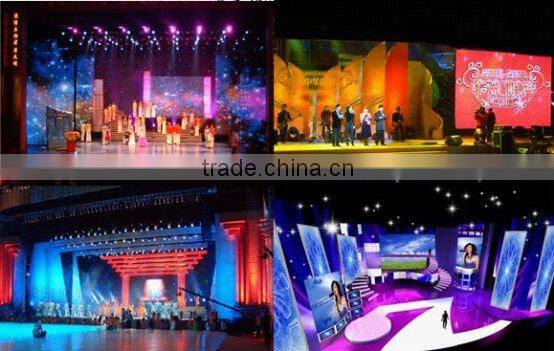

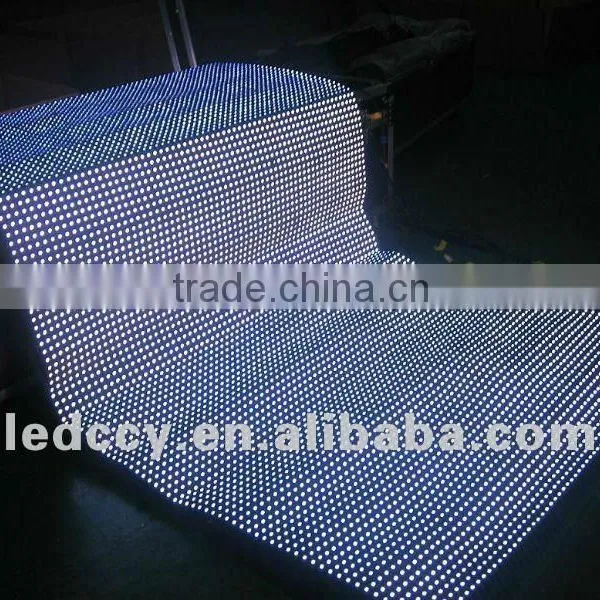

Outdoor Full color Flexible Mesh LED Screen enjoys unique and incomparable advantages for outdoor purposes, which is leading a revolution of outdoor media applications. It features as high transparency, high brightness, very light weight and thin, low power consumption, easy and fast assembly and disassembly, good wind-proof, water-proof, more flexible shapes available, etc., bigger viewing angle, which is much favored in many applications, such as concert, outdoor advertising, show, event, rental business, etc.

More details about Outdoor Full color Flexible Mesh LED Screen please contact me.

P20MM Outdoor Waterproof Full color Flexible Mesh LED Screen Technical parametres:

Pixel pitch	20mm
Size of module	320mmx160mm
Density of pixel	2500dots per sqm
Pixel constitution	2R1G1B
LED Encapsulation	DIP546
Resolution of Module	16*8
Power Consumption of Module	≤42W
Maximum power consumption	900W/sqm
The Optimum Viewing Distance	25-66m
Driving IC	MBI5024/ MBI5041
Material	Iron/ Aluminum
Size of cabinet	1280mmx960mm
Resolution of Cabinet	64*48
Driving method	Static
Power supply Brand	Meanwell
Control system	Linsn/ZDEC/DBstar
Refresh rate	≥800Hz(Linsn) ≥1920Hz(ZDEC)
Frame Frequency	≥60Hz
Luminance of white balance	≥6000 cd/m2
Working environment temperature	below 30°C~60°C
Working Voltage	220V±10% or 110V±10%
Grey Scale	Each color≥16384 grace
Brightness Adjustment	256 levels of each color automatically, 100 levels of each color manually.
Input signal	RF, S Video, HDMI, DVI etc.
Mean Time Between Failure	>5000 hrs
Life Span	>100000 hrs
Out-of-control Rate	<0.0001
Transmission Distance	Within 100m,network transmission is applied;If a relay is added, then 100m longer. Optical fiber transmission:single mode fibre≤15KM, multimode fiber≤500m

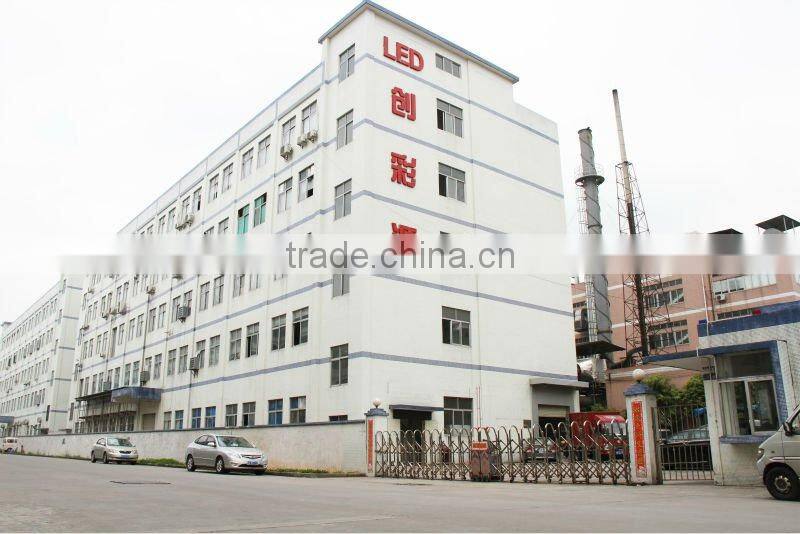

Shenzhen CCY is one of the leading OEM/ODM factory specializes in manufacturing Indoor and outdoor Full color LED displays for custom sizes. We export our products, and also did large quantity of projects in mainland China.

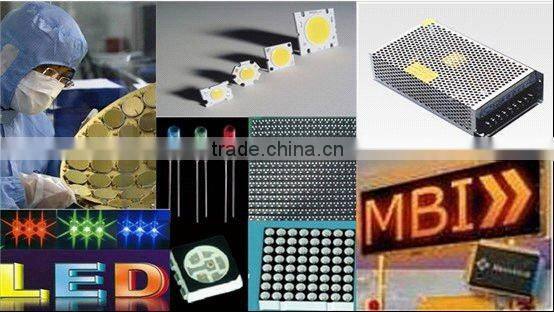

Shenzhen CCY form a longterm strategic partnership with well known brands such as American Cree,Taiwan Epistar,Chuanglian,Macroblock and so on.

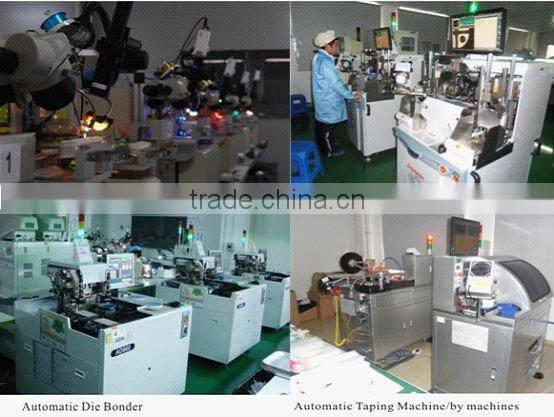

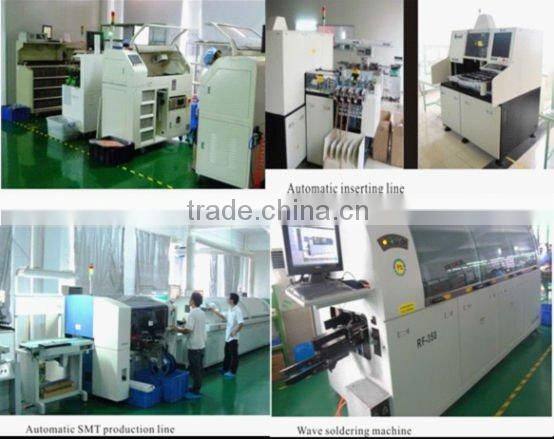

The company boasts the world-class cutting-edge LED manufacturing equipments,automatic die bonders,wire bonders,reflow and wave soldering machines,automatic spectrum and color separation machines,and has built 6 fully automatic packaging lines and anumber of other assembly lines.All these equipments and lines have laid the foundation for the improvement of the production delivery of products as well as customers' satisfaction.

We can guarantee the following advantages for customers:

1. We do the LED encapsulation by us own,quality is strictly controlled, and prices are very competitive.

2. We are professional and only concentrate on indoor and outdoor LED displays.

3. Fast and on time delivery. With Automatic machines and well-trained workers, our delivery is always on time.

4. After-sales service. Our after-sales engineers ,who have been working in LED field for more than 8 years, are experienced and responsible to provide consultation and after-sales maintenance service .
