Home > Consumer Electronics > LED Display > Indoor LED Display > Smd p5 Stage Indoor Led Panel Display China

Smd p5 Stage Indoor Led Panel Display China

US$ 1,000 - 1,800 MOQ: 5 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

MHG

Model Number:

PH6

Contact Supplier Request Quote Chat Now

Hunan Minghe Opto Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Changsha or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name MHG

Model Number PH6

Usage Indoor

Tube Chip Color Other, Full Color, full color

Display Function Video

Pixels Other, 5mm

Screen Dimension 500*250mm

Product Description

Specific parameter

Size	57657665mm
Weight	12kg/tile
Pixel Pitch	5mm
scan	1/15 scan
Luminosity	1800cd/m²
Resolution	90*90pixel/tile
Power Consumption	≤800W/m²(max) ≤400W/m²(ave)
Power for Cabinet	≤162W/m²(max) ≤81W/m²(ave)
Pixel Confuguration	1R1G1B(3528 SMD)
Date Refresh Rate	840HZ
Visual Angle	120°/120°(H/V)
Processing Depth	12bit
Power Supply	AC 176-260,50Hz or 60Hz
Working Voltage	DC 5V
Ambient Temperature	‘-20~+70°C
Relative Humidity	10%~90%RH
Out of Control Rate	<0.00003
Average no failure time	>10000hours
Life- span	>100000hours

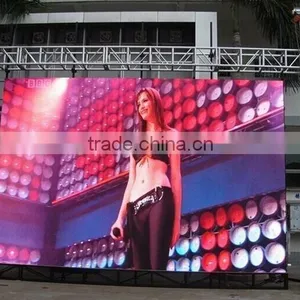

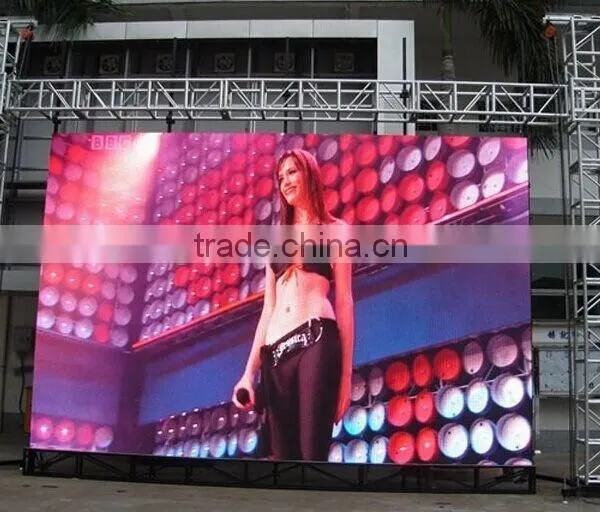

Application case

Packaging & Shipping

Company Information

Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 produce lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.

And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.

LED display workshop

<img

Certifications

FAQ

Q1:How would I do when something was wrong with the led display screen?

A1:Professional engineers would offer onsite maintenance to your country.

Q2:How would I select LED screen that I need?

A2:The lower Pixel pitch,the more density,the more clear,the more expensive as well.

Q3:Where LED screen can be applied?

A3:It is seen everywhere in your life.Billboard,Shopping Mall advertising;bank queue system,taxi top board ,stage background display and more

Pre-sale service:

1. Reply enquiries in 24 hours.

2. Market research and forecast for customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Data sheet and samples offer.

5. Other services, such as special packing design, factory visiting and so on.

In-sale service:

1. Tracking report in producing.

2. Quality test report for every order.

3. Photos and videos as per customer's requirement.

4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.

LED Display Workshop
