DLC130 truck scale, floor scale load cell
|
Model: DLC130 Category: Bridge Load Cell Range: 25t, 40t, 50t, 60t, 75t, 100t, 125t Dimension: 210*64*51/292*76*51/368*99*74mm Material:Alloy steel,stainless steel Application: truck scale, axle scale, floor scale Characteristic: floor scale load cell, axle scale load cell | |||||||||||
|

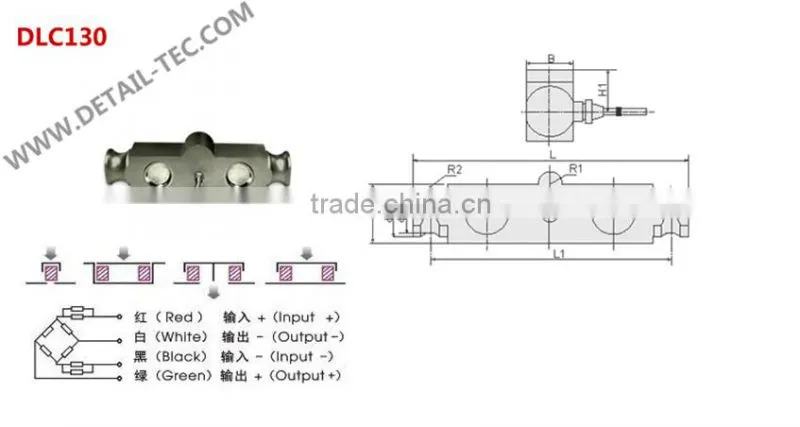

REF PIC | |||||||||||
other dimsion | |||||||||||
KLB |
L |
L1 |
B |
H |
H1 |
D1 |
D2 |
R1 |
R2 |
||
25~50 |
209.5 |
184.2 |
51 |
51 |
64 |
50.8 |
41.4 |
12,7 |
12.7 |
||
60~75 |
292.1 |
254 |
51 |
63 |
76 |
56 |
43.2 |
25.4 |
19 |
||
100 |
368.3 |
317.5 |
73.7 |
78 |
99 |
81.3 |
62 |
38.1 |
25.4 |
||
Specification | |||||||||||
comprehensive error: |
0.2%FS |
output resistance: |
350±5Ω/700±5Ω |
||||||||
Rated output: |
2±0.05mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||
Non-linearity: |
0.2%FS |
Excitation voltage: |
9~12VDC |
||||||||
Hysteresis: |
0.1%FS |
compensated temp: |
-10~+40℃ |
||||||||
Repeatability: |
0.05%FS |
use temperature: |
-35~+65℃ |
||||||||
Creep: |
0.05%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
||||||||
Input resistance: |
350±5Ω/700±5Ω |
defend grade: |
IP66 & IP68 |
||||||||
APPLICATION:
Why you choose our company?
* We have competitive price and good quality in load cell, Pressure Transmitter, Pressure Transducer,
Temperature Sensor, Pressure Control Instrument, Temperature Control Instrument and Weight Control
Instrument.
* We believe that the price of our products are reasonable,we guarantee the quality and ensure After-sale
service of our products .
*If you are interested in any products,please contact us freely,we hope to cooperate with you,we will try
our best to provide our perfect service to you.

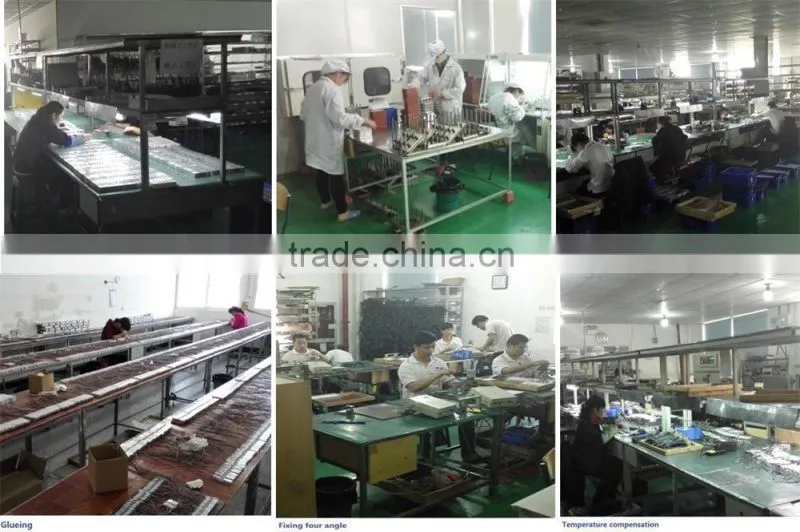

Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
