DLC142 Elevator Overload, Lifting Weight Limiter Load Cell

Name: DLC142 Elevator Overload, Lifting Weight Limiter Load Cell
Brand: DETAIL
SKU: 106807021

US$ 25 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

DETAIL

Model Number:

DLC142

Hunan Detail Sensing Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen GuangZhou ChangSha

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name DETAIL

Model Number DLC142

Type Other

Power Supply 9-36VDC

Accuracy 0.1%FS

Product Description

DLC142 elevator overload, lifting weight limiter load cell

Model: DLC142 Category: Bridge load cell Range: 0.5t, 1t, 1.5, 2t, 5t Dimension: 100289mm Material: Alloy steel,stainless steel Application: Elevator overload, Lifting weight limiter Characteristic: Elevator overload load cell, tension test
Features: Sensor designed to evaluate and measure the micro-deformations on a metallic structure. • Optimal operation to traction. • Calibrated in the factory. • Fast and easy installation. • Ideal to measure the beam that works on traction or flexion. • Manufactured in alloy steel with anti-corrosion treatment. • Effort supervision on the metallic structure. • Load limitation in the elevation system like Elevators, Freight lifts, Cranes,… • To measure the level of silos, hoppers, chutes and others..

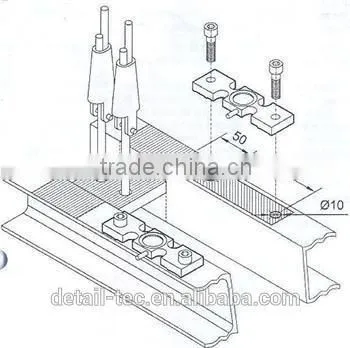

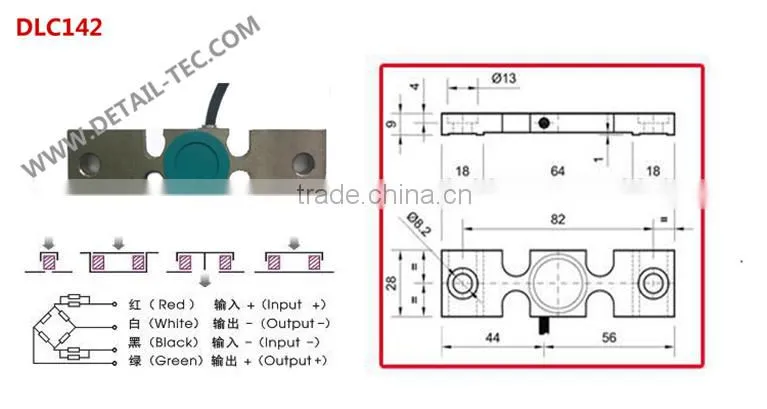

REF PIC
Parameters
comprehensive error:	0.1%FS	output resistance:	520±10Ω
Rated output:	2.0±0.01mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.1%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.1%FS	compensated temp:	-10~+40℃
Repeatability:	0.1%FS	use temperature:	-20~+60℃
Creep:	0.02%FS/10MIN	temp effect on zero:	0.1%FS/10℃
Zero balance:	±1%FS	Temp effect on span:	0.1%FS/10℃
Input resistance:	510±10Ω	defend grade:	IP65
