DLC116 Steel Embody Scale, Compression Measurement Load Cell

DLC116 Steel Embody Scale, Compression Measurement Load Cell thumbnail-1
DLC116 Steel Embody Scale, Compression Measurement Load Cell photo-1
US$ 1,000 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
DETAIL
Model Number:
DLC116
Contact Supplier Request Quote Chat Now
Hunan Detail Sensing Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen GuangZhou ChangSha
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name DETAIL
Model Number DLC116
Type Other
Power Supply 9-36VDC
Accuracy 0.1%FS
Product Description



DLC116 steel embody scale, compression measurement load cell



Model: DLC116

Category: Bridge Load Cell

Range: 50t, 100t, 150t, 200t

Dimension: 450*120*130/500*140*143/560*160*158/620*180*175mm

Material:Alloy steel,stainless steel

Application: compression measurement, Steel embody scale

Characteristic: high temperature load cell, Steel embody scale sensor

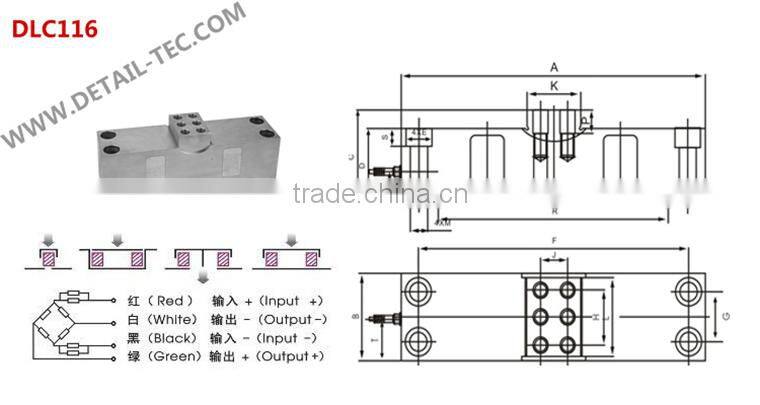

REF PIC

other dimsion

Load

A

B

C

D

E

F

G

H

J

K

L

M

N

P

Q

R

S

T

50

450

120

130

105

D38

398

68

75

40

80

110

D26

M20/30

32

45

340

25.5

57

100

500

140

143

118

D44

444

80

90

44

90

130

D30

M24/36

38

54

370

28.5

62

150

560

160

158

133

D48

500

94

102

44

90

150

D33

M24/36

38

66

410

32

69

200

620

180

175

150

D48

560

114

110

44

90

160

D33

M24/40

40

75

450

32

76

Specification

comprehensive error:

0.1%FS

output resistance:

702±5Ω

Rated output:

2±0.005mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05%FS

compensated temp:

-10~+40℃

Repeatability:

0.03%FS

use temperature:

-20~+55℃

Creep:

0.03%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

750±10Ω

defend grade:

IP66 & IP68

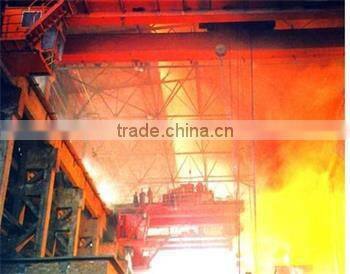

APPLICATION:



Packaging & Shipping



Price, Package and Service



1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-7 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 1 year free repair for quality warranty



Company Information



Welcome to the workshop

 DLC116 steel embody scale, compression measurement load cell



FAQ



Q1:Can I have a sample for testing?

A: Yes, you can have samples from us.

    The cost of samples will be higher than the cargo.

Q2:How can I get the after-service?

A:We will send you the spare parts by free if the problems caused by us.

    If it is the men-made problems,we also send the spare parts,but you should pay.

Q3:Do you have inspection procedures for all load cells?

A:100% self-inspection before packing.

I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.

We will reply you within 24 hours.

DLC116 steel embody scale, compression measurement load cell
