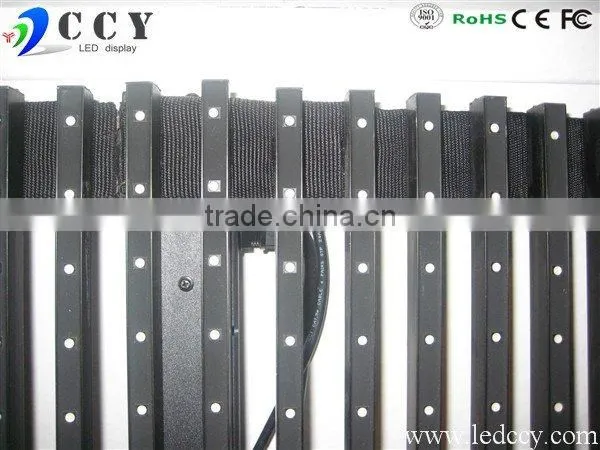

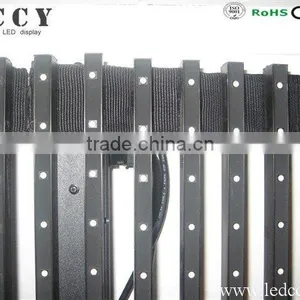

SMD Type LED Curtain Screen Foddering Type
Specifications
LED strip screen, LED curtain display 5050 SMD TypeFull color animation
High brightness
Low power consumption.
SMD Type LED Curtain Screen Foddering Type
(1)Construction Description | ||||||
|
Each pixel contain 1 red 1 pure green 1 pure blue 3 in 1 SMD 5050 Pitch25mm , resolution 1600pixels/ m² | ||||||
(2)Professional analysis | ||||||
No. |
Professional analysis content |
Analysis item |
||||
1 |
Color matching analysis |
In order to make the color matching reach the best white balance effect,the color matching rate of different color brightness is R:G:B/3:6:1 |
||||
(3)Pixel Parameter | ||||||
No. |
Item |
Parameter |
||||
1 |
Pixel pitch |
PH25 mm |
||||
2 |
Pixel configuration |
1R 1PG 1PB |
||||
(4)LED Parameter | ||||||
No. |
SMD LED |
Wavelength |
Brightness
|
Chips |
||
1 |
Red |
620-625nm |
420mcd
|
Nichia/Cree/Opto |
||
2 |
Pure Green |
525-530nm |
1650mcd |
Nichia/Cree/Silan |
||
3 |
Pure Blue |
465-470nm |
750mcd |
Nichia/Cree/Silan |
||
(5)Screen Body Technical Parameter | ||||||
1 |
Unit Cabinet Size |
400mm(W)*400mm(H) 16*16 pixels |
||||
2 |
Display brightness |
≥4000cd/ m² |
||||
3 |
Brightness adjustment |
256 grade automatic, 8 grade manual |
||||
4 |
Drive Mode |
Static |
||||
5 |
Driving IC |
MBI5026 |
||||
6 |
View Angle |
115/115 degrees(level/vertical view angle) |
||||
7 |
View Distance |
20-400 meters |
||||
8 |
Grey Scale |
256 grades |
||||
9 |
Display Colors |
1.073M |
||||
10 |
Frame rate |
60 Hz/s |
||||
11 |
Refresh rate |
400Hz/s(Guarantee that the picture will not tingle when the pick up camera is kinescoping) |
||||
12 |
Control Mode |
To be synchronized with computer monitor |
||||
13 |
Data Transmission |
Parallel RS422 mode |
||||
14 |
Screen Lifespan |
>100000 hours |
||||
15 |
Blind Spot Rate |
≤0.0001 |
||||
16 |
Screen Power Consumption |
Max: 250w/ m²,Average:100w/ m² |
||||
18 |
Color Temperature |
6500K±500 |
||||
19 |
Screen body weight |
≤ 3KGS/ m² |
||||
20 |
Control Distance |
120 meters(without relay)(optical fiber transmission 500M-10000M) |
||||
21 |
System Working Temperature |
-20°c~+60°c |
||||
22 |
System Working environment humidity |
10%—90%RH |
||||
23 |
System Operating Platform |
WINDOWS(WIN98,WIN2000, WIN XP)friendly interface, Keep the interface for the secondary development |
||||
24 |
Operating Voltage |
AC100V±240V 50~60HZ |
||||
