DLC913C body scale load cell, bathroom scale load cell
|
Model: DLC913C Category: micro load cell Range: 50kg Dimension: 31.5*24.6*4.5mm Material: alloy steel Application: body scale, bathroom scale,personal scale Characteristic: body scale weight sensor, personal scale weight sensor | |||
|

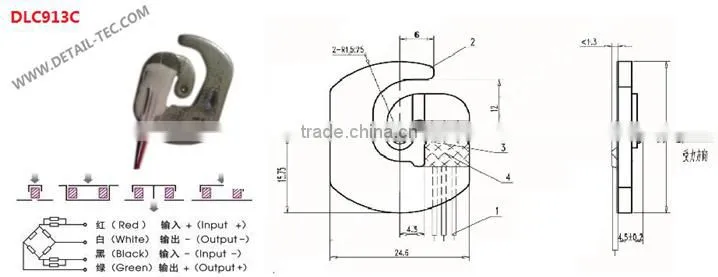

REF PIC | |||
Specification | |||
comprehensive error: |
0.2%FS |
output resistance: |
1000±10Ω |
Rated output: |
1.0±0.15mv/v |
Insulation resistance: |
≥2000MΩ(100VDC) |
Non-linearity: |
0.2%FS |
Excitation voltage: |
5~10VDC |
Hysteresis: |
0.2%FS |
compensated temp: |
-10~+40ºC |
Repeatability: |
0.2%FS |
use temperature: |
-20~+55ºC |
Creep: |
0.2%FS/10MIN |
temp effect on zero: |
0.2%FS/10ºC |
Zero balance: |
1±0.1%FS |
Temp effect on span: |
0.2%FS/10ºC |
Input resistance: |
1090±10Ω |
defend grade: |
IP66 |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

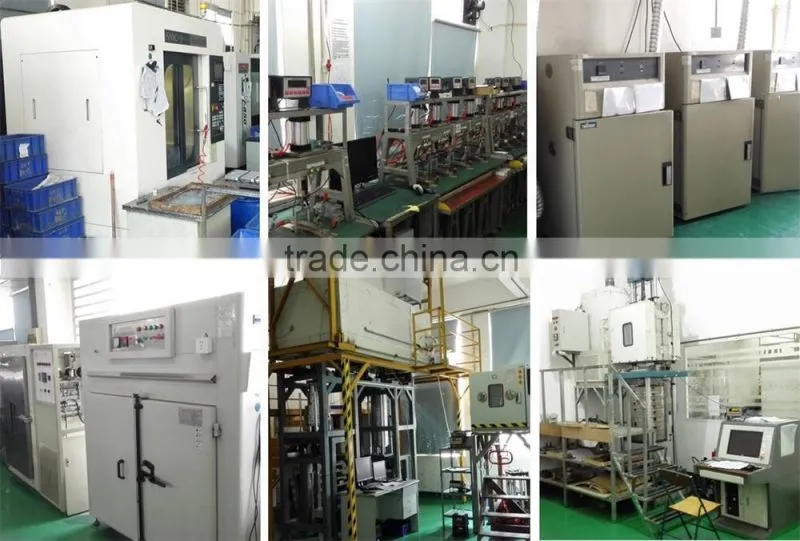

Welcome to the workshop
TESTING MACHINE
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
