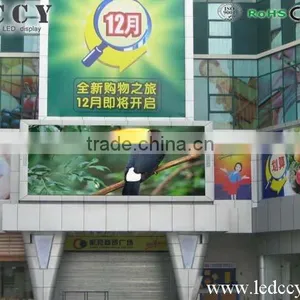

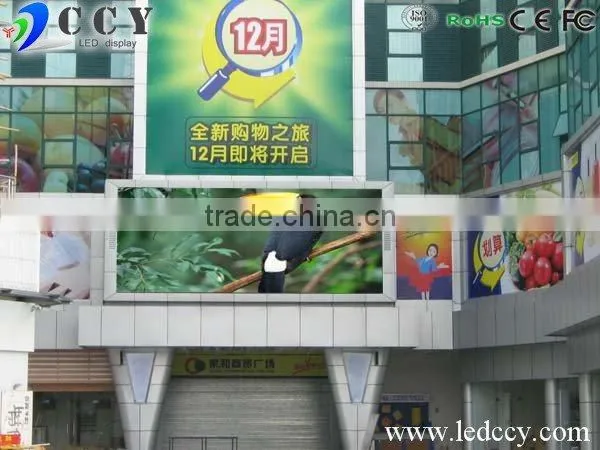

Best Electronic LED Display Board

US$ 2,000 - 4,500 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCY

Model Number:

OF-P10

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCY

Model Number OF-P10

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, PH10mm

Specifications

1. Easy taking for construction
2. Full color vivid advertising video
3. High brightness
4. Low power consumption

BEST SOld CHINA LED DISPLAY SPEC.

1	Screen Density	Real pixels:10000/m²
2	Cabinet size:	800mm(W)x960mm(H)x180mm(D)
3	Unit module size	160mm x 160mm 16*16 pixels
4	Display brightness	≥5500cd/ m²
5	Brightness adjustment	256 grade automatic, 8 grade manual
6	Drive Mode	1/4 duty
7	Driving IC	MBI5026
8	View Angle	110/55 degrees(level/vertical view angle)
9	View Distance	8-150 meters
10	Grey Scale	256 grades
11	Display Colors	16.7M
12	Frame rate	60 Hz/s
13	Refresh rate	400Hz/s(Guarantee that the picture will not tingle when the pick up camera is kinescoping)
14	Control Mode	To be synchronized with computer monitor
15	Data Transmission	Parallel RS422 mode
16	Screen Lifespan	>100000 hours
18	Blind Spot Rate	≤0.0002
19	Screen Power Consumption	Max: 900w/m²,Average:350w/m²
20	Color Temperature	6500K±500
21	Screen body weight	≤ 60KG/m²
22	Control Distance	120 meters(without relay)(optical fiber transmission 500M-10000M)
23	System Working Temperature	-20 degree~+60 degree
24	System Working environment humidity	10%—95%RH
25	System Operating Platform	WINDOWS(WIN98,WIN2000, WIN XP)friendly interface, Keep the interface for the secondary development
26	Operating Voltage	AC100V±240V 50~60HZ

1	Screen Density	Real pixels:10000/m²
2	Cabinet size:	800mm(W)x960mm(H)x180mm(D)
3	Unit module size	160mm x 160mm 16*16 pixels
4	Display brightness	≥5500cd/ m²
5	Brightness adjustment	256 grade automatic, 8 grade manual
6	Drive Mode	1/4 duty
7	Driving IC	MBI5026
8	View Angle	110/55 degrees(level/vertical view angle)
9	View Distance	8-150 meters
10	Grey Scale	256 grades
11	Display Colors	16.7M
12	Frame rate	60 Hz/s
13	Refresh rate	400Hz/s(Guarantee that the picture will not tingle when the pick up camera is kinescoping)
14	Control Mode	To be synchronized with computer monitor
15	Data Transmission	Parallel RS422 mode
16	Screen Lifespan	>100000 hours
18	Blind Spot Rate	≤0.0002
19	Screen Power Consumption	Max: 900w/M²,Average:350w/M²
20	Color Temperature	6500K±500
21	Screen body weight	≤ 60KG/ M²
22	Control Distance	120 meters(without relay)(optical fiber transmission 500M-10000M)
23	System Working Temperature	-20°c~+60°c
24	System Working environment humidity	10%—95%RH
25	System Operating Platform	WINDOWS(WIN98,WIN2000, WIN XP)friendly interface, Keep the interface for the secondary development
26	Operating Voltage	AC100V±240V 50~60HZ
