Led Billborad

US$ 500 - 2,000 MOQ: 2 Square Meters

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCY

Model Number:

p16

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCY

Model Number p16

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 16mm

Specifications

led billborad
p16 led billborad
1-virtual display screen
2-gold after-service
3-ccc rohs fcc ce ul

led billborad

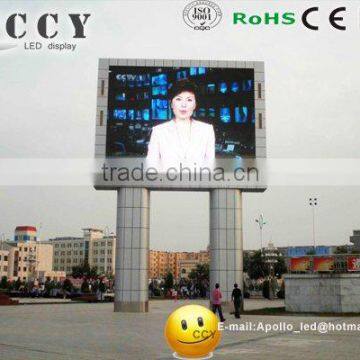

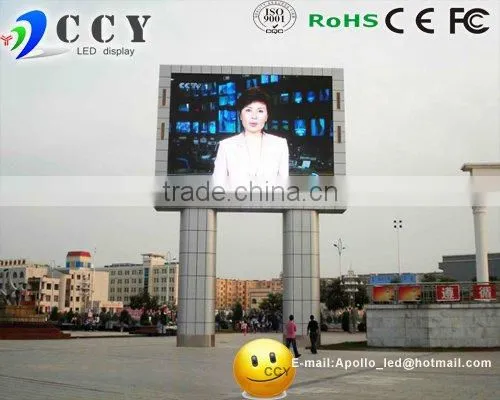

p16 outdoor led billboard/ real pixel

outdoor full color series

CCY-of-p16

led billboard parameters

Product No.	P10	P12	P16	P20	P25
Physical pixel pitch	10mm	12mm	16mm	20mm	25mm
Virtual pixel pitch	5mm	6mm	8mm	10mm	12.5mm
Physical pixels per sqm	10000	6944	3906	2500	1600
Virtual pixels per sqm	10000*4	6944*4	3906*4	2500*4	1600*4
Pixel constitution	1R1PG1PB	2R1PG1PB	2R1PG1PB	2R1PG1PB	2R1PG1PB
Cabinet size	640 * 480mm	768 * 576mm	1024 * 768mm	1280 * 960mm	1000 * 800mm
Cabinet weight	25kg	35kg	55kg	70kg	50kg
Cabinet resolution	64 * 48pixels	64 * 48pixels	64 * 48pixels	64 * 48pixels	40 * 32pixels
Best viewing distance	10-150m	12-200	16-250	20-300	25-320
Max. power consumption	900W	650W	900W	670W	430W
Ave.power consumption	225W	160W	225W	160W	110W
Brightness	≥6000CD/m²	≥6000CD/m²	≥6800CD/m²	≥6500CD/m²	≥5500CD/m²
Driving method	1/2scan constant current driving		Static constant current
Best viewing angle	Horizontal: ≥140°; Vertical: ≥120°
Frame frequency	≥60Hz/s
Refresh rate	adjustable from 10Hz to 3000Hz
color	281 trillions
Input voltage	AC 110 or AC220 V ±10% ,50 to 60Hz
MTBF	10,000 hours
Life-span	100,000 hours
Ingress protection	Front IP65
Working environment	Temperature: -20°C-50°C; Humidity: 10%-90%RH
