P25 Outdoor Plaza Led Display

Specifications

P25 outdoor plaza led dislay
1)High brightness,greyscale,
2)Low voltage,power consumption
3)Reliable adverting led screen

P25 outdoor plaza led display



Specifications:

1. Pixel Pitch(mm)   25
2. Pixel Density(dots/m²)   1600
3. Pixel Composition  2R1PG1PB
4. Module Size(Lmm×Hmm)   400*200
5. Module Resolution(dots)   16*8
6. Cabinet Resolution(dots)  48*48
7. Brightness(cd/m²)  ≥4500
8. Viewing Angle(degree)  ≥110 degree(H), 70 degree(V)
9. Scan Mode  Static state  Constant Current
10. Max. Power Consumption(w/m²)  650W
11. Average Power Consumption (w/m²)  300W
12. Unit Cabinet Sizemm(Lmm×Hmm)  1200*1200
13. Gray Scale  Recommended 4096 level
14. Control Mode  Video frequency synchronization
15. Effective Communication Distance(without relay)
16. Unshielded Twisted-Pair net line transmission distance 100 meters, Optical fiber  15,000m
17. Refresh Frame Frequency   400Hz
18. MTBF  ≥10000Hours
19. Lifespan  ≥50000Hours
20. Protection Level   IP65(Front)/ IP54(Back)
21. Environment Temperature  -20 - +60 Celsius
22. Operation Environment Humidity 0.1 - 0.95RH

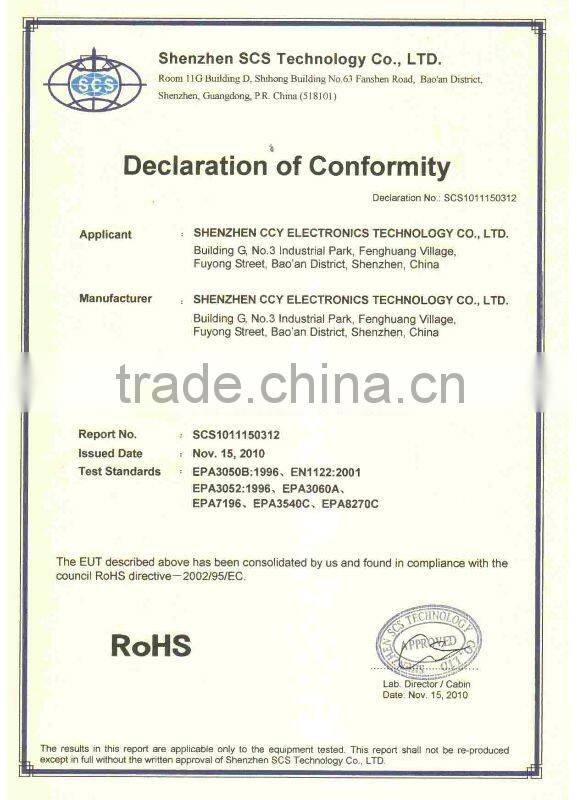

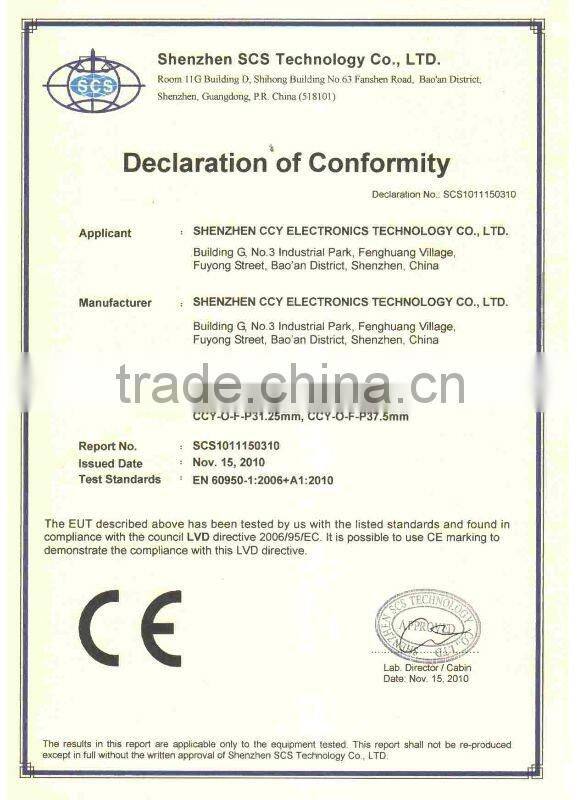

Certification:
