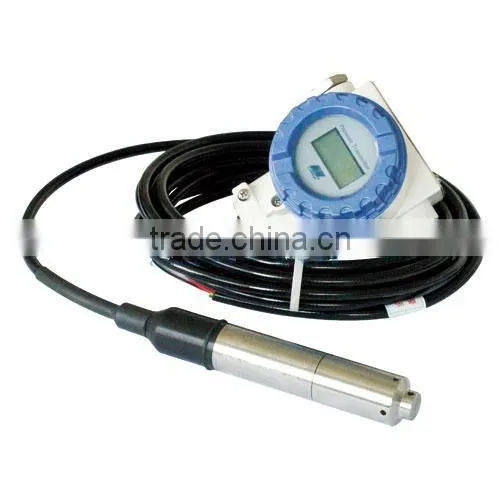

Help CenterJYB-KO-Y5 Input Static Pressure Level Transmitter(can Have Display)
Related Products
-
JS-HG Photoelectric Detector Water Immersion TransmitterNegotiableMOQ: 100 Pieces -
JWSKE-6 Enhanced Temperature & Humidity TransmitterNegotiableMOQ: 100 Pieces
-
KSD - Multi-Channel InstrumentationNegotiableMOQ: 100 Pieces
-
KSB - Weighing InstrumentationNegotiableMOQ: 100 Pieces
-
KSR - Recorder Instrumentation With TFT 5' DisplayNegotiableMOQ: 100 Pieces
Introduction:
This product is based on the principle that static pressure is in proportion to liquid height, uses the overseas advanced isolation diffused silicon sensitive element. it's esistance effect turn the static pressure to electrical signals, then it turns to be a standard electrical signals (usually 4 ~ 20 mA) after temperature compensation and the linear correction. JYB Level Pressure Transmitter is used for medium level measurement in petroleum chemical industry, metallurgy, electric power, pharmaceutical, water supply and drainage, environmental protection system , industry and so on. smart, simple adjustment and flexible installation is easily for user to use. User can choose 4 ~ 20 mA, 0 ~ 5V, 0 ~ 10 mA and standard signal output.
Characteristic:
Water plants, reservoirs, canals, Wells, pumping stations, water supply and drainage engineering
The pressure and oil level of oil fields, oil pool and oil tank
The Marine equipment
Geothermal, mine groundwater resource management
Parameters:
All stainless steel laser welding structure, multi-level waterproof protection, high water resistance
Special cable connection, corrosion, tensile and abrasion resistance
Anyrange within 0 ~ 1000 meters
The laser trimming resistor temperature compensation,wide use of temperature, high measurement accuracy
Over-voltage over-current reverse level circuit protection
Overload and shock resistance and strong anti-jamming capability
Lightning shock resistance ability
High reliability, long term stability is strong
| measuring range | any range within 0~300m, 0.5m is the smallest range |
| Power supply | DC 24V(12V~32V) |
| Output | 4mA~20mA 0mA~10mA 0V~5V |
| Load capacity |
current mode≤500Ω (DC 24V) voltage mode:≥3KΩ |
| accuracy class | grade 0.5 |
| grade 0.2 | |
| medium temperature | - 20℃~+70℃ |
| environment temperature | - 10℃~+60℃ |
| Response time | ≤ 50ms |
| Hysteresis and repeatability | ± 0.1%F.S |
| long-term stability | ± 0.1%F.S/y |
| nonlinear | ± 0.2%F.S |
| Thermal zero drift | ± 0.02%F.S/℃ |
| Over load pressure | two times of range |
| electrical connection | cable |
| Shell material | Ordinary stainless steel/316stainless steel |
| Measuring medium | oil, water, gas and other compatible with 316 stainless steel medium |
| IP grade | IP 68 |
Certified by: CE and ROHS.
Delivery time: 10-12 days after payment.
Payment by: L/C, T/T, Western Union, PAYPAL
We are professional manufacturer in the meters, we would like to offer you service on this field. we could make meters according your requests and your accuracy.
